Why a Drain Needs Air to Flow
A drain needs a vent because water running down a pipe leaves low pressure behind it, and air has to come in from somewhere to fill it. A vent lets that air in from outside; if there is no vent, or it is too far from the fixture, the low pressure pulls water out of the trap instead. Once the water seal in the trap is low, pressure swings in the drain can bubble sewer air back into the room. That is why the Florida plumbing code requires every trap to be vented and limits the pressure across a trap seal to 1 inch of water.
Why does a drain need a vent?
Because water leaving a fixture pulls the pressure down behind it, and the vent is what lets air in to make up the difference. When a sink, a tub or a washing machine empties, the water does not just run along the bottom of the pipe: near the end of the flow it can fill the whole cross-section of the drain at one or more points, and that plug of water produces a pressure drop upstream, toward the trap, which pulls water out of the trap [1].
The National Bureau of Standards (now NIST) documented this in a laboratory report published in 1951. Its engineers built parts of the test drains from transparent plastic so they could watch the flow, and filmed air being pulled through a clear trap [1].
The pressure in a drain swings both above and below the outside air pressure, and the report notes that drainage systems were ordinarily designed to keep those swings within about 1 inch of water [1]. A vent close to the trap lets air in, so the low side of that swing does not have to pull water out of the trap to balance.
How does a vent keep sewer smell out of the house?
By protecting the trap seal — the water that stays in the U-bend under every fixture after it drains. The trap exists to put that water between the sewer and the inside of the building, so sewer air cannot pass back [1]. The NBS report puts its normal depth at 2 to 4 inches and says that is enough to stop sewer air under any ordinary conditions [1].
The trouble starts when part of the seal is lost. The pressure swings caused by fixtures emptying into the system can then be great enough to bubble sewer air back through what is left [1]. So a vent does more than help water flow: it protects the water seal that keeps sewer air out of the room.
Can a sink pull the water out of its own trap?
Yes. The NBS report calls it self-siphonage: the seal of a trap is reduced by the discharge of the very fixture it serves [1].
It describes three ways it happens. The water in the trap has momentum and is carried out into the drain when the flow stops — more so the more abruptly it stops and the faster it was flowing. A plug of water in the drain pulls the pressure down behind it. And air bubbles, swallowed at the overflow and through the vortex in the basin, drag water with them as they rise through the trap [1].
Distance to the vent is only part of the story. The report found that the slope and the diameter of the pipe from the trap to the vent are fully as important as its length, alongside the trap’s dimensions, the type of vent fitting and how fast the fixture empties [1]. A steeper or narrower pipe loses more seal, and so does a bathroom sink with no overflow [1].
There is a reassuring finding too: the slow trickle at the end of a fixture’s flow, after the vortex forms, tends to refill the trap. Flat-bottomed fixtures such as sinks, laundry trays and bathtubs lose less seal than a round-bottomed lavatory, because their trickle lasts longer [1].
- Longer pipe between trap and vent → more seal loss [1]
- Steeper or narrower pipe → more seal loss; these matter as much as length [1]
- A fixture that empties fast and stops abruptly → more seal loss [1]
- A slow trickle at the end of the flow → tends to refill the trap [1]
Does every drain need a vent in Florida?
Every trap does. The Florida Building Code, Plumbing requires traps and trapped fixtures to be vented by one of the methods in its venting chapter, and it states the purpose in one sentence: the vent piping must let air in and out so that the seal of any trap is never subjected to a pressure difference of more than 1 inch of water column [2].
The vent does not have to be a separate pipe for each fixture. The same chapter allows individual vents, common vents shared by two fixtures, wet venting within bathroom groups and circuit venting, among other methods [2].
It then sets distances. Table 909.1 limits how far a trap may be from its vent: 5 feet for a 1¼-inch trap, 6 feet for 1½-inch and 8 feet for 2-inch, at ¼ inch per foot; 12 feet for 3-inch and 16 feet for 4-inch, at ⅛ inch per foot [2]. The total fall of that pipe may not exceed its own diameter [2] — the same concern about slope that the NBS tests raised [1].
Toilets are the exception, in both places. The NBS tests found that a water closet’s unvented drain length need not be limited because of self-siphonage, and the Florida code does not limit the distance from the trap of a self-siphoning fixture, such as a water closet, to its vent [1][2].
At least one vent in every plumbing system must run all the way outdoors [2]. An open vent through a roof has to end at least 6 inches above it, may not sit directly beneath a door, openable window or air intake, and may not be within 10 feet horizontally of one unless it is at least 3 feet above the top of the opening [2].
These rules come from the 8th edition (2023) of the code. The 9th edition (2026), which takes effect on December 31, 2026, keeps the same wording for the 1-inch rule, Table 909.1, the outdoor and roof-vent rules and the air admittance valve rules below [3].
Can an air admittance valve replace a roof vent?
Not for the whole house. The Florida code lets individual, branch and circuit vents end at an air admittance valve, and stack vents at a stack-type valve, but every plumbing system must still have at least one stack vent or vent stack that runs outdoors to open air [2].
The code defines the valve as one-way: it opens to let air into the drainage system when the pressure in the piping drops, and closes by gravity when there is no flow and under positive pressure, so sewer gas cannot escape into the building [4]. Individual and branch valves must meet ASSE 1051; stack-type valves must meet ASSE 1050 [2].
It also limits where they go. An individual or branch valve must sit at least 4 inches above the drain it vents and may vent only fixtures on the same floor that connect to a horizontal branch; every valve must stay accessible, must be where air can reach it, and may not be in a space used as a supply- or return-air plenum [2].
Because the valve closes under positive pressure [4], it can only let air in. It cannot let pressure out of the system — the open vent the code still requires lets air both in and out [2].
In our work, we fit one where a new pipe to the roof is impractical — an island sink, say, or a fixture moved in a remodel — and only where the code allows it.
What are the signs of a blocked or missing drain vent?
In our experience there are three: a sink that gurgles after it drains, a toilet whose bowl water drops when the tub or washer empties, and a smell that comes and goes with other fixtures running. These are patterns from our calls — trade experience, not findings from the sources above.
Each usually means a trap is losing seal to a vent that cannot keep up. A smell from a fixture nobody uses is more often evaporation — see our page on dry traps.
Vent pipes get blocked at the roof by debris and nests, and inside by the same buildup that narrows a drain. A washing machine is a common test: it dumps a lot of water quickly, and a poorly vented standpipe shows it first.
What this means in Tampa Bay
If you move a sink, a washer or a vanity in a remodel, its vent has to move with it: the trap in its new position still has to be within the Table 909.1 distance of a vent, or be served by an air admittance valve where the code allows one [2].
In our experience, remodels are where venting most often goes wrong around Tampa Bay. A kitchen island is moved, a laundry is relocated into the garage, a vanity is shifted across a bathroom — and the new drain is connected without the vent the old position had. It can drain fine on the day it is installed and gurgle once the house is back in daily use.

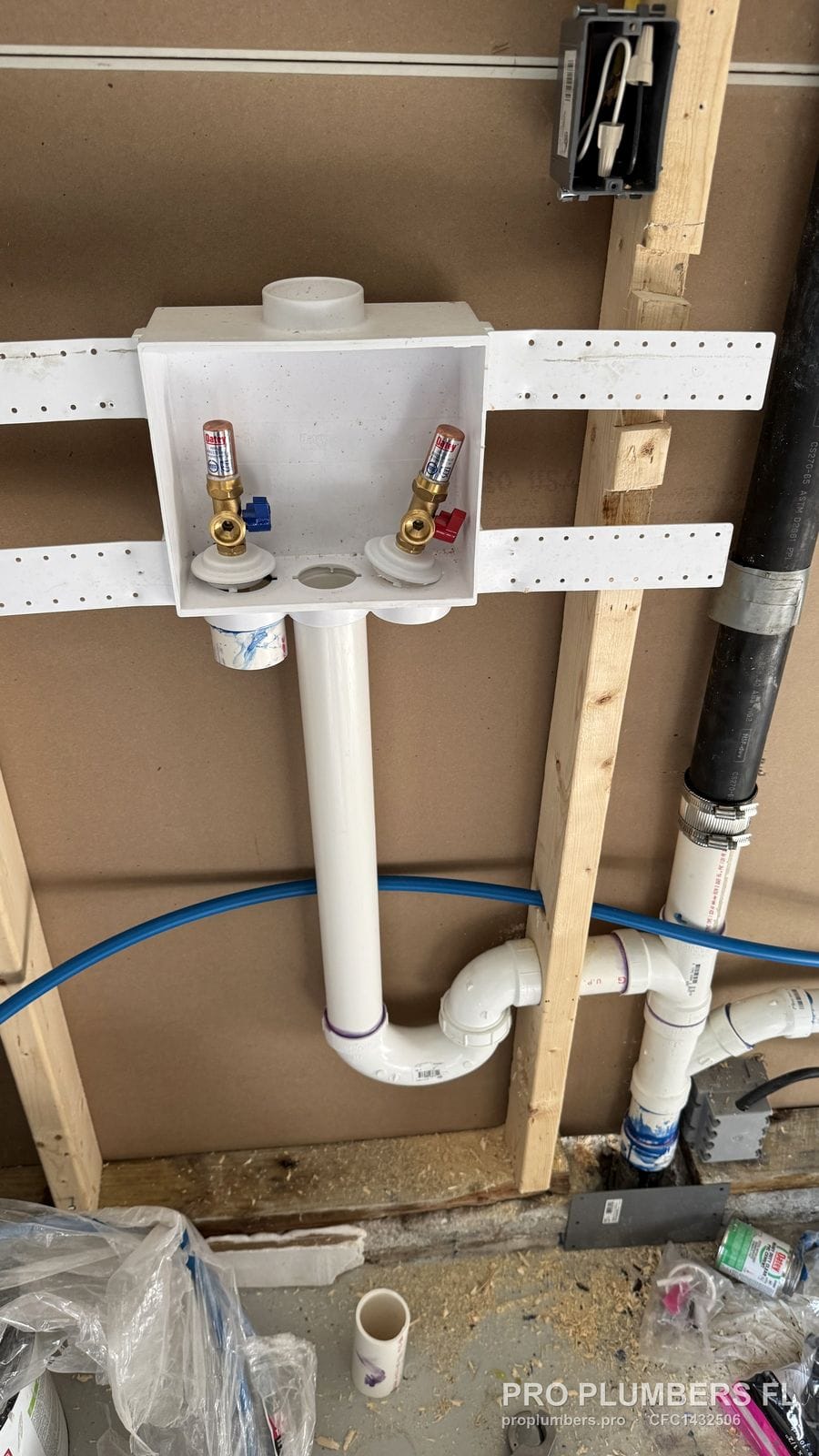

When we move a fixture, we move or add the vent within the Table 909.1 distances, or fit an air admittance valve where the code allows one. In an open wall, like the Hudson laundry in the photo, that is the easiest moment to get it right.
Tell us which fixture, and what else was running when it happened. That usually tells us whether it is the trap, the vent or the line.
Call 727-470-7126FAQ
Why does my sink gurgle after it drains?
In our experience, most often because the water leaving the sink is pulling air through the trap — the vent cannot supply it. The gurgle is that air bubbling through the trap seal. If it happens every time, or other fixtures gurgle too, the venting needs looking at.
What happens if a drain is not vented?
The trap can lose its water. Water leaving the fixture pulls the pressure down behind it, and with no vent close enough, that low pressure draws water out of the trap seal; once the seal is low, pressure swings in the drain can bubble sewer air back into the room. National Bureau of Standards laboratory tests documented both effects, and the Florida code requires every trap to be vented.
Does every sink and shower need its own vent?
No — every trap must be vented, but not necessarily by its own pipe. The Florida code allows several methods, including common vents shared by two fixtures, wet venting within bathroom groups and circuit venting, and permits air admittance valves within limits.
How far can a sink drain be from the vent?
It depends on the trap size. Florida’s Table 909.1 allows 5 feet for a 1¼-inch trap, 6 feet for a 1½-inch trap and 8 feet for a 2-inch trap, at ¼ inch per foot. The total fall of that pipe also may not exceed its diameter.
How far can a toilet be from the vent?
The Florida code sets no maximum: the distance from the trap of a self-siphoning fixture such as a water closet to its vent is not limited. The toilet still has to be vented. Laboratory tests published in 1951 reached the same conclusion about self-siphonage.
Is an air admittance valve legal in Florida?
Yes, within limits. The Florida plumbing code permits them on individual, branch, circuit and stack vents if they meet ASSE 1051 or 1050, sit high enough above the drain (4 inches for an individual or branch valve), stay accessible and are not in a supply- or return-air plenum. At least one vent in every system must still run outdoors.
Can a blocked roof vent cause a sewer smell inside?
It can. A blocked vent cannot supply air, so fixtures pull it through their traps and lose seal. Once a seal is low, pressure swings in the drain can bubble sewer air back into the room.
Is the pipe sticking out of my roof a plumbing vent?
Often, yes — though a water heater flue or an exhaust duct can also come through a roof. The Florida code requires at least one vent in every plumbing system to run outdoors, and an open vent through a roof must end at least 6 inches above it. It lets air into and out of the drains so the traps keep their water.
Sources
We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.
- [1]Self-Siphonage of Fixture Traps (Building Materials and Structures Report 126) — John L. French, Herbert N. Eaton · U.S. National Bureau of Standards (now NIST) · 1951Government or standards body · laboratory study: drain pressure swings designed to about ±1 in of water; normal trap seal 2–4 in; three mechanisms of self-siphonage; slope and diameter as important as length; trail discharge refills the trap; water closets need no length limit
- [2]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 9, Vents — Florida Building Commission / International Code Council · 2023Law / code · §901.2 1-inch water column limit; §901.2.1 venting required; §903.1.1 and §903.5 terminal rules; §904.1 and §918.7 vent to outdoors; §909.1 and Table 909.1 trap-to-vent distances; §909.2 total fall; §910–§914 venting methods; §918 air admittance valves
- [3]2026 Florida Building Code, Plumbing, 9th Edition — Chapter 9, Vents — Florida Building Commission / International Code Council · 2026Law / code · effective December 31, 2026; same wording as the 2023 edition for §901.2, §903.1.1, §903.5, §904.1, §909.1, Table 909.1, §909.2 and §918
- [4]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 2, Definitions — Florida Building Commission / International Code Council · 2023Law / code · definition of an air admittance valve: one-way; opens under negative pressure; closes by gravity at zero differential pressure and under positive internal pressure
