Is an S-Trap Allowed in Florida — and Why Are Traps Shaped Like That?

Is an S-trap allowed in Florida?

No. Section 1002.3 of the 2023 Florida Building Code, Plumbing lists six kinds of prohibited traps, and “S” traps are one of them — alongside bell traps, crown-vented traps, drum traps, traps that rely on moving parts to keep their seal, and separate traps that rely on interior partitions unless made of an approved corrosion-resistant material [1]. The 2026 edition, the 9th, keeps the same list [4].

The section does not give a reason, but the rules around it do. Every trap must be vented [2], and the vent may not join the pipe from a trap below the trap’s weir — the lip at the top of the outlet where the water spills over [2]. As the sections below show, an S-trap leaves no place to do that.

What about an S-trap that is already in your house? The Florida Building Code, Existing Building lets materials that met the rules in effect when they were installed stay in use unless the building official finds them unsafe, and says repairs and alterations use what the code permits for new construction, with like materials allowed for repairs where no unsafe condition is created [5]. Our reading: an old S-trap that was legal when it was installed is not automatically something you must tear out; one put in later, after the rules already banned it, never had that protection. New drain work is built to today’s plumbing code — and whether a particular installation is acceptable is the building official’s call, not ours.

What is the difference between a P-trap and an S-trap?

Where the pipe goes after the U. Both dip into the same U-bend that holds water. In a P-trap the outlet rises to the weir and then runs sideways, nearly level, into the wall; in an S-trap it rises to the weir and turns straight back down, usually through the floor — the two bends together make the S. The University of Houston’s Engines of Our Ingenuity describes S traps as the floor-connected kind, shaped like the letter S, and less common because of current building codes [7].

The sideways run of a P-trap is the trap arm; the code calls it the fixture drain — the drain from the trap of a fixture to its junction with any other drain pipe [3]. It exists so a vent can join it. The code limits how far the trap may be from that vent: 5 feet for a 1¼-inch trap, 6 feet for 1½-inch and 8 feet for 2-inch, at ¼ inch of fall per foot — and the total fall of the arm may not exceed its own diameter [2].

S-traps tend to turn up where a sink drain comes up out of the floor instead of the wall, and where a trap was replaced without anyone adding a vent.

Why is the pipe under a sink shaped like a U?

To hold water. The Florida code defines a trap as a fitting or device that provides a liquid seal to prevent the emission of sewer gases without materially affecting the flow of waste water through it [3]. A U-bend does both: water runs through it, and the water left in the bottom of the bend blocks the pipe.

The code sets the details. The depth of trap seal — the depth of water that would have to be removed from a full trap before air could pass through [3] — must be at least 2 inches and no more than 4 inches [1]. Traps must be self-scouring, so the flow keeps them clean; set level with respect to the seal; with the weir no more than 24 inches below the fixture outlet; and a fixture may not be double-trapped [1]. Slip joints, with an approved rubber-type gasket, are allowed only at the trap inlet, the trap outlet and within the trap seal [1].

The idea is old. The University of Houston essay credits the first patent for the trap to a Scottish watchmaker, Cumming, in 1775 [7]. The code still asks for the simple version: traps that depend on moving parts to keep their seal are prohibited [1].

Why that water disappears in a bathroom nobody uses — evaporation — is a different problem, covered in our page on why a dry trap smells.

Why does an S-trap lose its water?

Because the water leaving the trap falls straight down and pulls the seal after it. The National Bureau of Standards (now NIST) measured this in a laboratory study published in 1951 and called it self-siphonage: the loss of a trap’s seal caused by the discharge of the very fixture it serves [6].

The study describes three ways it happens. The water moving through the trap has momentum and carries on out when the flow stops. Water filling the whole cross-section of the drain at one or more points lowers the pressure upstream, toward the trap, and pulls water out of it. And air bubbles swallowed at the overflow and in the vortex drag water with them as they rise through the trap’s outlet leg [6]. Among its conclusions: more slope, or a smaller diameter, in the pipe leaving the trap tends to increase the losses, and those two matter fully as much as the pipe’s length [6].

The 1951 tests were run on P-traps with sloped drains; they did not test S-traps. But an S-trap sits at the far end of that scale — the pipe after the weir does not slope, it drops — and a falling column of water is exactly the kind that fills a pipe. That is our reading of the study, and it fits what the code does: it bans the shape outright instead of limiting it [1][6].

The fixture matters too. The same study found that flat-bottomed fixtures lose less seal than round-bottomed ones, because the slow trickle at the end of the flow refills the trap, and that removing a lavatory’s overflow increases the losses substantially [6]. The full mechanism, and the 1-inch pressure limit the code sets for every trap, are in our page on why a drain needs a vent.

Can you just add a vent to an S-trap?

Not to the S-trap itself. The code says a vent may not connect to a fixture drain below the weir of the trap, except for water closets, and that no vent may be installed within two pipe diameters of the trap weir; crown-vented traps are on the prohibited list [1][2]. On an S-trap the pipe falls away immediately after the weir, so a vent tee anywhere on that drop would be below it.

So the fix is to change the shape: replace the S with a P-trap, run a trap arm from it to a fitting where the vent joins, and keep that arm within the distance and fall limits above [2]. On a typical 1½-inch sink trap that means no more than 6 feet of arm at ¼ inch per foot [2].

Can an air admittance valve fix an S-trap?

It can be the vent in the fix, but it does not make an S-trap legal. The trap still has to become a P-trap with a trap arm; the valve then takes the place of a pipe to the vent system on that arm, where the code allows one [1][2].

The Florida code lets individual, branch and circuit vents end at an individual or branch-type air admittance valve meeting ASSE 1051, venting fixtures on the same floor that connect to a horizontal branch drain [2]. The valve must sit at least 4 inches above the horizontal branch drain or fixture drain it vents and at least 6 inches above insulation; it must stay accessible, where air can reach it; it may not be in a supply- or return-air plenum; and it goes in after the drain-waste-vent test [2]. Every plumbing system still needs at least one vent that runs outdoors [2].

Oatey’s specification sheet for its Sure-Vent valve describes how one works: a one-way valve that lets air into the drain when the pressure there drops, and closes by gravity when there is no flow or the pressure inside rises, so sewer gas does not escape [8]. The sheet adds its own limits — within 15 degrees of vertical, inside the building, between −40°F and 150°F, accessible for inspection and service — and says to consult local plumbing codes before installing one [8].

Do I have to replace an S-trap?

Not necessarily the day you find it — if it was legal when installed, the Existing Building code may let it stay [5] — but these are good reasons to do it:

• the sink gurgles as it drains and the cabinet smells afterwards — the usual sign the seal is being pulled out
• you are remodeling the kitchen or bathroom, or moving the sink: new work follows the plumbing code, and the code prohibits S traps [1][5]
• the trap leaks or is cracked and has to come out anyway
• a home inspection noted it and you want it resolved

What does replacing an S-trap with a P-trap involve?

Usually more than swapping the trap. The trap is the easy part; the work is giving it a vent. The usual steps:

• find where the drain leaves the cabinet — floor or wall — and whether a vent already runs in that wall
• fit a P-trap and a trap arm with a gentle fall, within the code’s distance and fall limits [2]
• bring the drain fitting up to meet the arm, so the vent joins it no lower than the trap weir — when the drain comes out of the floor, that fitting often has to rise inside the cabinet or the wall [2]
• connect the vent: into the existing vent system, or an air admittance valve where the code allows one [2]
• run and drain the sink, then check that the trap is still full of water

What this means in Clearwater and across Tampa Bay

The S-trap ban is in the Florida Building Code, Plumbing itself, section 1002.3 — the same text wherever that code applies, from Clearwater to Tampa [1].

Many houses here stand empty for part of the year, and their traps lose water to evaporation whatever the trap shape. That is covered in our page on why a dry trap smells; an S-trap adds the risk of siphoning its seal out every time the sink drains.

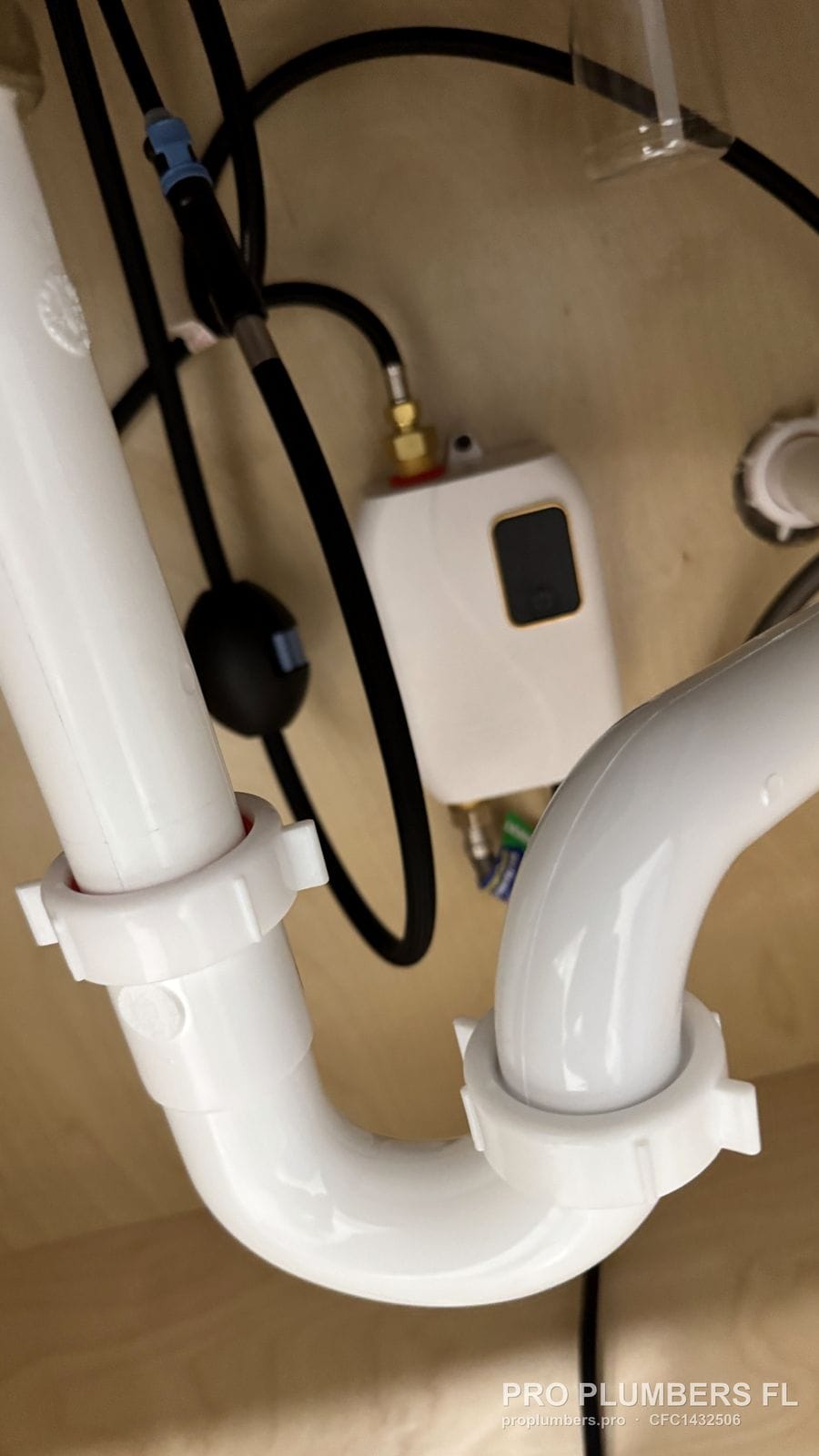

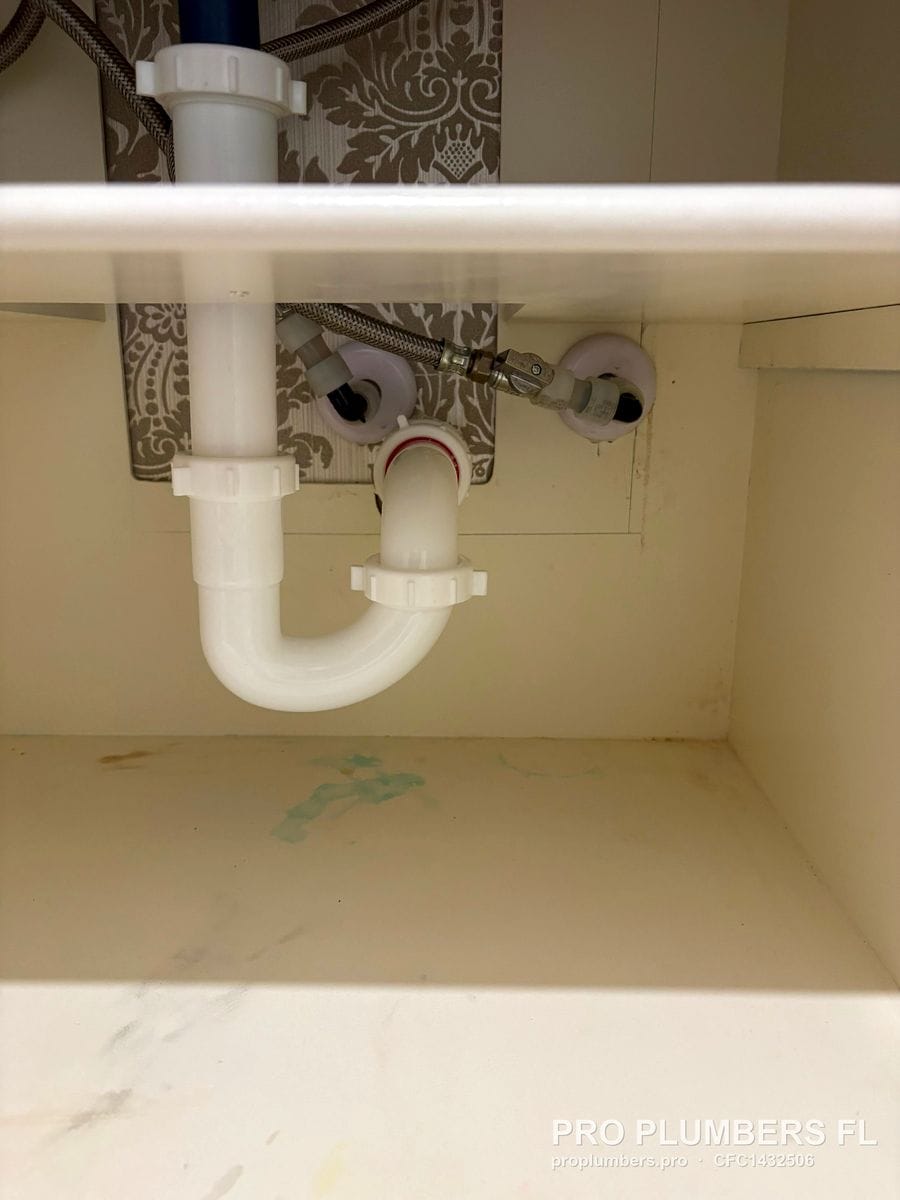

We install sink drains and P-traps in Clearwater, Tampa and across Tampa Bay. The PVC P-trap and tailpiece at the top of this page are ones we installed in a vanity cabinet in Clearwater, and the P-trap beside a point-of-use water heater above is another Clearwater job.

FAQ

Sources

We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.

1. [1]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 10, Traps, Interceptors and Separators — Florida Building Commission / International Code Council · 2023Law / code · §1002.1 each fixture separately trapped; 24 in vertical and 30 in horizontal limits from fixture outlet to trap; no double trapping; exception for fixtures with integral traps; §1002.2 traps self-scouring, slip joints with approved elastomeric gasket only at trap inlet, outlet and within the seal; §1002.3 prohibited traps: moving parts, bell, crown-vented, interior partitions (with exception), “S” traps, drum traps; §1002.4 seal not less than 2 in and not more than 4 in; §1002.7 traps set level with respect to the seal; read 2026-10-18
2. [2]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 9, Vents — Florida Building Commission / International Code Council · 2023Law / code · §901.2 vent piping so no trap seal sees more than 1 in water column differential; §901.2.1 traps and trapped fixtures shall be vented; §909.1 and Table 909.1 trap-to-vent distances (1¼ in 5 ft, 1½ in 6 ft, 2 in 8 ft at ¼ in/ft) with water-closet exception; §909.2 total fall not more than the fixture drain diameter, vent connection not below the trap weir except water closets; §909.3 no vent within two pipe diameters of the trap weir; §918.1–918.8 air admittance valves: ASSE 1051/1050, after DWV test, individual/branch/circuit vents, same floor and horizontal branch, at least 4 in above the branch or fixture drain and 6 in above insulation, accessible with air, at least one vent to outdoors, not in supply/return plenums; read 2026-10-18
3. [3]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 2, Definitions — Florida Building Commission / International Code Council · 2023Law / code · definitions of trap (liquid seal preventing emission of sewer gases without materially affecting flow), depth of trap seal (depth of liquid to be removed from a full trap before air could pass) and fixture drain (drain from the trap of a fixture to a junction with any other drain pipe); read 2026-10-18
4. [4]2026 Florida Building Code, Plumbing, 9th Edition — Chapter 10, Traps, Interceptors and Separators — Florida Building Commission / International Code Council · 2026Law / code · §1002.3 prohibited traps list, including “S” traps, same as the 2023 edition; §1002.1 and §1002.7 same wording; read 2026-10-18
5. [5]2023 Florida Building Code, Existing Building, 8th Edition — Chapter 3, §302.3 Existing materials, §302.4 New and replacement materials — Florida Building Commission / International Code Council · 2023Law / code · materials in compliance with the requirements in effect when installed may remain in use unless the building official finds them unsafe; materials permitted for new construction to be used, like materials permitted for repairs and alterations where no unsafe condition is created; read 2026-10-18
6. [6]Self-Siphonage of Fixture Traps (Building Materials and Structures Report 126) — John L. French, Herbert N. Eaton · U.S. National Bureau of Standards (now NIST) · 1951Government or standards body · laboratory study (tests on P-traps with sloped fixture drains; S-traps not tested); self-siphonage defined; normal seal 2–4 in; three mechanisms (momentum, drain filling its cross-section, air bubbles); conclusions: slope and diameter as important as length (9), flat-bottomed fixtures lose less (4), removing the overflow increases losses (6), water closets need no unvented-length limit (18); read 2026-10-18
7. [7]Traps and Vents (The Engines of Our Ingenuity, episode 3110) — Andy Boyd · University of Houston, College of Engineering · 2017University publication · trap first patented by Scottish watchmaker Cumming in 1775; S traps are the floor-connected kind, shaped like the letter S, less common due to current building codes; low pressure below the trap can siphon its water down the pipe; read 2026-10-18
8. [8]160 DFU Sure-Vent Air Admittance Valve with Schedule 40 Adapter — specification sheet (02/2011) — Oatey Co. · 2011Manufacturer's manual · one-way valve opens under negative pressure, closes by gravity at zero differential and under positive pressure; ASSE 1050 & 1051 listed; consult local codes; same floor, horizontal branch; 4 in above the horizontal branch drain, 6 in above insulation, within 15° of vertical; at least one primary stack vent; inside the structure, −40°F to 150°F; accessible; Oatey document hosted on a retailer’s server; read 2026-10-18
