The rough-in is the part of a bathroom nobody sees and everybody pays for twice if it is wrong. It is the valve, the lines feeding it and the outlets leaving it — set at the right height and depth, braced, pressure-tested and photographed before the wall closes.
Updated July 2026 · Licensed CFC1432506
PEX-A is joined by expanding the end of the pipe, slipping it over the fitting and letting it shrink back onto it. No solvent, no flame, and the pipe grips the fitting as it returns to size. It also bends around obstacles instead of needing an elbow at every turn, which means fewer joints buried inside a wall.
What we set at rough-in decides what the finished bathroom can be: the valve height, how far the valve body sits from the finished wall surface, where the tub spout drop lands, and how many outlets the valve can feed. Get the depth wrong and the trim will not sit flat on the tile — which is only discovered after the tile is on.
Every valve has a range for how deep it may sit behind the finished surface — the plaster guard on the front of the valve is the gauge for it. We set the valve against the finished wall thickness the tile setter is going to build, not against the bare stud.
Heights come from how the bathroom will be used: valve within reach from outside the tub, spout drop above the rim, head outlet high enough for the tallest person in the house. These are set once and set with the customer, before anything is closed.

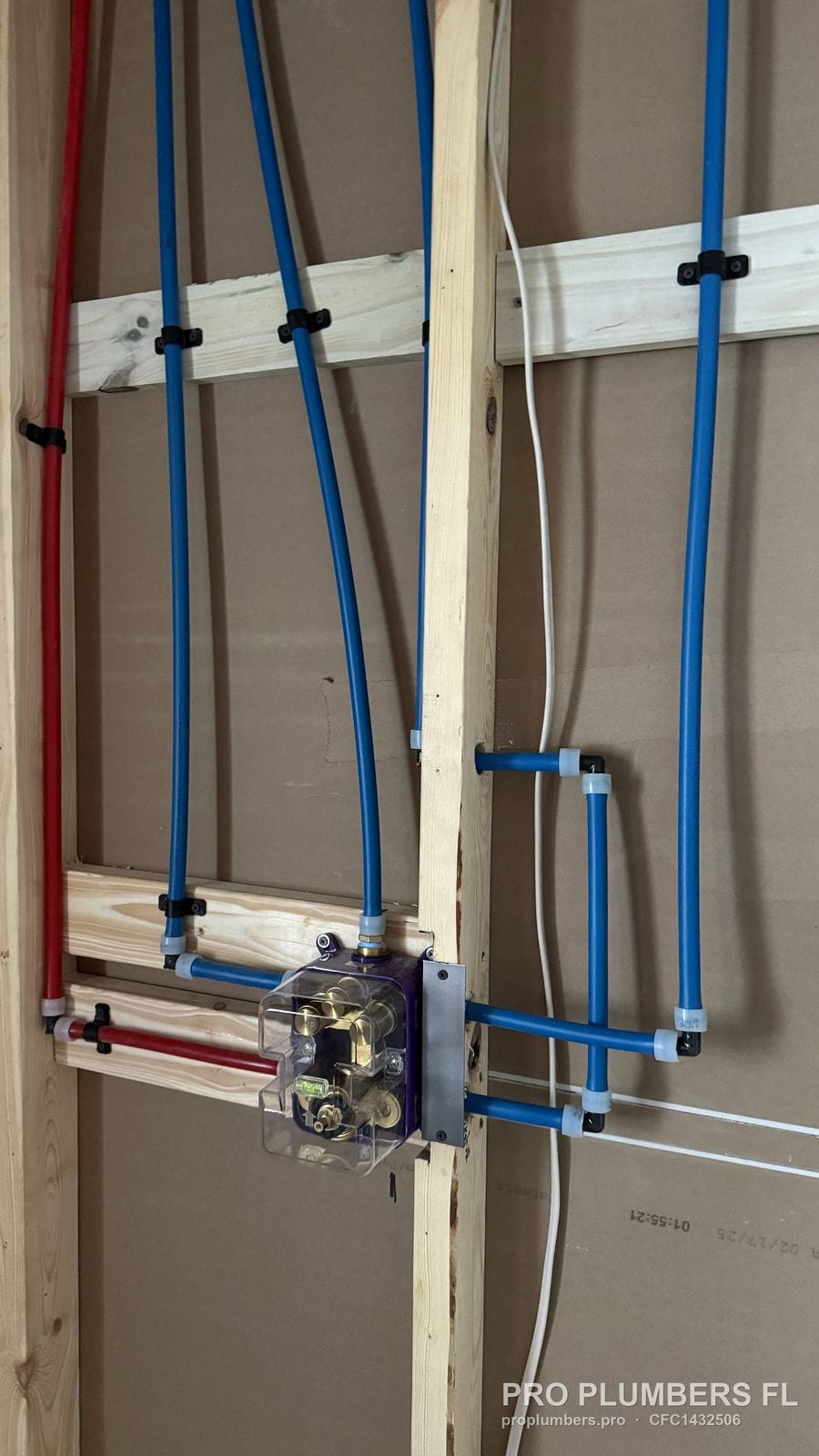

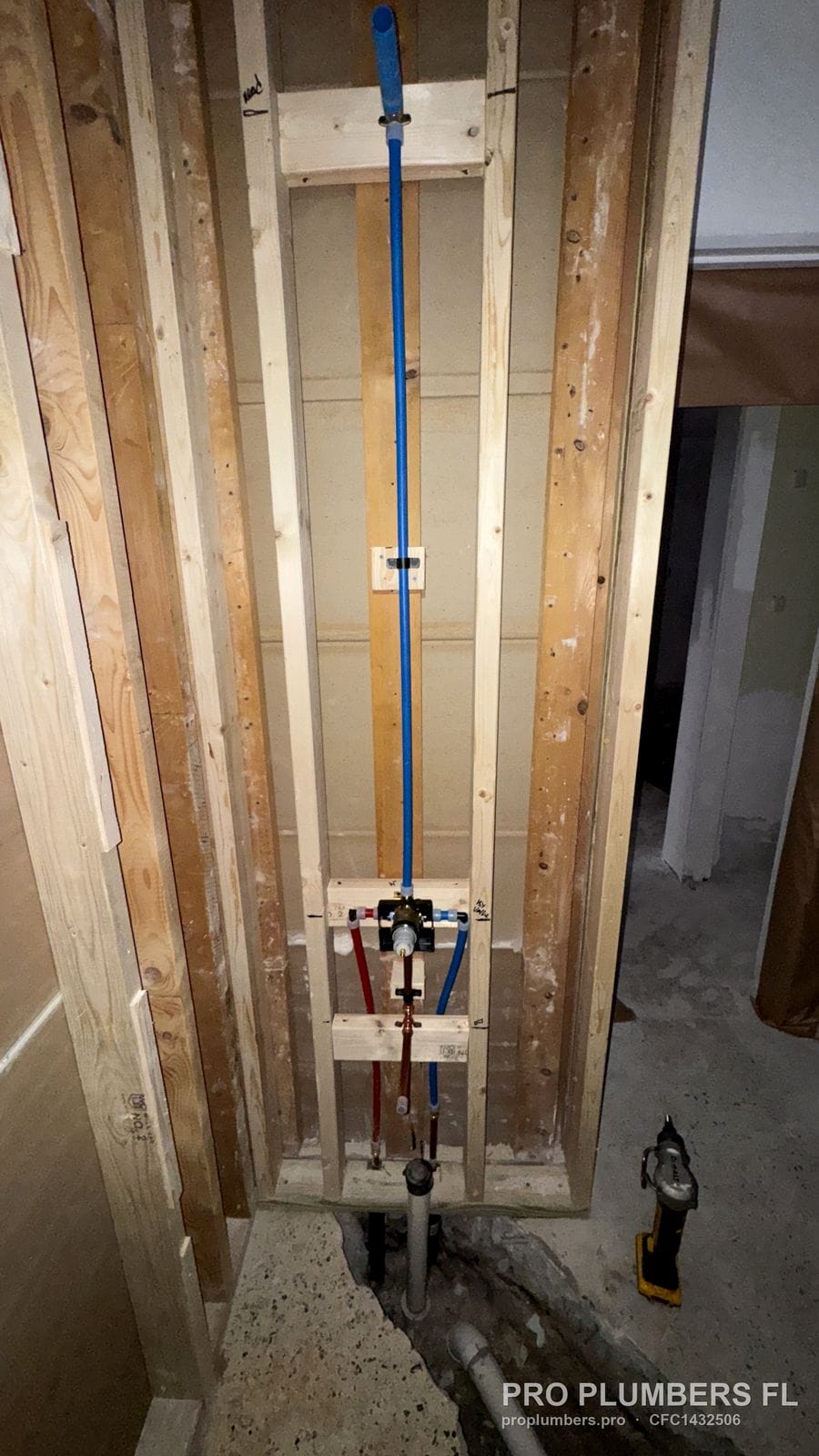

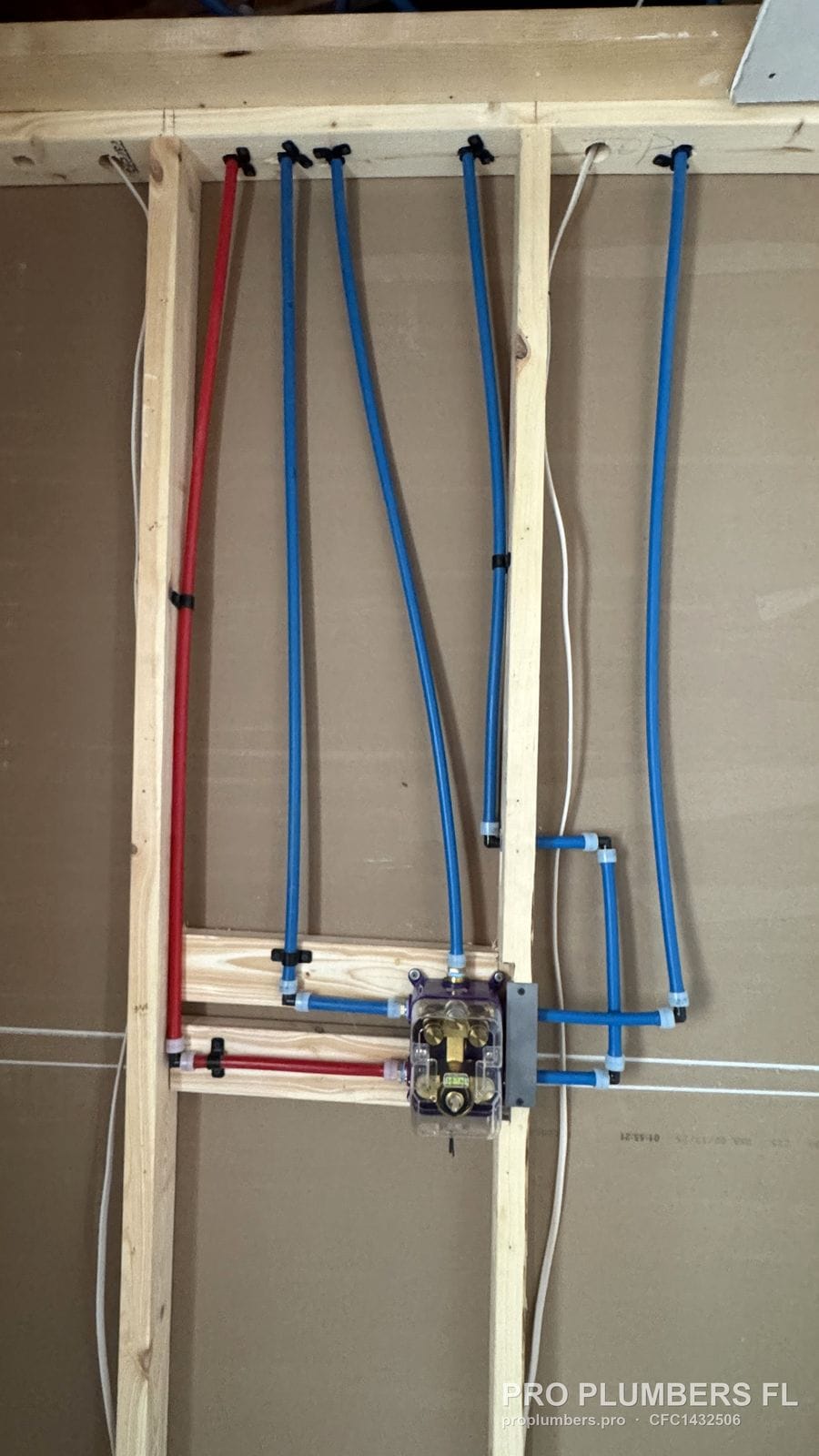

A thermostatic valve with several PEX-A lines leaving it to separate outlets, plus a full-height shower wall rough-in and a shower valve with a copper tub-spout drop on the same project.

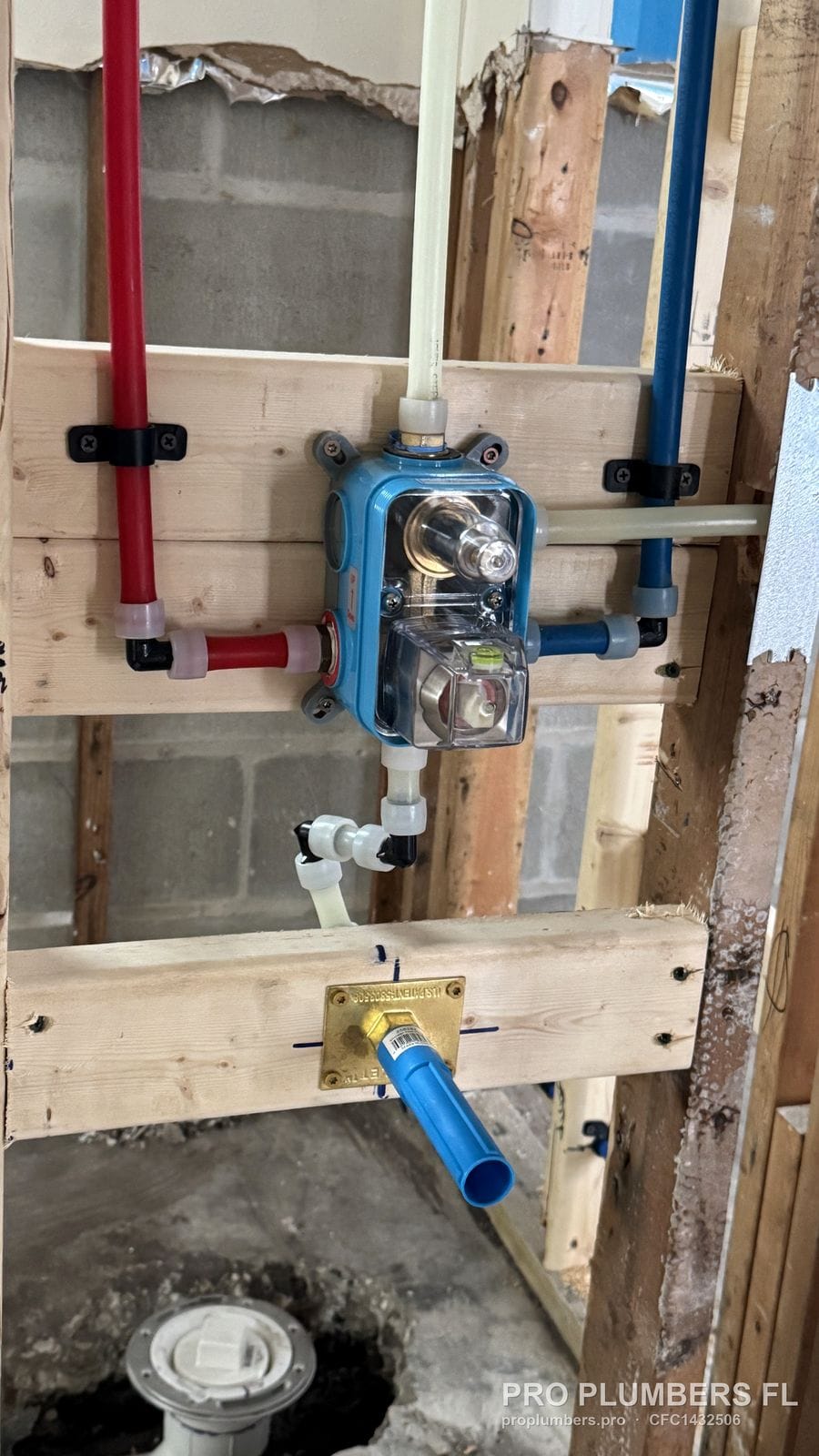

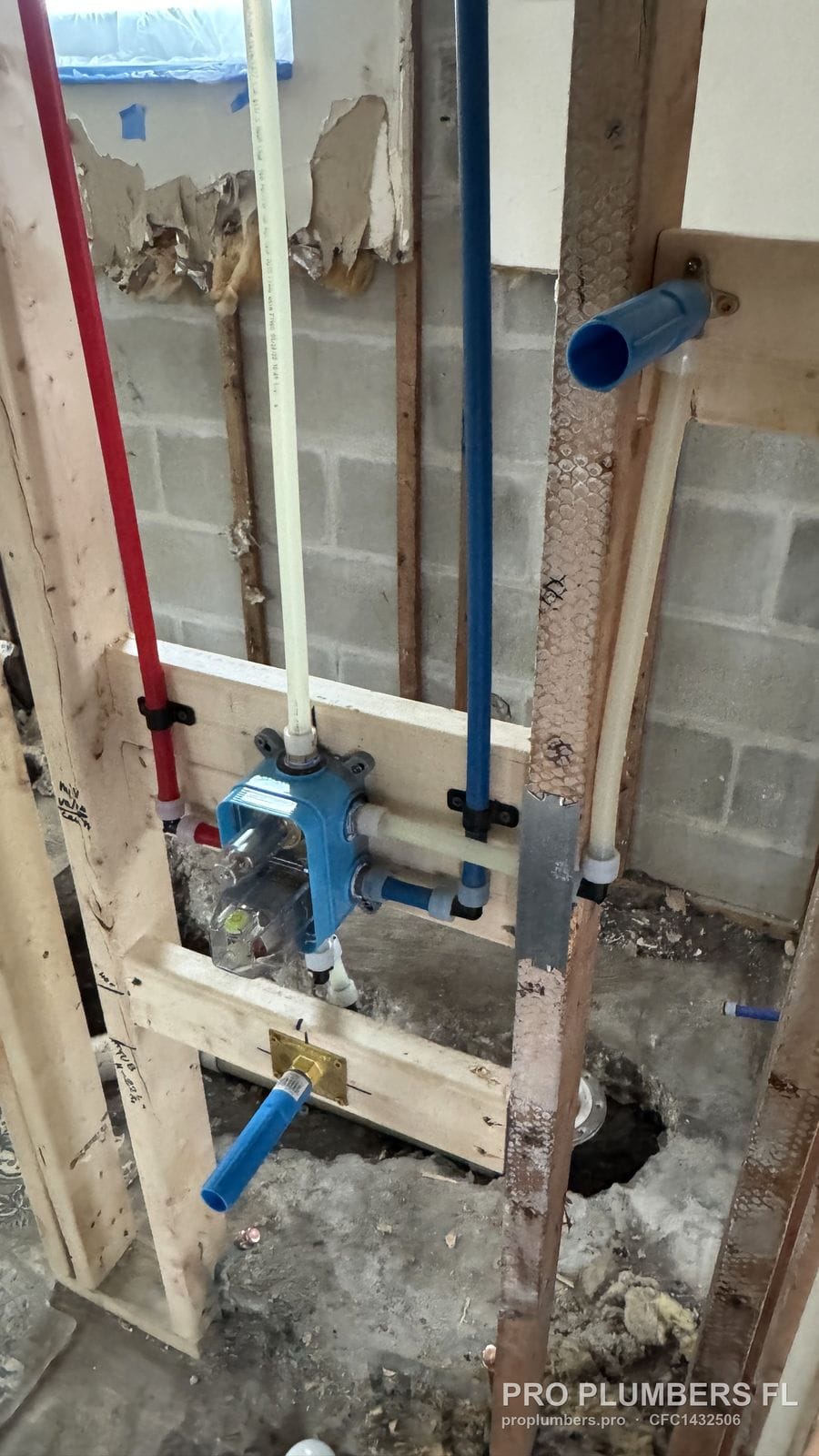

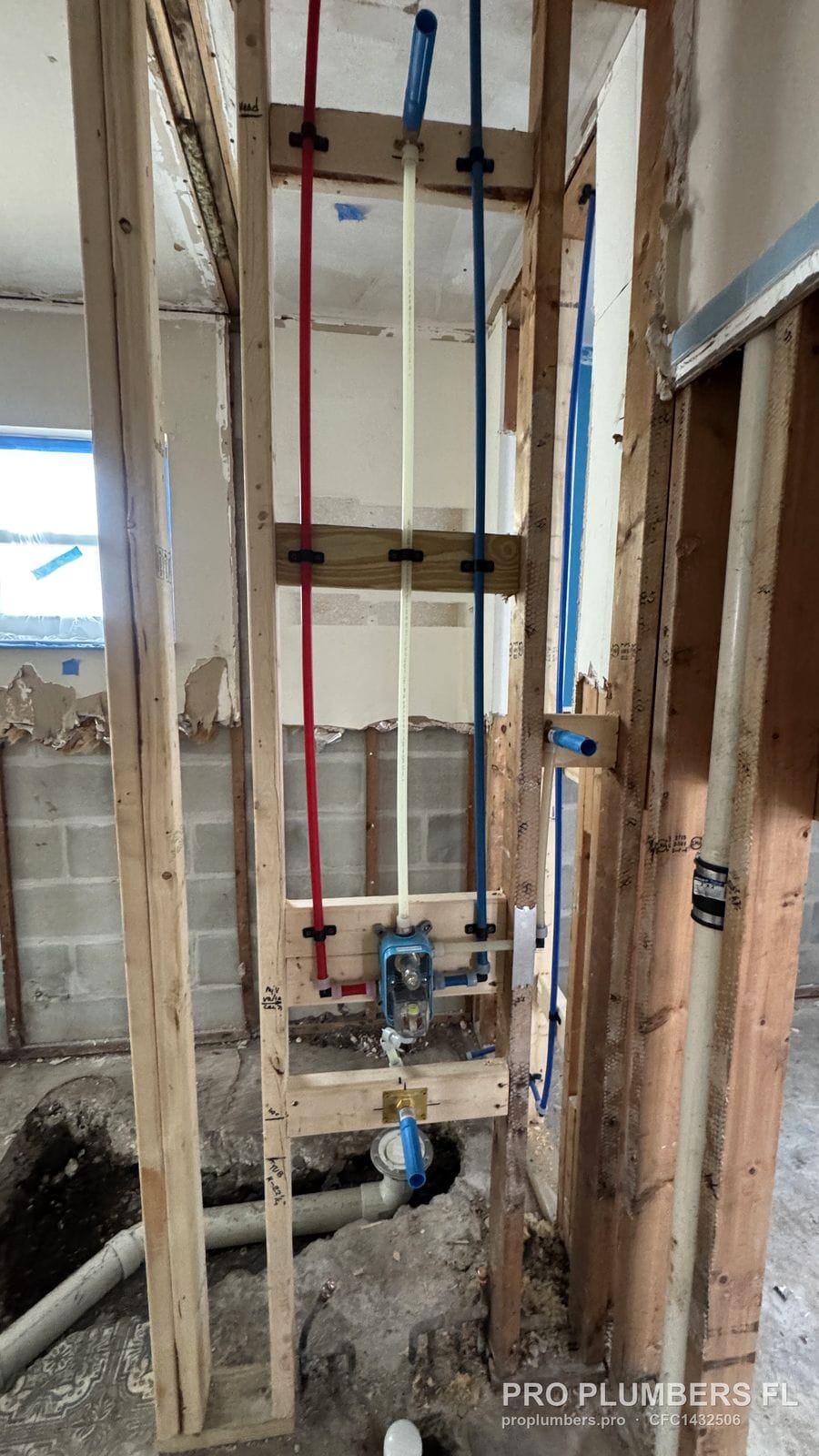

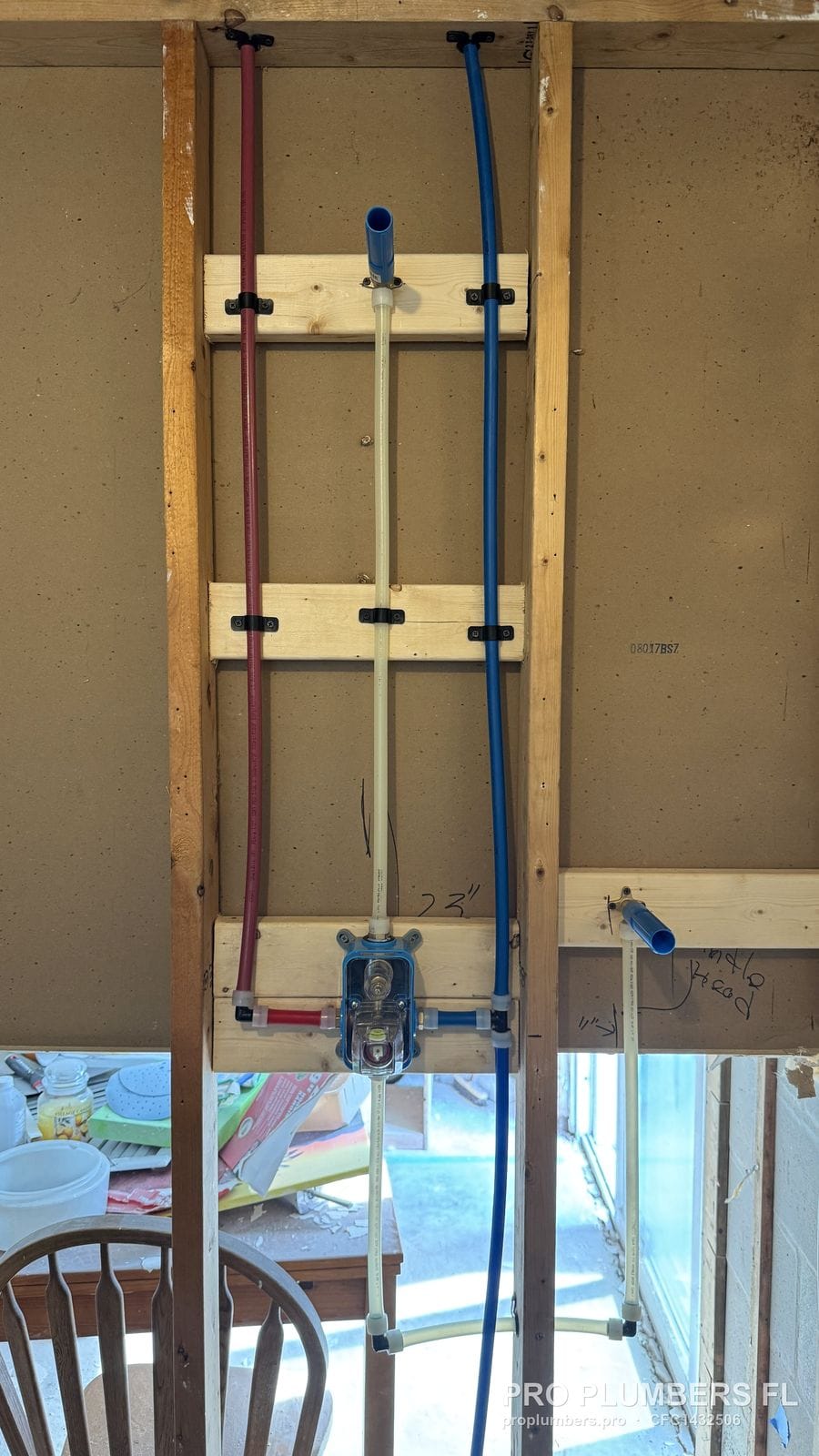

Hot and cold PEX-A lines run to the valve in a remodel where the back wall is block, the new floor drain set below, and the wall left inspection-ready.

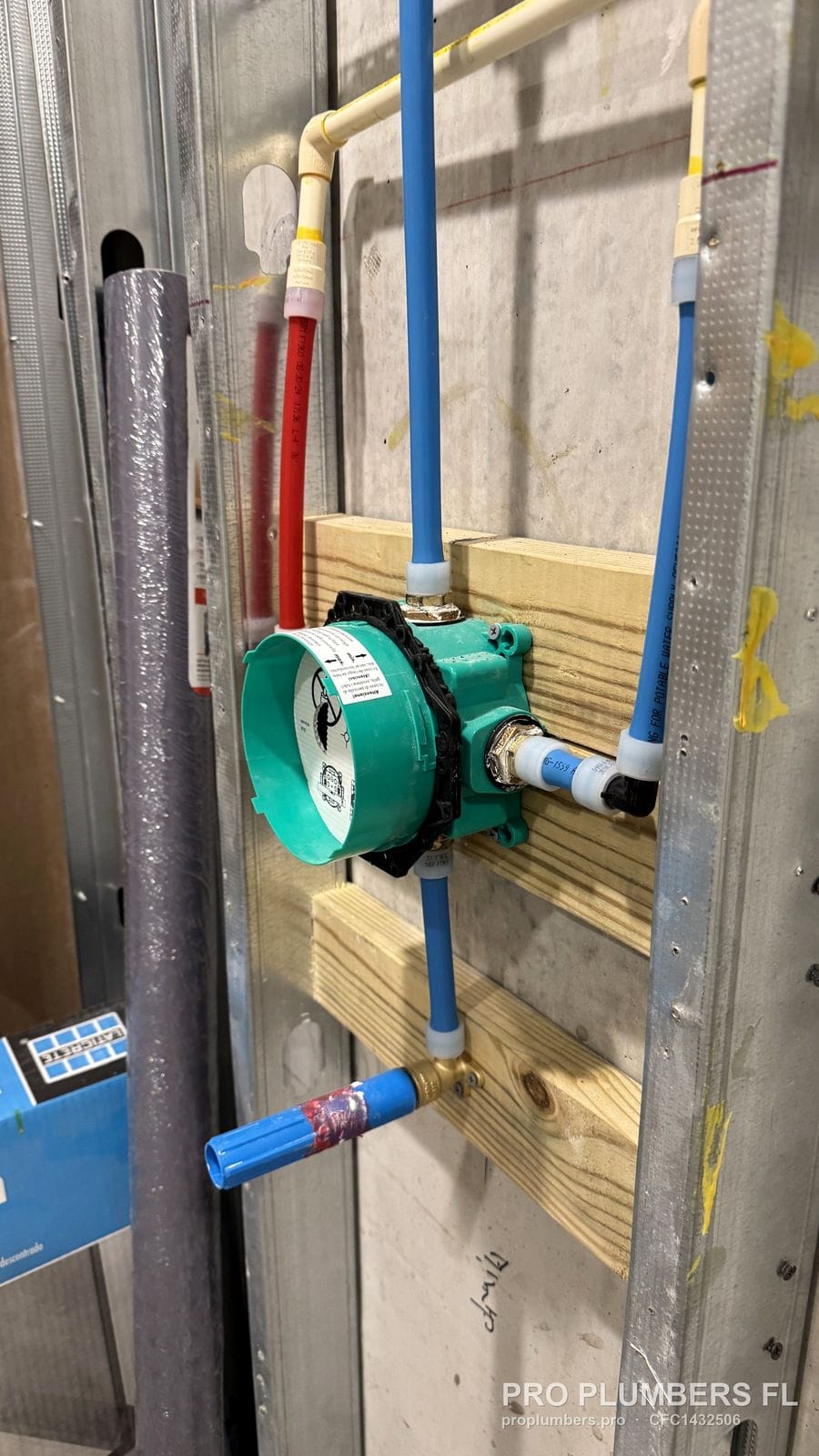

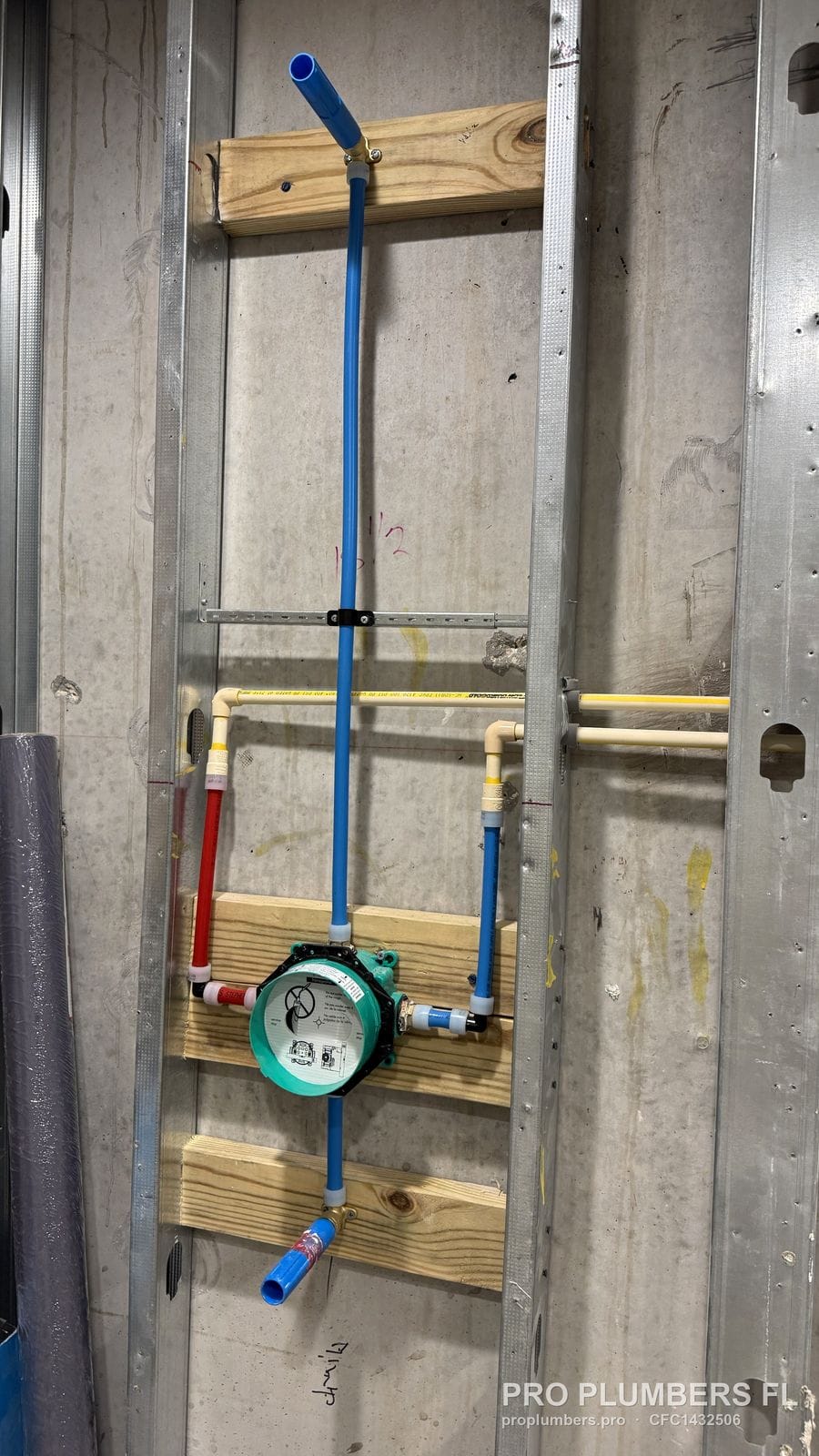

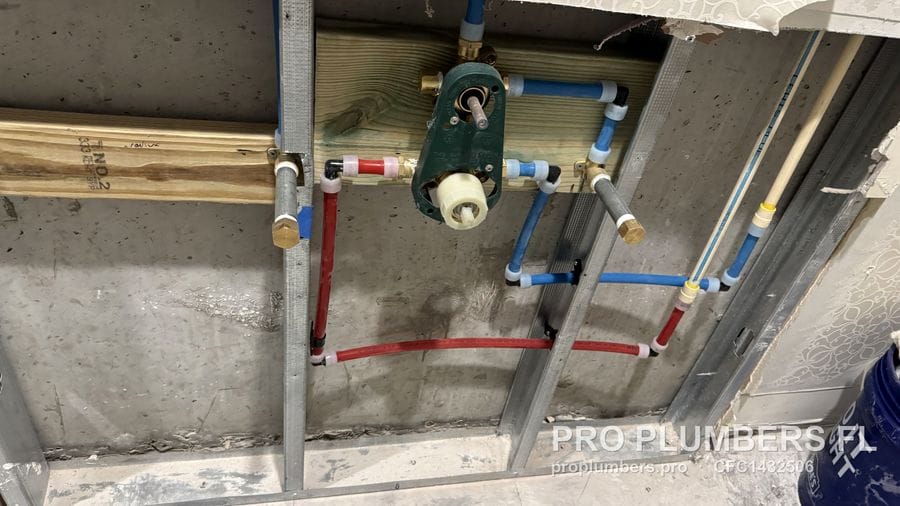

Valves roughed in through metal studs, with PEX-A expansion fittings at the valve body — the close-up shows the fitting seated on the pipe.

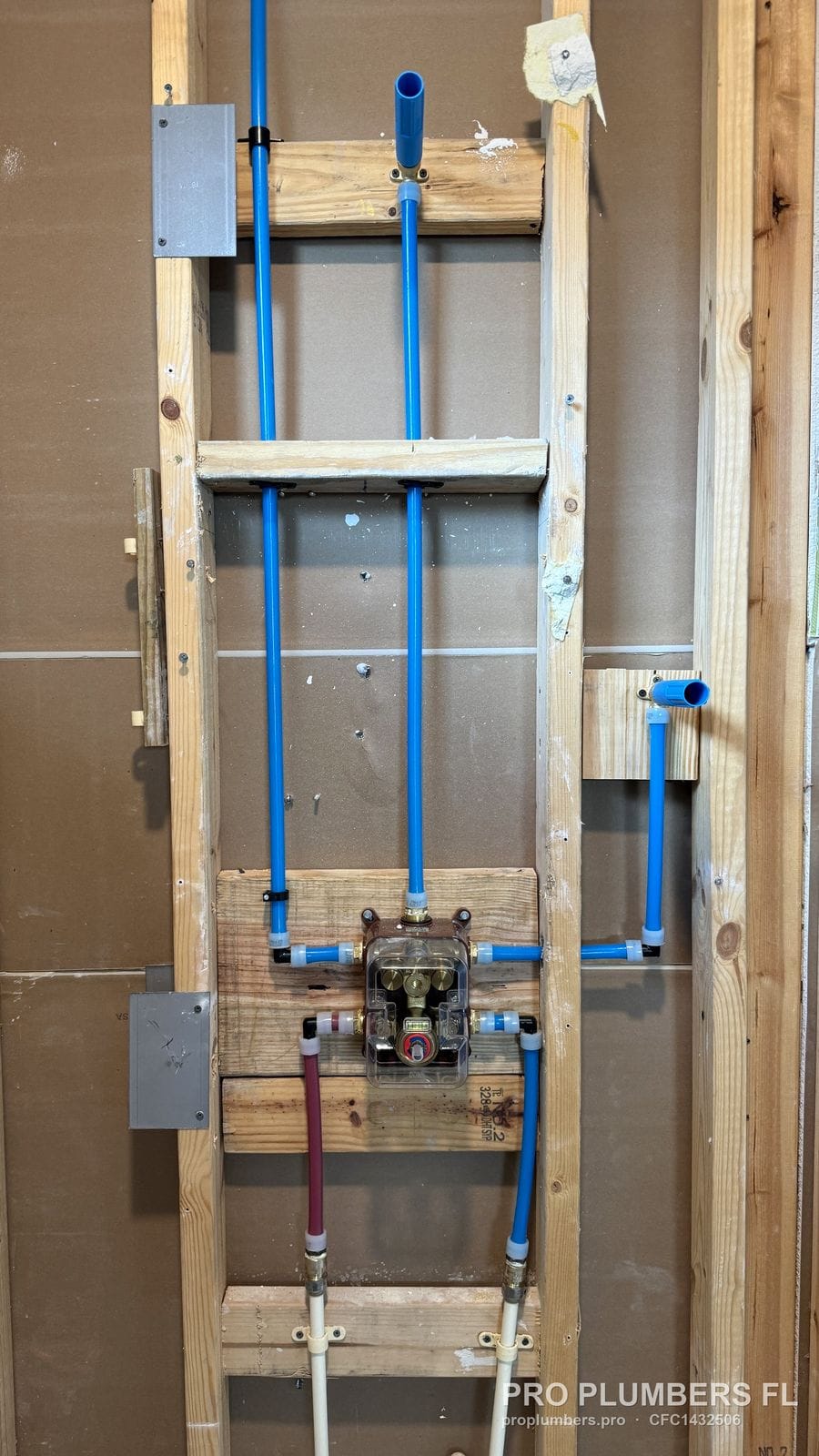

A full tub-and-shower wall rough-in: mixing valve, riser to the head, drop to the spout, all in PEX-A.

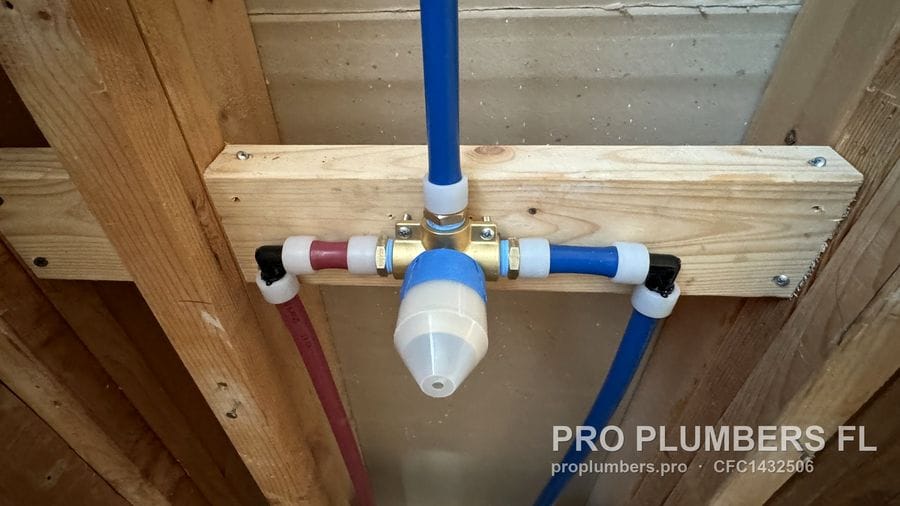

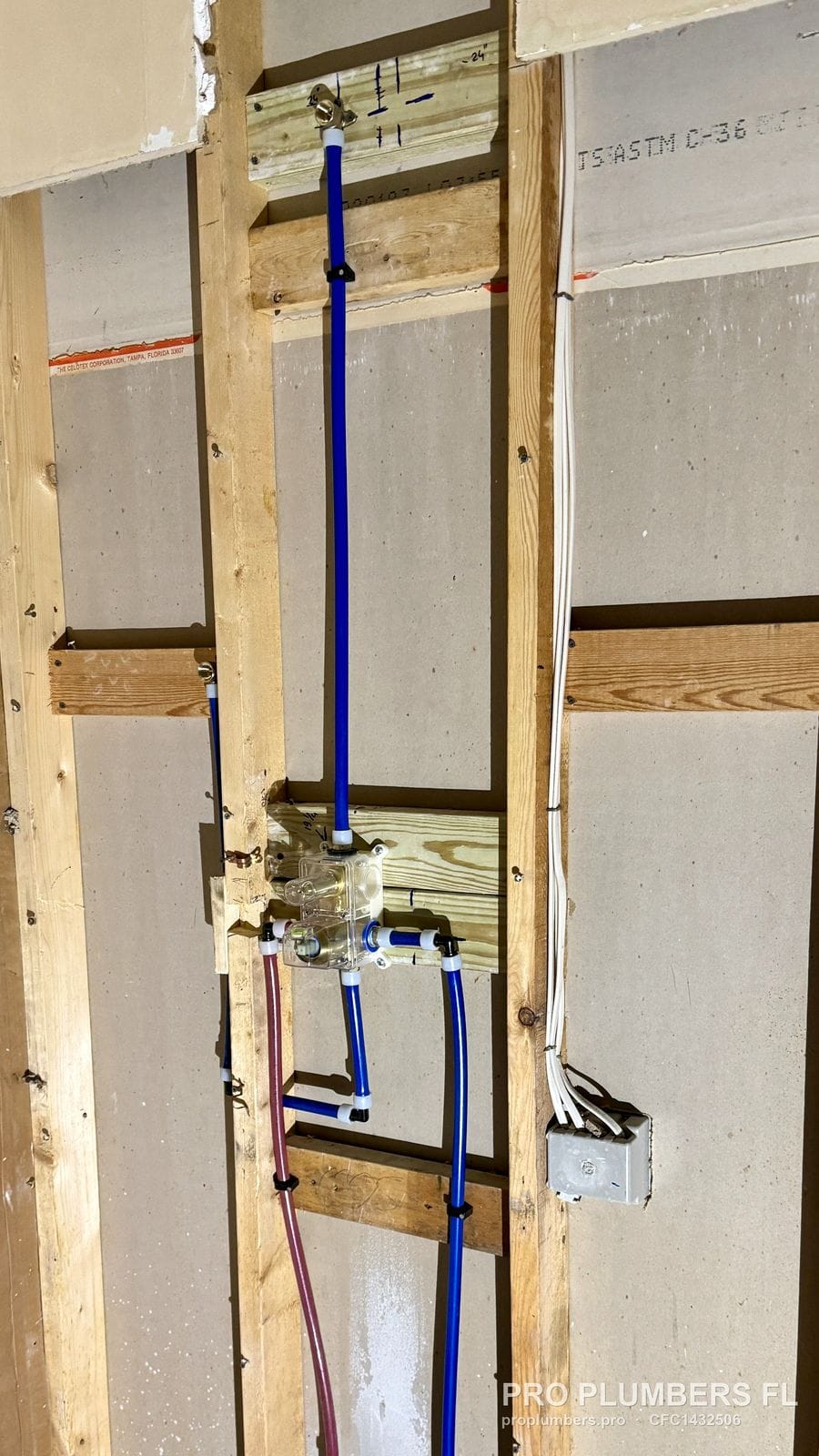

Mixing valve roughed in with PEX-A and expansion fittings, with the riser run up to the shower head.

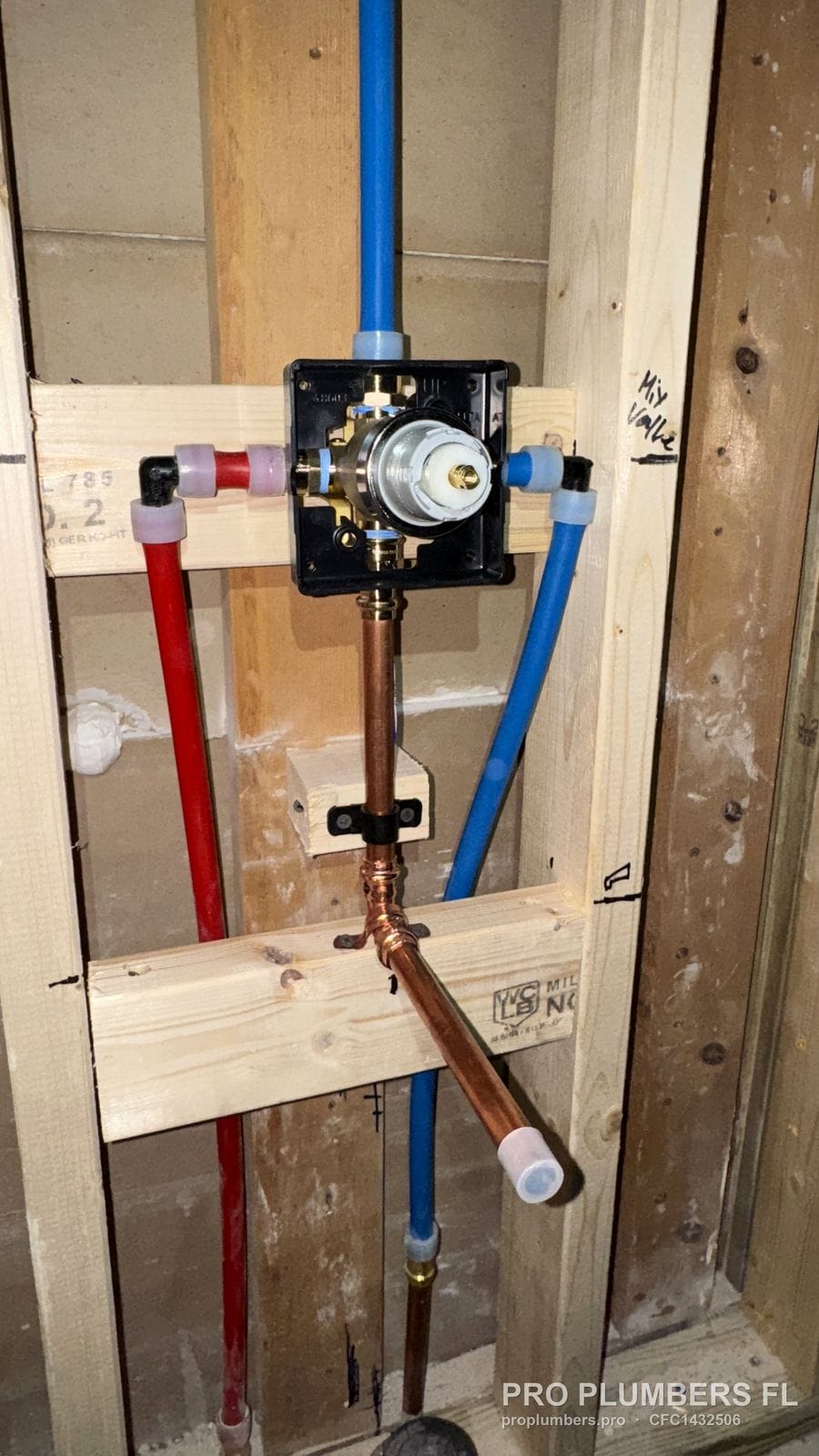

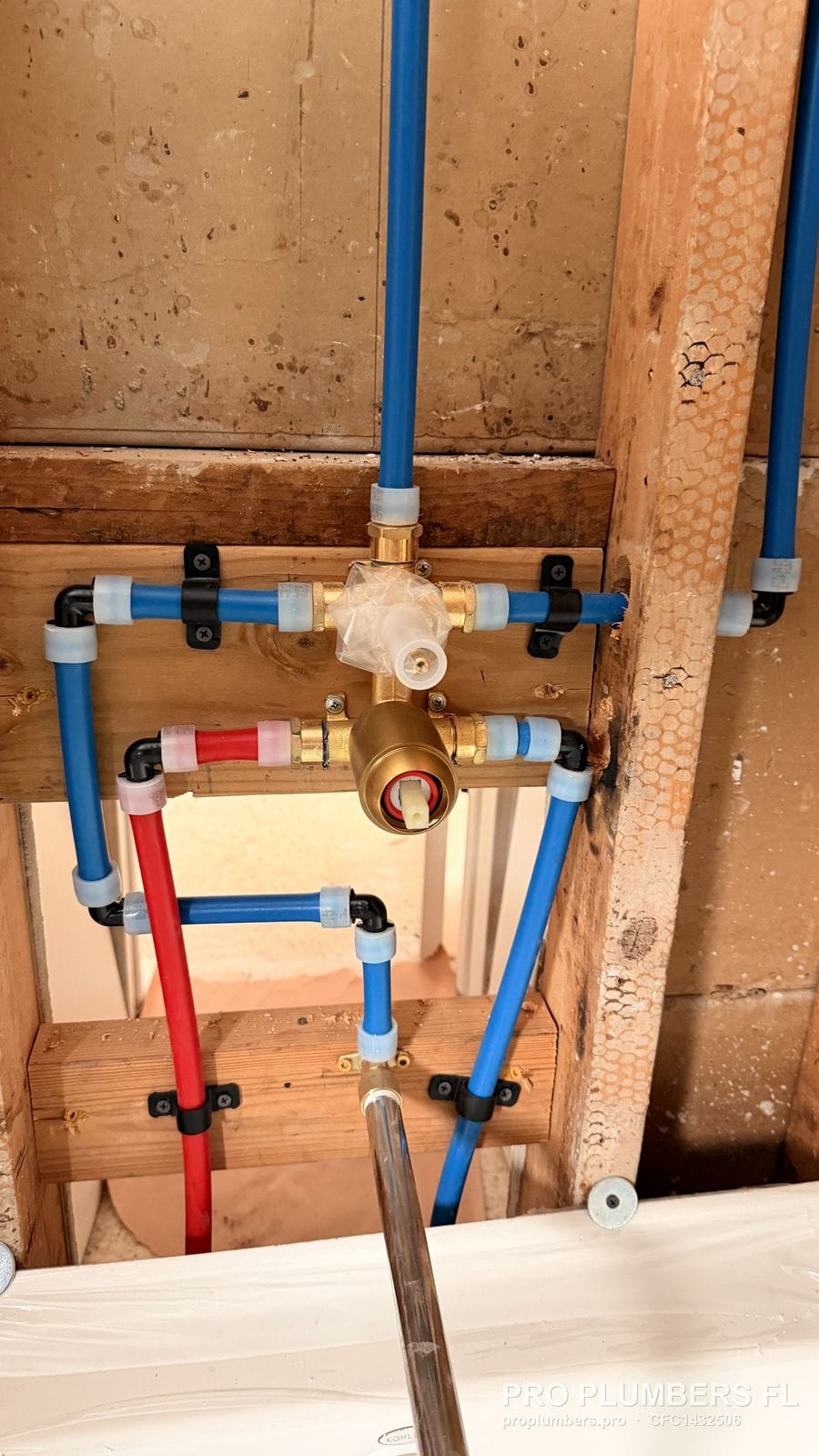

A brass tub-and-shower valve fed with PEX-A, with a copper drop to the tub spout where the spout needs a rigid connection.
Valve, spout and head heights set with you against the finished tile line.

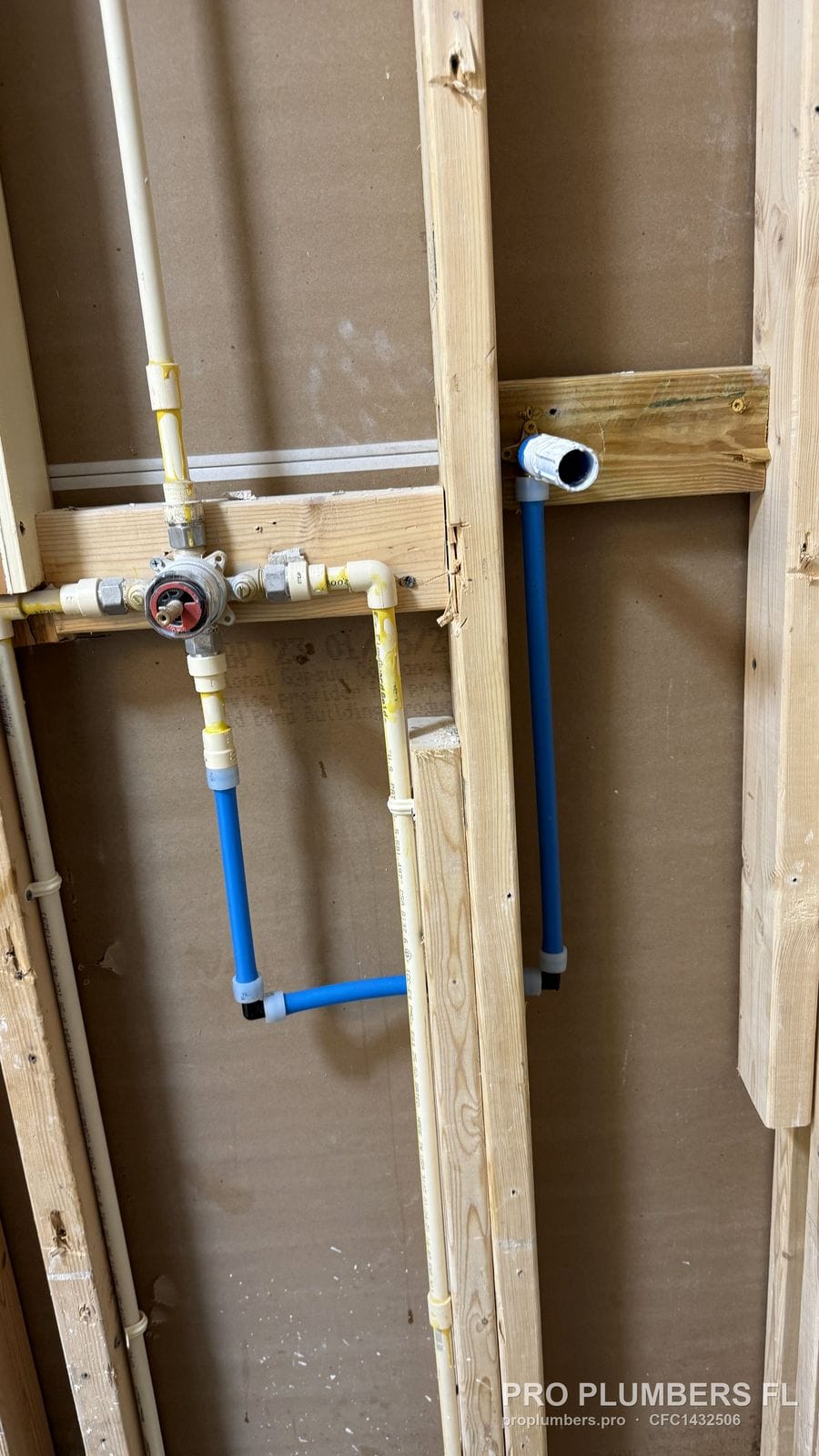

PEX-A from the manifold or branch, bent around obstacles instead of joined at them.

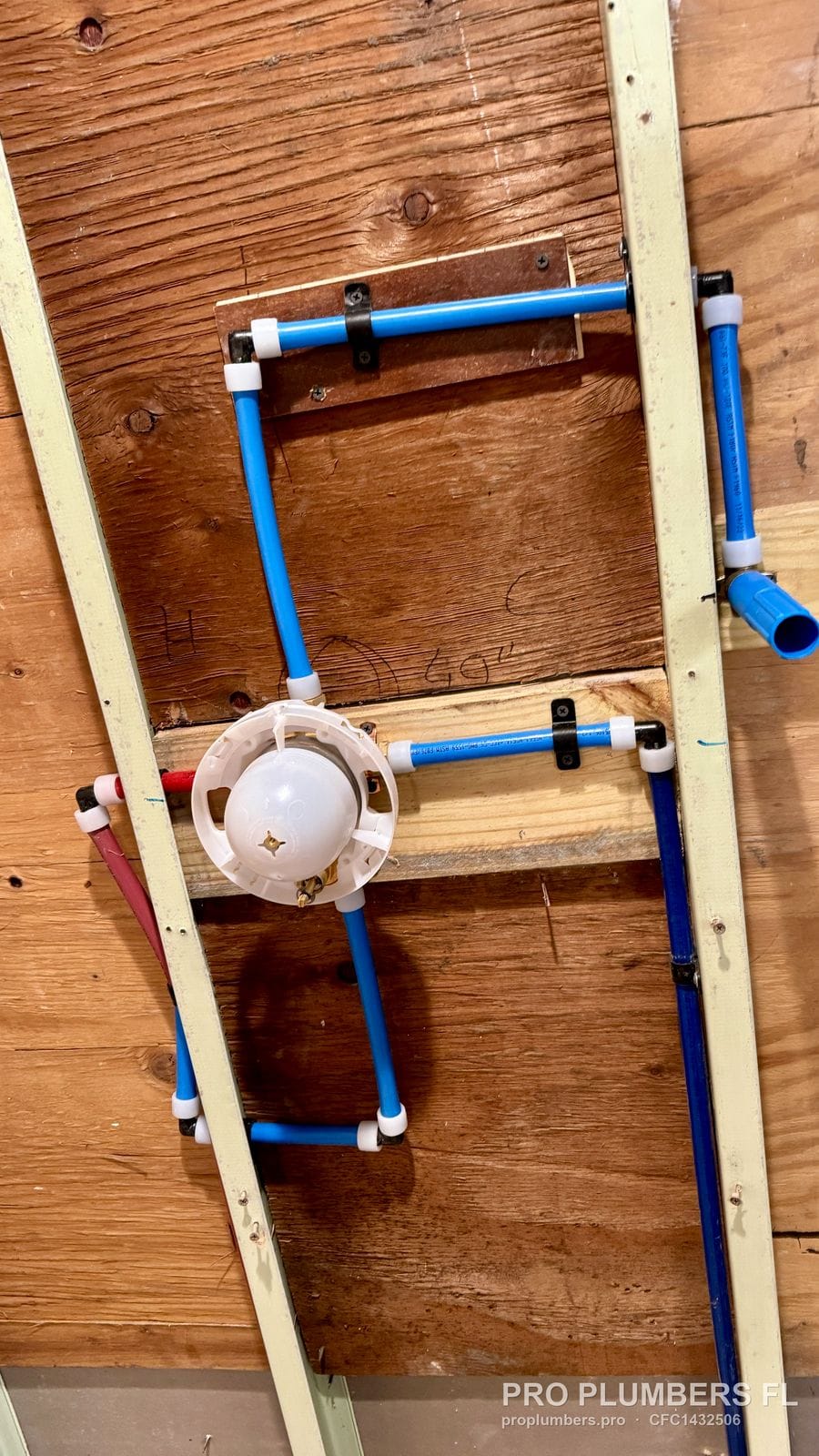

Valve fixed at the right depth with its plaster guard on, ready for the tile build-up.
The wall is pressure-tested and photographed open, so what is behind the tile is on record.
PEX-A is joined by expanding the pipe over the fitting, so the connection tightens as the pipe shrinks back, and the pipe bends where others need a fitting. Fewer joints inside a wall is the point.
Yes — that needs a valve with enough outlets, and often a diverter or a thermostatic valve. We have done several, including the multi-outlet rough-in on this page.
Yes. Several jobs here are metal-stud walls, which need their own bracing and grommets so the pipe never rubs on a cut edge.
Before the wall closes, against the finished wall thickness — tile, backer and thinset included. If the tile choice changes, tell us before the rock goes on.
Yes — see our shower and tub trim page. The same crew that set the valve comes back to fit the trim on top of it.
Workmanship warranty: 5 years on new construction, 1 year on repairs. Equipment carries the manufacturer's warranty.
Pro Plumbers FL is a family-run company. The licence CFC1432506 is held by Liubov Ivanova; Viktor Zarubitskii — in the plumbing trade since 1998 — plans the job, makes the technical decisions and works on site. Our own plumbers do the plumbing. Work outside plumbing, such as concrete cutting, we either do ourselves or bring in a contractor — either way it is written into your quote.
Source: Google
Send the valve or trim you have chosen and a photo of the open wall — we will set it to fit.
