Does a Dishwasher Need an Air Gap in Florida — or Is a High Loop Enough?

Does a dishwasher need an air gap in Florida?

Not in a home. The 2023 Florida Building Code, Plumbing lets a residential dishwasher drain connect directly to a wye branch fitting on the kitchen sink tailpiece, directly to the dishwasher connection of a food waste disposer, or through an air break to a standpipe — and it requires the dishwasher’s waste line to rise and be securely fastened to the underside of the sink rim or counter top [1]. The Florida Building Code, Residential states the same loop requirement: the discharge hose rises to the underside of the counter and is fastened there before it connects to the disposer or the sink tailpiece [4].

So the requirement in Florida is the loop, not the countertop fitting. What the code does require on every dishwasher is protection of the water supply: an air gap built into the machine, complying with ASME A112.1.2 or A112.1.3, or a backflow preventer [1][4]. That protection is part of the dishwasher’s clean-water side, not the drain hose.

Commercial machines are different. A commercial dishwashing machine has to discharge through an air gap or an air break into a waste receptor [2] — and some states’ codes require one on home dishwashers too; Sub-Zero’s own answer on the subject notes that air gap requirements vary by state [11].

What is the difference between an air gap and a high loop?

A high loop is the drain hose itself, run up to the underside of the counter and fastened there before it drops to the drain. An air gap is a separate fitting that stands on the sink or counter: the hose from the dishwasher goes up into it, a second hose runs from it down to the disposal or the sink tailpiece, and the two never touch [12].

The code’s definition makes the difference plain. An air gap in a drainage system is an unobstructed vertical distance through open air between the outlet of a waste pipe and the rim of whatever it discharges into [3]. A high loop has no open air in it — it is one continuous hose, and its protection is height. Whirlpool describes the loop’s job as preventing siphoning, which it explains as water being drawn back into the dishwasher by pressure changes, and keeping wastewater from flowing back into the appliance [6][8].

An air break, the third term in the code, is a drain that discharges into another fixture or receptor below that fixture’s flood rim but above its trap seal [3]. In a home kitchen it appears mainly as the standpipe option the code allows [1].

How high should a dishwasher drain loop be?

Up to the underside of the counter, fastened there — that is the Florida code [1][4]. Fastened that high, the loop in a standard kitchen usually clears the makers’ minimums; a common problem is a hose that was never fastened and has slipped down toward the cabinet floor. Whirlpool lists failing to secure the loop at the correct height among the common installation errors [6].

Above that, each dishwasher maker sets its own minimum height from the floor, and the two brands we checked do not agree:

• Bosch’s current installation instructions: part of the drain hose at least 33 inches (84 cm) off the floor, otherwise the dishwasher may not drain properly; the hose run with either a high loop or an air gap [5]
• Whirlpool and KitchenAid: a loop at least 20 inches from the floor, and an air gap if it is under 20 inches [6][7]
• Bosch: the dishwasher close enough to the sink that the drain hose run stays within 92 inches, and no more than 150 inches of hose in total, including the hose to an air gap, if it is extended with Bosch’s kit [5]
• Whirlpool: no sharp bends or kinks in the line [8]

Is an air gap better than a high loop?

An air gap separates the hose from the drain with open air [3]; a high loop relies on height alone. The code requires an air gap or air break for commercial dishwashers [2] and an air gap for food-handling equipment outside homes [2]; some places require one on home dishwashers too [11][12].

For a home in Florida, the code treats a properly fastened high loop as enough [1][4], and your drinking water is protected separately on the water-supply side, by an air gap built into the machine or by a backflow preventer [1][4]. What the drain side protects is the inside of the dishwasher and the dishes in it from sink drain water: Sub-Zero’s answer describes the air gap device as preventing sink drain water from backing up into the dishwasher and possibly contaminating dishes [11].

The trade-offs are practical. An air gap needs a hole in the sink deck or counter and a second hose under the sink [12], and when the drain below it is blocked, the water comes out of its vent into the sink. A high loop needs nothing on the counter, but only works if it stays fastened up high. If a building department or the dishwasher’s instructions call for an air gap, fit one [5][6].

Can a dishwasher drain into the garbage disposal?

Yes. Florida’s code names the dishwasher connection of a food waste disposer as one of the two direct connections allowed, and the line still has to loop up under the counter first [1][4]. Without a disposal, the hose goes to a wye on the sink tailpiece; the residential code calls for a directional branch fitting there [4].

On a new disposal, the dishwasher inlet is closed with a knockout plug. InSinkErator’s instructions are to lay the disposal on its side, tap the plug out with a screwdriver and hammer, and then remove the loose plug from inside the disposal [9]; Bosch’s instructions say the same — remove the plug before connecting the drain hose to a garbage disposal [5]. If an inlet leaks, InSinkErator’s first checks are that the hose clamps are tight and the hose adapter is intact [10].

Our article on what not to put in a garbage disposal covers the disposal side — what blocks the line and what the reset button does.

Why is dirty sink water getting into my dishwasher?

A common cause is a drain below the sink that is slow or blocked while the hose has nothing to stop the water running back: a loop that is not fastened up under the counter, or no loop at all. Even a fastened loop sits below the sink rim, so it cannot hold back water standing in a backed-up sink — clear the sink drain before you run the dishwasher. The high loop exists to keep wastewater from flowing back into the appliance [6], and the code requires it to be fastened up high, not just routed there [1][4].

Start by opening the sink cabinet and following the hose from the dishwasher. If it lies along the cabinet floor or sags below the connection, it needs to be lifted and fastened to the underside of the counter. Then look at the drain itself: a blocked disposal or trap will push water toward any connection it can reach. If the kitchen line keeps blocking, that is a drain problem rather than a dishwasher one.

Why is water coming out of my dishwasher air gap?

Because the water cannot get away fast enough below it, so it comes out of the vent instead — which is the air gap doing its job. The usual places to look are the air gap itself, the hose from the air gap down to the disposal or tailpiece, and the disposal inlet.

Sub-Zero’s answer is to remove the cover and check for blocked hoses [11]. If the leak started right after a new disposal went in, check whether the knockout plug in its dishwasher inlet was removed [9]. A kink in the hose under the sink does the same thing — Whirlpool asks for a line without sharp bends or kinks [8].

Can I fix it myself, or do I need a plumber?

Lifting a sagging hose and fastening it under the counter can be a homeowner job, and so is clearing an air gap cap. Call a plumber when:

• a new disposal or dishwasher is going in and the drain connection has to be made
• the sink tailpiece has no dishwasher branch and one has to be added
• the kitchen drain itself is slow or blocking
• water is leaking at the disposal, the trap or the tailpiece
• you want to add an air gap, which means a hole in the sink deck or counter [12]

What this means in Clearwater and across Tampa Bay

The Florida Building Code is a statewide code, so the starting rule is the same in Clearwater, Tampa and across the state: a home dishwasher’s drain line loops up and is fastened under the counter; a countertop air gap is allowed but not required [1][4]. If your building department or your dishwasher’s instructions ask for an air gap, that is the one to follow.

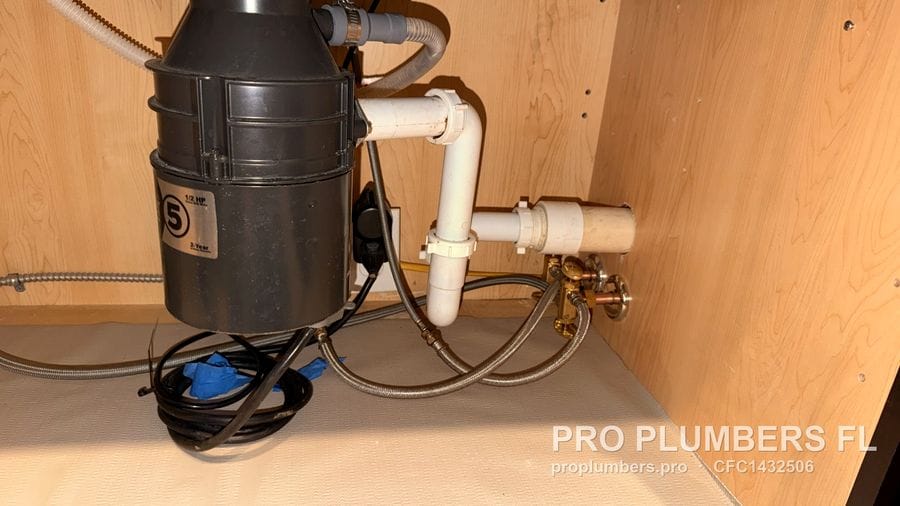

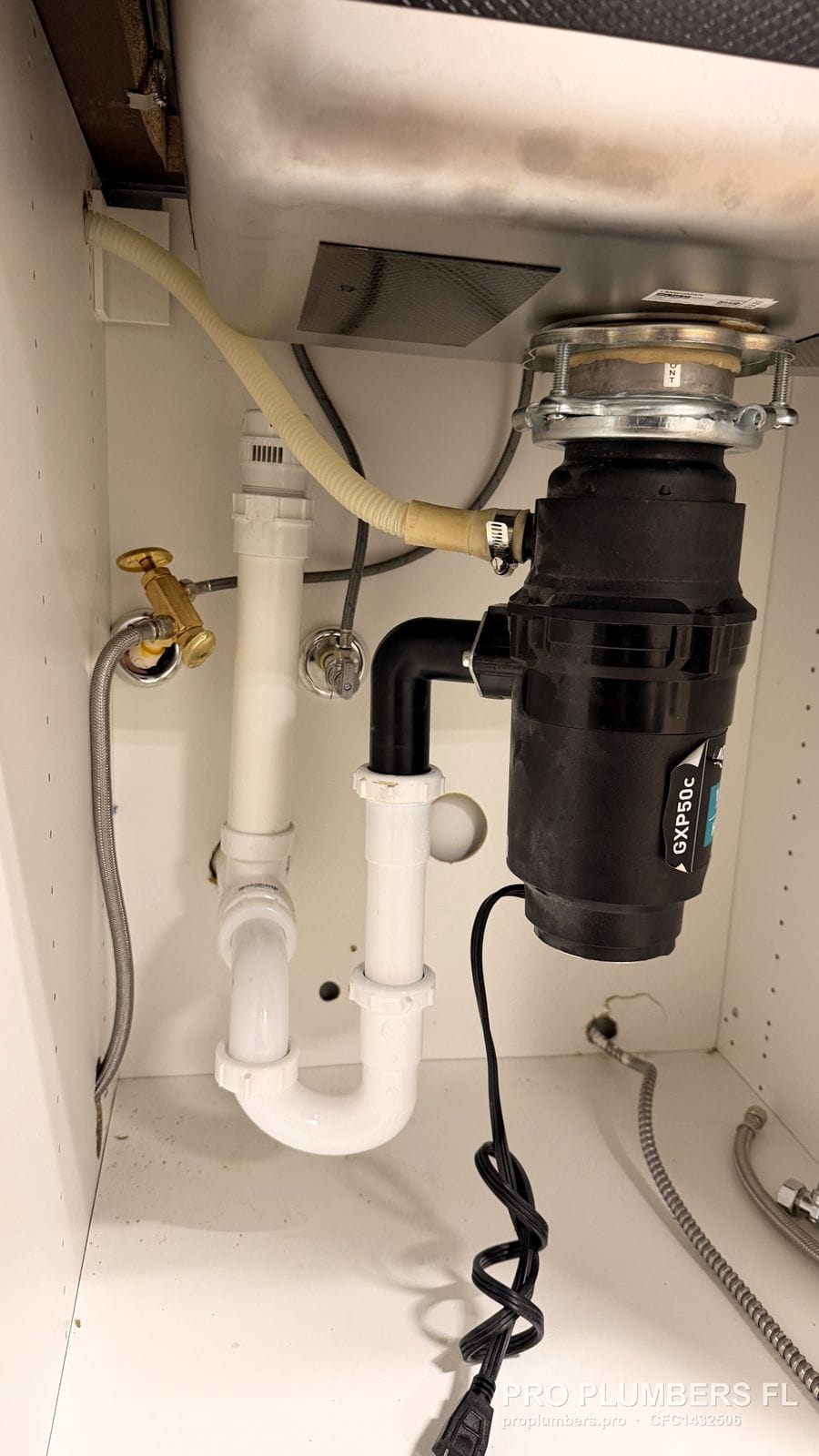

We install garbage disposals and their drain connections across Tampa Bay. On our installations the dishwasher hose is fastened up under the counter, not left lying in the cabinet — you can see it come through the cabinet side up near the counter before it drops into the disposal in the Largo job at the top of this page.

FAQ

Sources

We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.

1. [1]Florida Building Code, Plumbing, 8th Edition (2023) — Chapter 4, Fixtures, Faucets and Fixture Fittings — Florida Building Commission / International Code Council · 2023Law / code · §409.1 residential dishwashers conform to NSF 184; §409.2 dishwasher water supply protected by an air gap integral with the machine (ASME A112.1.2 or A112.1.3) or a backflow preventer per Section 608; §409.3 commercial machines per §802.1.6; §409.4 residential dishwasher waste connects directly to a wye branch fitting on the kitchen sink tailpiece, directly to the dishwasher connection of a food waste disposer, or through an air break to a standpipe, and the waste line shall rise and be securely fastened to the underside of the sink rim or counter top; §416.1 domestic disposers ASSE 1008 / UL 430; ICC title page: amendments adopted statewide, effective December 31, 2023; read in the current ICC version (Nov 2025) and checked identical in the July 2023 version; read 2026-10-18
2. [2]Florida Building Code, Plumbing, 8th Edition (2023) — Chapter 8, Indirect/Special Waste — Florida Building Commission / International Code Council · 2023Law / code · §802.1 indirect waste for food-handling equipment in other than dwelling units, dishwashing machines and the like; §802.1.1 food-handling equipment by air gap; §802.1.6 is “Commercial dishwashing machines” — discharge through an air gap or air break into a waste receptor per §802.3 (in the Florida edition this section does not cover domestic dishwashers; those are in §409.4); §802.3.1 air gap not less than twice the effective opening of the indirect waste pipe; §802.3.2 air break between the indirect waste pipe and the receptor’s trap seal; read 2026-10-18
3. [3]Florida Building Code, Plumbing, 8th Edition (2023) — Chapter 2, Definitions — Florida Building Commission / International Code Council · 2023Law / code · AIR GAP (drainage system): unobstructed vertical distance through the free atmosphere between the outlet of the waste pipe and the flood level rim of the receptacle; AIR BREAK (drainage system): a drain discharging indirectly into another fixture, receptacle or interceptor below its flood level rim and above its trap seal; INDIRECT WASTE PIPE; read 2026-10-18
4. [4]Florida Building Code, Residential, 8th Edition (2023) — Chapter 27, Plumbing Fixtures — Florida Building Commission / International Code Council · 2023Law / code · §P2717.1 dishwasher water supply protected by an air gap complying with ASME A112.1.3 or A112.1.2 installed integrally within the machine, or a backflow preventer; §P2717.2 the dishwasher discharge pipe or tubing shall rise to the underside of the counter and be fastened or otherwise held there before connecting to the head of the food-waste disposer or to a wye fitting in the sink tailpiece; §P2706.2 exception: a kitchen sink trap is acceptable as a receptor for a dishwasher; §P2707.1 directional branch fittings in tailpieces receiving disposer or dishwasher discharge; read 2026-10-18
5. [5]Dishwasher Installation Instructions (document 9001781089 B) — BSH Hausgeräte GmbH (Bosch) · 2023Manufacturer's manual · drain hose installed with either a high loop or an air gap; a portion of the drain hose at least 33 in (84 cm) off the floor, otherwise the dishwasher may not drain properly; drain hose length not to exceed 92 in as supplied; extension kit SGZ1010UC, maximum 150 in including the hose to an air gap; remove the plug from the disposal connection before connecting to a garbage disposal; if local ordinance requires an air gap, install it per its maker’s instructions; PDF dated 2023-05-02; read 2026-10-18
6. [6]Checking the Drain Loop Height — Whirlpool Corporation, product helpManufacturer's manual · drain loop at least 20 inches from the floor; if under 20 inches use an air gap; the loop prevents siphoning (water drawn back into the dishwasher by pressure changes) and wastewater flowing back into the appliance; failing to secure the loop at the correct height listed as an installation error; no date shown; read 2026-10-18
7. [7]Checking the Drain Loop Height — KitchenAid (Whirlpool Corporation), product helpManufacturer's manual · same guidance for KitchenAid dishwashers: loop at least 20 inches from the floor, air gap if under 20 inches; prevents siphoning; read 2026-10-18
8. [8]Drain Line Installation — Whirlpool Corporation, product helpManufacturer's manual · create a high loop in the drain line to prevent siphoning and backflow into the dishwasher; no sharp bends or kinks; refers to the model’s installation instructions for complete directions; read 2026-10-18
9. [9]Installing a New Garbage Disposal — InSinkErator (Whirlpool Corporation)Manufacturer's manual · if using a dishwasher, tap out the dishwasher knockout plug with the disposal on its side using a screwdriver and hammer, then remove the loose plug from inside the disposal; a dishwasher may be connected through an air gap; hose clamp on the dishwasher inlet; read 2026-10-18
10. [10]Garbage Disposal Leaking at the Dishwasher Inlet — InSinkErator (Whirlpool Corporation)Manufacturer's manual · the knockout plug at the dishwasher inlet must be removed to hook up the dishwasher drain hose; for leaks, check that the clamps are tight and the hose adapter is intact and tight; read 2026-10-18
11. [11]Dishwasher Air Gap Device — Sub-Zero Group (Sub-Zero, Wolf, Cove)Manufacturer's manual · an air gap device prevents sink drain water from backing up into the dishwasher, possibly contaminating dishes; requirements vary by state (Wisconsin given as an example); not used in all installations; usually at the rear left or right corner of the sink; to clean, remove the cover and check for blocked hoses; read 2026-10-18
12. [12]What is an Air Gap product and when should it be used? — Oatey Co.Manufacturer's manual · an air gap is installed into the countertop in some municipalities when a dishwasher is installed; the dishwasher hose connects to its inlet and a separate hose runs from its outlet to the disposal or tailpiece; check with local building officials, air gaps are not required in every municipality; read 2026-10-18
