How Much Space Does a Toilet Need — and How Far Apart Do Bathroom Sinks Have to Be?

How much space does a toilet need?

At least 15 inches on each side of its centreline and 21 inches clear in front. Florida’s residential code says a water closet, lavatory or bidet shall not be set closer than 15 inches from its center to any side wall, partition or vanity, and that there shall be at least 21 inches of clearance in front of it to any wall, fixture or door [1]. The same code tells you to space fixtures by that section and its own figure of minimum fixture clearances [4].

Put the two side rules together and a toilet between a wall and a vanity needs a space at least 30 inches wide, with the toilet centred in it. That is our arithmetic from the 15-inch rule, not a separate number in the code.

Which code applies depends on the building. The Florida Building Code, Residential covers detached one- and two-family houses and townhouses up to three stories [3]; the rule quoted above is its section P2705.1 [1]. The Florida Building Code, Plumbing, §405.3.1, gives the same 15 and 21 inches and words the side rule more widely: to any side wall, partition, vanity or other obstruction [2]. Both are 2023, 8th edition.

How far from the back wall does a toilet go?

The toilet decides that, not the code. The sections we read set the side and front clearances but no distance from the back wall [1][2]; what fixes it is the toilet’s rough-in — the distance from the finished wall to the centre of the drain. On Kohler’s Highline two-piece toilet, for example, it is a standard 12 inches [6].

The same spec sheet gives the depth that matters for the 21-inch rule: 29-3/4 inches from the finished wall to the front of the bowl, with the tank 3/4 inch off the wall [6]. Add the 21 inches the code wants in front [1], and that toilet needs about 50-3/4 inches from the back wall to the nearest wall, fixture or door facing it. That is our arithmetic for one model; a different toilet gives a different number, so measure from the spec sheet of the one you are buying.

Our article on what a smart toilet needs before installation covers the outlet, the shutoff and the room behind and above a smart toilet.

How far does a toilet have to be from a vanity or a bathtub?

Fifteen inches from the toilet’s centre to the side of the vanity. The residential code names the vanity outright, alongside a side wall and a partition [1]. Kohler’s Highline tank is 18-1/8 inches wide [6], so at exactly 15 inches there are about 6 inches between the side of that tank and the vanity — our arithmetic from the spec sheet.

A bathtub beside the toilet is not named in the residential sentence, which lists side wall, partition or vanity, and separately requires 30 inches centre to centre between adjacent fixtures [1]. The plumbing code’s version adds “or other obstruction” to the 15-inch rule [2]. Neither text gives a separate figure for a tub. The cautious reading — ours, not a number from the code — is to keep 15 inches from the toilet’s centre to the side of the tub, as to a wall; if your layout is tighter than that, ask your building department before the floor is cut.

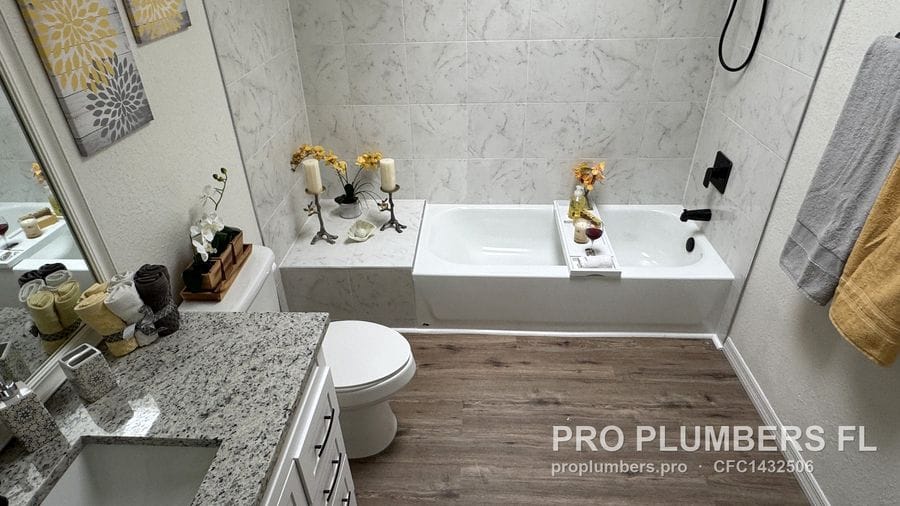

The Kenneth City bathroom below shows the usual arrangement in one room: the vanity on one side of the toilet and the tub, with a tiled ledge at its end, on the other.

How far apart do double vanity sinks have to be?

At least 30 inches centre to centre in a Florida house. The residential code puts lavatories in the same sentence as toilets and bidets: none may be set closer than 30 inches centre to centre between adjacent fixtures [1]. For two sinks, measure from the centre of one drain to the centre of the other.

The plumbing code reads differently here. Its 30-inch centre-to-centre sentence speaks of adjacent water closets, urinals or bidets, and does not name lavatories, although lavatories are in its 15-inch and 21-inch rules [2]. For a building under that code, the spacing between two sinks is a question for the building department; setting them 30 inches apart, as the residential code asks, meets the stricter of the two readings [1].

What 30 inches leaves on the counter depends on the bowls. Kohler’s Caxton rectangular undermount sink is 20-1/4 inches wide with its drain in the middle [7]; two of them at 30 inches centre to centre leave 9-3/4 inches of counter between the bowls. That is our arithmetic for one sink model.

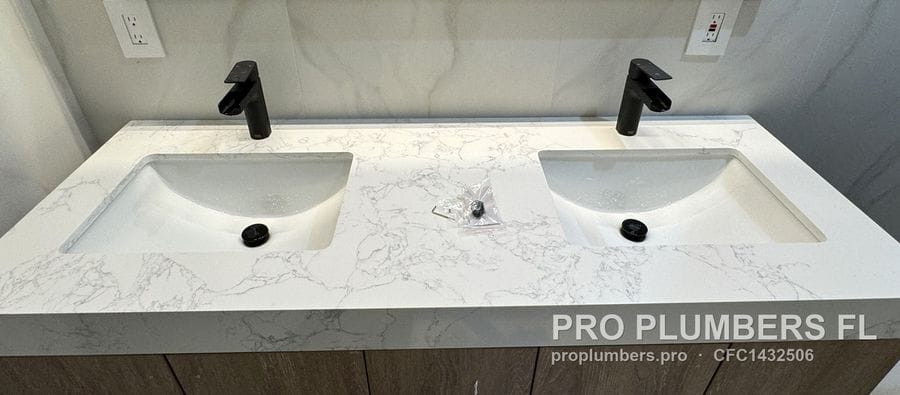

The double vanity at the top of this page is in Venice: two rectangular undermount bowls in a quartz top, each with its own matte black faucet and drain.

How wide does a double vanity need to be?

Between two walls, at least 60 inches for two sinks. Each sink centre needs 15 inches to the side wall [1], and the two centres need 30 inches between them [1]: 15 + 30 + 15 = 60. That is our arithmetic from the code, not a vanity size the code names.

Each sink also needs 21 inches clear in front of it to any wall, fixture or door — the residential and plumbing codes both include the lavatory in that rule [1][2]. In a narrow bathroom, that is often the number that decides whether a second sink fits.

And the vanity is part of the toilet’s space too: whatever its width, its side stays at least 15 inches from the toilet’s centre [1].

How is the 21 inches in front of a toilet measured?

From the front of the fixture to the nearest wall, fixture or door — the code’s own words are a clearance in front of the water closet, lavatory or bidet to any wall, fixture or door [1][2]. The codes also say the location of piping, fixtures or equipment shall not interfere with the operation of windows or doors [1][2].

Measure from where the new bowl’s front edge will be, not the old one’s: Kohler’s Highline reaches 29-3/4 inches from the finished wall [6], and bowls differ. The code text we read does not say how a door that swings into the space is treated; that is a question for your building department.

What changes in an accessible (ADA) bathroom?

The numbers get larger. Under the 2010 ADA Standards, the centreline of an accessible toilet is 16 to 18 inches from the side wall or partition — a wall must be on one side, to take a grab bar — and the clear space around it is at least 60 inches measured from the side wall and 56 inches measured from the rear wall [8]. No other fixture may sit inside that space; the one exception is that in a residential dwelling unit a lavatory may be on the rear wall at least 18 inches from the toilet centreline, if the clear space is at least 66 inches deep [8]. The seat is 17 to 19 inches above the floor, or 15 to 19 inches in residential dwelling units [8].

The 2010 Standards are written for state and local government facilities and for public accommodations and commercial facilities [8]. In a private house they are a reference you can choose to build to, for example when planning a bathroom for someone who uses a wheelchair. Kohler’s Highline spec sheet makes the same point from the product side: the toilet is ADA compliant when installed to the specific requirements of those regulations [6].

Does an older bathroom have to meet these clearances when a toilet or vanity is replaced?

New work has to meet them; the existing bathroom does not have to be rebuilt to match. Florida’s residential code says additions, alterations, renovations or repairs shall conform to what is required for a new plumbing system, without requiring the existing system to comply with the code [5].

It also allows minor alterations and repairs in the same manner and arrangement as the existing system, provided they are not hazardous and are approved [5]. Whether swapping a toilet in a tight spot counts as minor is the building official’s call, not ours. Moving a drain is different: once the toilet or the sinks are being relocated, lay them out to 15, 30 and 21 inches.

What this means in Clearwater and across Tampa Bay

The Florida Building Code is statewide, so the 15-, 30- and 21-inch minimums apply the same way in Clearwater, Tampa, Kenneth City and Venice [1][2]. Houses and townhouses follow the Residential code; other buildings follow the Plumbing code [2][3]. The sections on this page are from the 8th edition (2023).

The two bathrooms on this page are ours: a double vanity in Venice and a room with vanity, toilet and tub in Kenneth City. If you are moving a toilet or adding a second sink, call 727-470-7126 with the room’s measurements and we will tell you what fits before the floor or the wall is opened.

FAQ

Sources

We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.

1. [1]2023 Florida Building Code, Residential, 8th Edition — Chapter 27, Plumbing Fixtures (§P2705.1) — Florida Building Commission / International Code Council · 2023Law / code · §P2705.1 item on water closets, lavatories and bidets: not closer than 15 in from center to any side wall, partition or vanity, or closer than 30 in center-to-center between adjacent fixtures; not less than 21 in clearance in front to any wall, fixture or door; location of piping, fixtures or equipment shall not interfere with windows or doors; codes.iccsafe.org returns 403 to our fetcher, so read on up.codes (2023 FBC - Residential, 8th edition) 2026-10-26
2. [2]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 4, §405.3.1 and §405.3.3 — Florida Building Commission / International Code Council · 2023Law / code · §405.3.1: water closet, urinal, lavatory or bidet not closer than 15 in from its center to any side wall, partition, vanity or other obstruction; where partitions or other obstructions do not separate adjacent water closets, urinals or bidets, not closer than 30 in center to center; not less than 21 in clearance in front of a water closet, urinal, lavatory or bidet to any wall, fixture or door; compartments 30 x 60 in (floor-mounted) and 30 x 56 in (wall-hung); §405.3.3: fixtures not to interfere with windows, doors or other egress openings; read on up.codes (2023 FBC - Plumbing, 8th edition) 2026-10-26 because codes.iccsafe.org returns 403
3. [3]2023 Florida Building Code, Residential, 8th Edition — Chapter 1, §R101.2 Scope — Florida Building Commission / International Code Council · 2023Law / code · applies to detached one- and two-family dwellings and townhouses not more than three stories above grade plane with a separate means of egress; read on up.codes 2026-10-26
4. [4]2023 Florida Building Code, Residential, 8th Edition — Chapter 3, §R307.1 Space Required — Florida Building Commission / International Code Council · 2023Law / code · fixtures shall be spaced in accordance with Figure R307.1 (Minimum Fixture Clearances) and Section P2705.1; the figure itself is an image we did not read, so no number on this page is taken from it; read on up.codes 2026-10-26
5. [5]2023 Florida Building Code, Residential, 8th Edition — Chapter 25, §P2502.2 Additions, Alterations or Repairs — Florida Building Commission / International Code Council · 2023Law / code · additions, alterations, renovations or repairs conform to what is required for a new plumbing system without requiring the existing system to comply; minor additions, alterations, renovations and repairs permitted in the same manner and arrangement as the existing system, provided not hazardous and approved; read on up.codes 2026-10-26
6. [6]Highline Two-piece elongated toilet, 1.28 gpf, K-3999 — Specification Sheet — Kohler Co. · 2024Manufacturer's manual · p. 1: standard 12-in (305 mm) rough-in; p. 2 drawing: 29-3/4 in (756 mm) from finished wall to front of bowl, tank 3/4 in (19 mm) off the finished wall, tank 18-1/8 in (460 mm) wide; ADA compliant when installed to the specific requirements of these regulations; sheet dated 6-8-2024; read 2026-10-26
7. [7]Caxton 20-1/2" rectangular undermount bathroom sink, K-20000 — Specification Sheet — Kohler Co. · 2026Manufacturer's manual · p. 3 drawing: 20-1/4 in (514 mm) overall width, drain centred 10 in (253 mm) from the side of the bowl; basin 17-5/8 x 13-1/8 in; sheet dated 10-24-2026; read 2026-10-26
8. [8]2010 ADA Standards for Accessible Design — §604 Water Closets and Toilet Compartments — US Department of Justice · 2010Government or standards body · §604.2: centreline 16–18 in from the side wall or partition (17–19 in in an ambulatory accessible compartment), wall or partition to the rear and one side; §604.3.1: clearance 60 in min from the side wall and 56 in min from the rear wall; §604.3.2: no other fixtures within, exception in residential dwelling units for a lavatory on the rear wall 18 in min from the centreline with 66 in clearance; §604.4: seat 17–19 in, 15–19 in in residential dwelling units; the page presents the standards for title II (state and local government facilities) and title III (public accommodations and commercial facilities); read 2026-10-26
