Sediment Prefilters: What the Micron Number Means
A sediment prefilter catches particles — sand, rust flakes, scale, silt — before they reach your softener, water heater and fixtures. The micron rating is the pore size it is built around, so a 5-micron cartridge stops finer material than a 20-micron one. Finer is not automatically better: the finer the cartridge, the faster it clogs and the more pressure it costs you. A sediment cartridge improves how water looks and protects equipment; it is not a health-effect filter — for that, the label to look for is NSF/ANSI 53 or 58 [1][2].
What does the micron rating on a sediment filter mean?
It is the pore size the cartridge is built around: a 5-micron cartridge stops finer particles than a 20-micron one, and the words “nominal” and “absolute” on the box are two different promises [1].
A micron is a thousandth of a millimetre. A rating of 5 micron means the cartridge is built around pores of about that size — but read the wording on the box, because "nominal" and "absolute" are different promises. The CDC explains the difference: with an absolute rating every pore is that size or smaller, so anything larger is caught; a nominal (mean) rating is an average, so some pores are larger and some particles bigger than the number get through [1].
For a whole-house prefilter the practical range is 5 to 50 micron. Well water with visible grit usually starts coarse — 20 or 30 micron — so the cartridge does not blind in a week. City water that is only occasionally cloudy can run finer.
- 20–50 micron — visible grit, sand, well water, first stage of two
- 5–10 micron — fine silt, rust, protecting a softener or a tankless heater
- 1 micron and below — a polishing stage, not a whole-house prefilter
- Nominal vs absolute — the same number can mean two different things
What does a whole-house sediment filter protect?
Everything expensive downstream. Grit scores the seats in mixing valves and toilet fills, settles in a water heater, fouls the injector on a softener, and blocks the inlet screen on a tankless heater — which then shows a flow fault that looks like a broken appliance.
That is the honest argument for a prefilter: it is the cheapest replaceable part in the system, and it stands in front of the parts that are not cheap.
Does a sediment filter make water safe to drink?
No. It improves how water looks and protects equipment; a filter that reduces a contaminant with a health effect is certified to NSF/ANSI 53, or 58 for reverse osmosis [2].
It helps to know what a sediment filter is not. NSF describes NSF/ANSI 42 as covering aesthetic impurities such as chlorine, taste and odour, and NSF/ANSI 53 as covering contaminants with a health effect; NSF/ANSI 58 is reverse osmosis [2]. The CDC points at the same thing from the owner’s side: check the certification on the label for the specific substance you want removed [1].
A sediment cartridge is an aesthetic and equipment-protection part. It makes water look and behave better and protects what is downstream. It does not make unsafe water safe, and no honest label claims it does.
How often should you change a whole-house sediment filter?
By pressure, not by calendar. The cartridge is doing its job right up until the flow starts dropping — a shower that has gone weak while everything else in the house is the same is the classic sign.

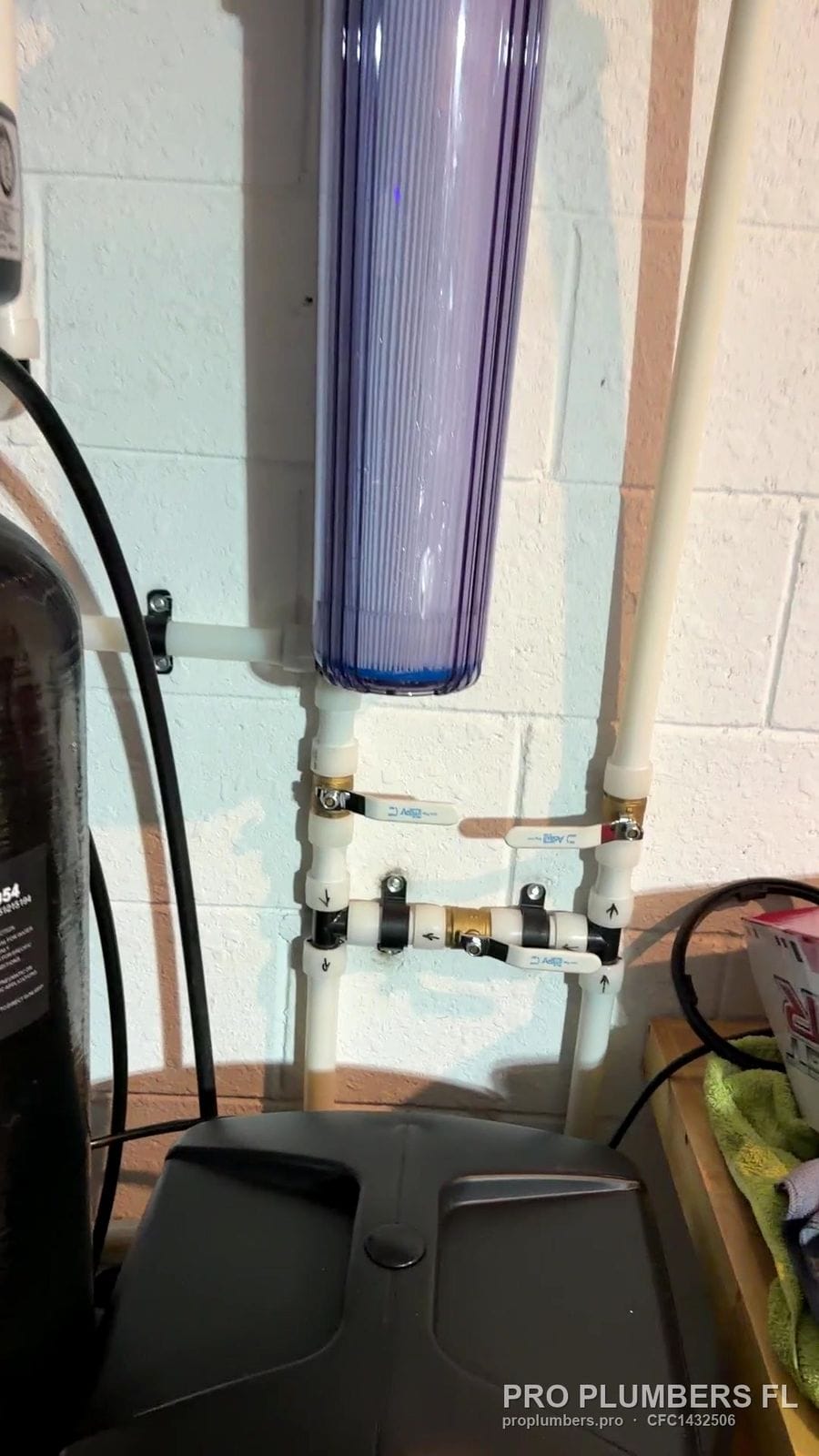

A clear housing, like the one in these photographs, turns this into a two-second visual check. Where the housing is opaque, fit a gauge or just keep to a schedule and write the date on the housing with a marker.
Two habits worth having: keep a spare cartridge in the garage, and shut off and depressurise before opening the housing — the O-ring is the part that decides whether the housing leaks afterwards, so clean and grease it rather than forcing the cap.
What this means in Tampa Bay
On a well, a prefilter is not optional — sand and iron particles arrive with the water and everything downstream pays for it. On city water the usual reason we fit one is to protect a softener or a tankless heater, and to stop the grit that arrives after a main break from reaching every aerator in the house.

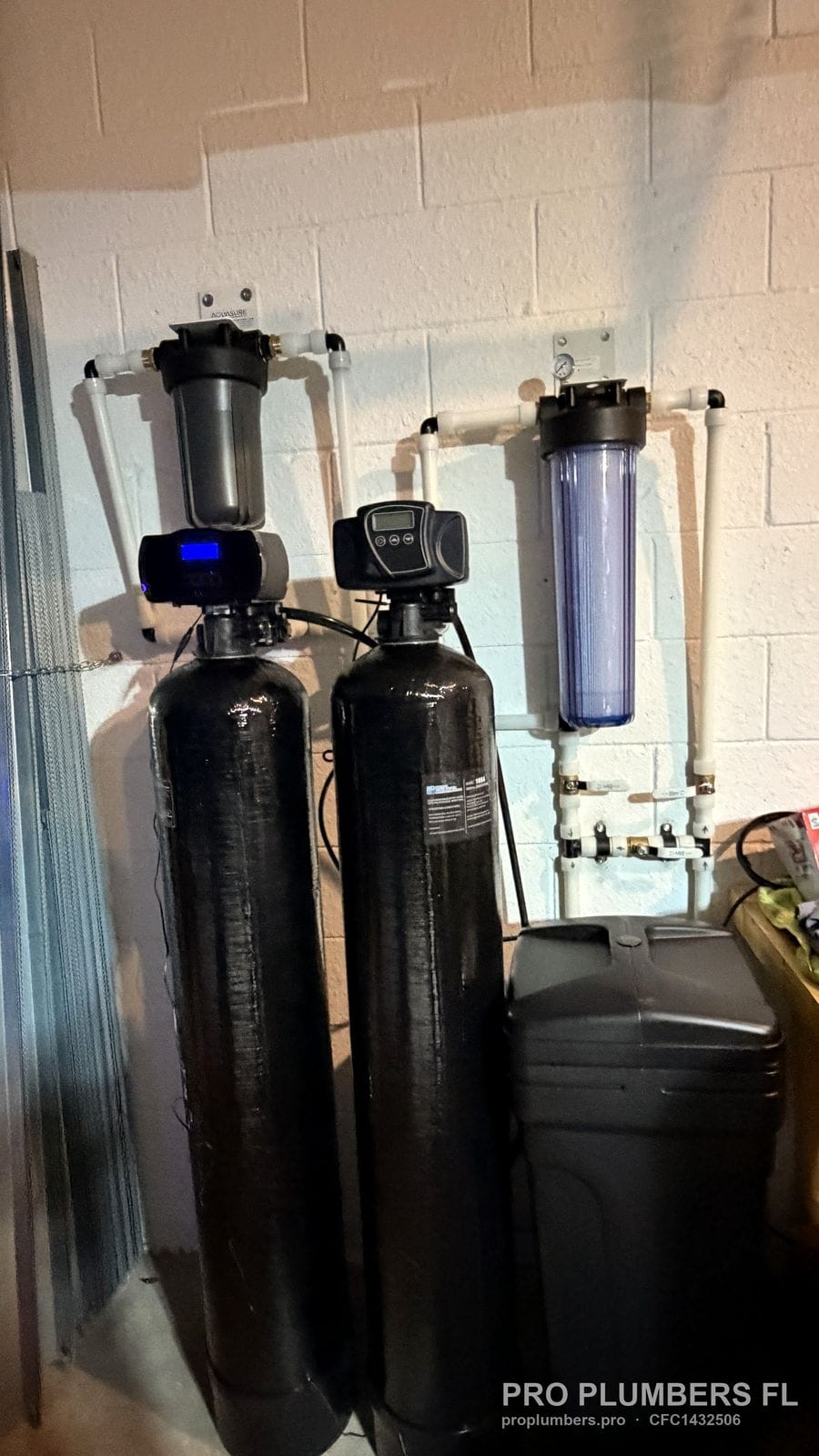

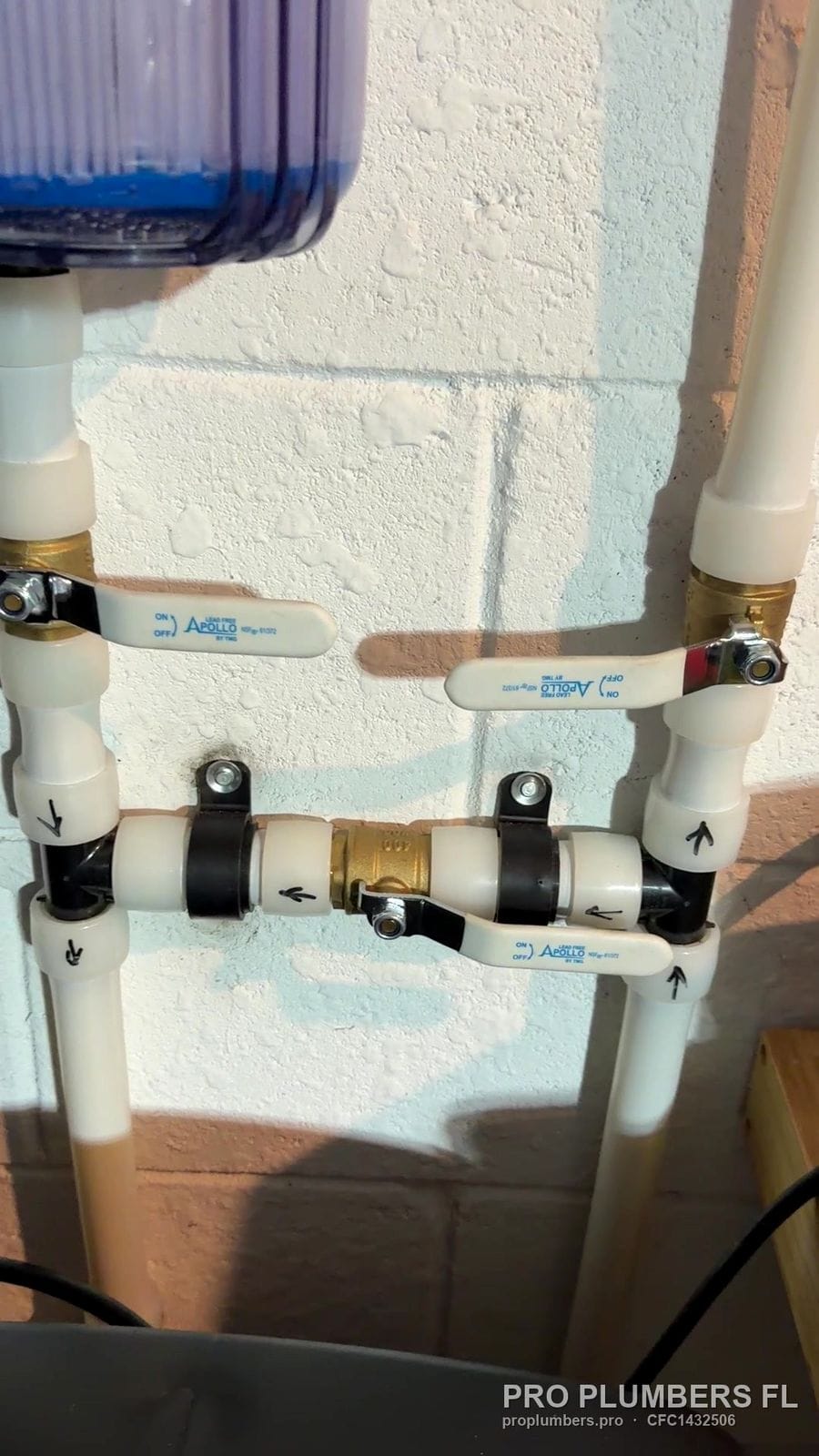

Where a house already has a two-tank system, the prefilter is usually the only part that needs anything from the owner. That is why we put it where a person can reach it, with bypass valves so the house keeps its water while the cartridge is changed.
Start with the prefilter — and if a new cartridge does not fix it, call us before you start replacing fixtures.
Call 727-470-7126FAQ
Is a 1-micron filter better than a 20-micron one?
Only for the particles it is meant to catch. A 1-micron cartridge on a well would clog in days and cost you pressure. Match the rating to the water and, where the sediment is heavy, use a coarse stage followed by a finer one.
Which micron sediment filter should I use for a whole house?
Match it to the water. Visible grit, sand or well water: start coarse, 20–50 micron, so the cartridge does not clog in days. City water, or protecting a softener or tankless heater: 5–10 micron. Below that is a polishing stage, not a whole-house prefilter. For heavy sediment, use a coarse stage followed by a finer one.
How often should I change a whole-house sediment filter?
When pressure starts to drop, or on a written schedule if you would rather not think about it. A clear housing makes the decision for you.
Will a sediment filter remove chlorine or smell?
No. That is carbon, and it is a different cartridge — often the second stage in the same rack.
Does a sediment filter make my water safe to drink?
No. A sediment cartridge improves appearance and protects equipment. A filter that reduces a contaminant with a health effect is certified to NSF/ANSI 53, and reverse osmosis to NSF/ANSI 58 — check the label for the specific contaminant.
The housing leaks after I changed the cartridge.
Almost always the O-ring: it needs to be clean, undamaged, lightly greased with silicone and seated properly. Overtightening the housing does not fix a bad O-ring.
Sources
We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.
- [1]About Choosing Home Water Filters — US Centers for Disease Control and PreventionGovernment or standards body · nominal vs absolute pore size; check the NSF certification on the label for the specific substance
- [2]NSF Standards for Water Treatment Systems — NSFGovernment or standards body · scope of NSF/ANSI 42 (aesthetic: chlorine, taste/odour), 53 (health effects) and 58 (reverse osmosis)
