How High Should a Washing-Machine Standpipe Be — and Why Does the Drain Overflow or Gurgle?
In Florida the top of a washing-machine standpipe must be at least 18 inches and no more than 42 inches above the weir of its trap, and the trap and drain must be at least 2 inches in diameter [1][2]. Washer makers add a floor-based rule — Whirlpool wants the top of the standpipe at least 30 inches high, LG wants the hose end 29 to 96 inches above the bottom of the washer — so a good drain meets both [7][8]. The hose hangs loosely in the top of the pipe, never sealed in: that open gap is the air break, and it stops the washer siphoning [2][7][8]. In our experience, a drain that overflows is usually too small or partly blocked for the rate a washer pumps out; one that gurgles is usually short of air from its vent [1][5][7].
How high should a washing machine standpipe be?
Between 18 and 42 inches above the trap weir. That is the Florida Building Code, Plumbing: standpipes must be individually trapped and must extend not less than 18 inches but not more than 42 inches above the trap weir [1]. The weir is the point where water spills out of the trap into the pipe beyond it, so the code measures the standpipe from its own trap, not from the floor. The trap chapter says the same thing in its own words: the height of a clothes washer standpipe above its trap follows that section [4].
The washer makers measure from the floor. Whirlpool’s installation instructions for its front-load washer say the top of the standpipe must be at least 30 inches high, and no higher than 96 inches from the bottom of the washer [7]. LG’s front-load instructions say not to put the end of the drain hose lower than 29 inches or higher than 96 inches above the bottom of the washer, nor more than 60 inches away from it [8]; its top-load guide repeats the 96-inch limit [9].
A standpipe that meets both rules is not hard to lay out. For example, a trap whose weir sits a few inches above the floor and a standpipe 36 inches above that weir puts the top of the pipe comfortably above 30 inches from the floor and well inside the 18-to-42 range. That example is our arithmetic, not a figure from either source; your washer’s own instructions are the ones to check.
The Florida code we read does not set a separate height for the trap above the floor; it measures the standpipe from the weir [1][4]. One variation it does allow: a laundry tray may drain, without its own trap, into the washer standpipe — in that case the standpipe must rise at least 30 inches above its trap weir and above the rim of the tray, and the tray outlet must be within 30 inches of the standpipe [1].
What size pipe does a washing machine drain need — 1½ or 2 inch?
Two inch. Florida’s code says the trap and fixture drain for an automatic clothes washer standpipe must be at least 2 inches in diameter, and that the drain must connect to a branch or stack of 3 inches or larger [2]. The code’s fixture-unit table gives a residential clothes washer a load of 2 drainage fixture units and a minimum trap size of 2 inches — larger than the 1½-inch trap it allows a kitchen sink, a bathtub or a laundry tray [3].
The reason is the rate. A washer does not drain like a sink; its pump pushes the water out. Whirlpool’s instructions put a number on it: a standpipe drain at least 2 inches in diameter, with a minimum carry-away capacity of 17 gallons per minute [7]. The same instructions list an adapter for a 1-inch standpipe — older laundries do have them — but a pipe that small is well under what Florida’s code asks of a washer drain today [2][7].
The pipe under the washer box at the top of this page is printed “2"” — that is the size the code and the manufacturer both ask for.
How far should the washer drain hose go into the standpipe — and should it be sealed?
Only a few inches, and never sealed. Whirlpool’s instructions say only 4.5 inches of drain hose should be inside the standpipe, to avoid siphoning, and to secure the hose with a cable tie [7]. LG says not to push the hose more than 8 inches into the standpipe, because that can cause siphoning, odors or improper draining [8].
The gap around the hose is not a sloppy fit; it is required. Florida’s code says the waste from an automatic clothes washer must discharge through an air break into a standpipe or into a laundry sink [2] — an arrangement in which the drain discharges into the receptor below its flood rim and above its trap seal, open to the air [6]. LG puts it plainly: never create an airtight seal between the hose and the drain with tape or other means; without that air gap, water can be siphoned out of the tub [8].
Use the hook the hose came with. Whirlpool says the drain hose form must be used and not to force extra hose down the standpipe [7]; LG’s top-load guide says to fit the elbow bracket within 4 inches of the hose end, and warns that hose sticking out further than that can let mold spread into the washer [9]. The hose itself, and the box it hangs in, are covered in our article on washing machine hoses and washer boxes.
Why does my washer drain while it is still filling?
Usually because the drain is siphoning: the hose is pushed too far down the standpipe, sealed into it, or the drain is too low. Whirlpool and LG both tie siphoning to too much hose inside the pipe, LG also to a hose sealed into the drain, and Whirlpool asks for a siphon break when the drain is a low floor drain; LG names the result — poor wash and rinse performance, or damage to the clothes [7][8].
Check the three things the instructions set: how much hose is inside the pipe (Whirlpool 4.5 inches, LG no more than 8) [7][8], whether anything has sealed the gap around it [8], and how high the top of the drain is from the floor (Whirlpool at least 30 inches, LG at least 29) [7][8]. A washer that drains into a floor drain is the low case: Whirlpool says that set-up needs a siphon break kit, with the siphon break at least 28 inches above the bottom of the washer [7].
Why does my washer drain pipe overflow?
Because water is reaching the standpipe faster than it can get away. The washer pumps out at a set rate — Whirlpool’s instructions ask the drain to carry at least 17 gallons a minute [7] — and Florida’s code requires a waste receptor to be sized for the maximum discharge it receives and installed to prevent splashing or flooding [1]. When the standpipe spills, something downstream is taking less than the pump is sending.
In our trade experience that is usually one of these, roughly in this order:
- Lint and debris narrowing the trap or the line beyond it — Whirlpool sells a drain protector for exactly this, listed under “lint clogged drain” [7]
- A standpipe or trap smaller than 2 inches, which the current code would not allow for a washer [2][7]
- A standpipe at or near the 18-inch minimum, which leaves little height to hold the surge while the pipe below catches up (our reasoning, not a code statement)
- A blockage further down the branch or the main line — the likely one when a tub, toilet or floor drain also backs up while the washer pumps out
- Too much hose forced into the pipe, which Whirlpool and LG both tell you not to do [7][8]
If the standpipe is spilling: stop the washer and do not run another load until the drain is cleared — a bucket fills in seconds at the rate a washer pumps. Keep clear of outlets and cords if water has reached them. If other drains in the house back up at the same time, call — that points past the laundry.
Why does my washer drain gurgle — or a sink gurgle when the washer drains?
Usually because the drain is short of air. A washer pumping out fills a 2-inch pipe in a hurry, and the falling water needs air behind it. Florida’s code requires a vent system that lets air in and out so that no trap seal is subjected to a pressure difference of more than 1 inch of water column [5]. When the vent cannot supply that air, the water pulls it from wherever it can — often through a trap, which is the gurgle you hear. That explanation is ours, built on the code’s purpose for vents; our article on why a drain needs a vent covers the mechanism.
The code also limits how far a trap may sit from its vent: for a 2-inch trap, 8 feet of fixture drain at ¼ inch of fall per foot, and the total fall may not exceed the pipe’s own diameter [5]. A washer standpipe added on a long run with no vent nearby is a common place for that to go wrong.
A partial blockage gurgles too, because the water backs up and lets air bubble through. If the gurgle comes with slow draining or a standpipe that rises, treat it as the overflow problem above; if it comes with a smell, the trap seal is probably being pulled — see our article on why a dry trap smells.
Does a washer standpipe need a P-trap?
Yes. Florida’s code says standpipes shall be individually trapped, and that access must be provided to the standpipe and drain for rodding [1]. The trap is a water seal of 2 to 4 inches that keeps sewer air out of the laundry [4][6].
The trap rules are the ordinary ones: one trap per fixture and no double trapping, and no S-traps, bell traps or drum traps [4]. Waste receptors must not be hidden in concealed spaces, attics or crawl spaces, and must be reachable [1] — one reason a recessed washer box with the drain opening in its face is the usual way to finish the wall.

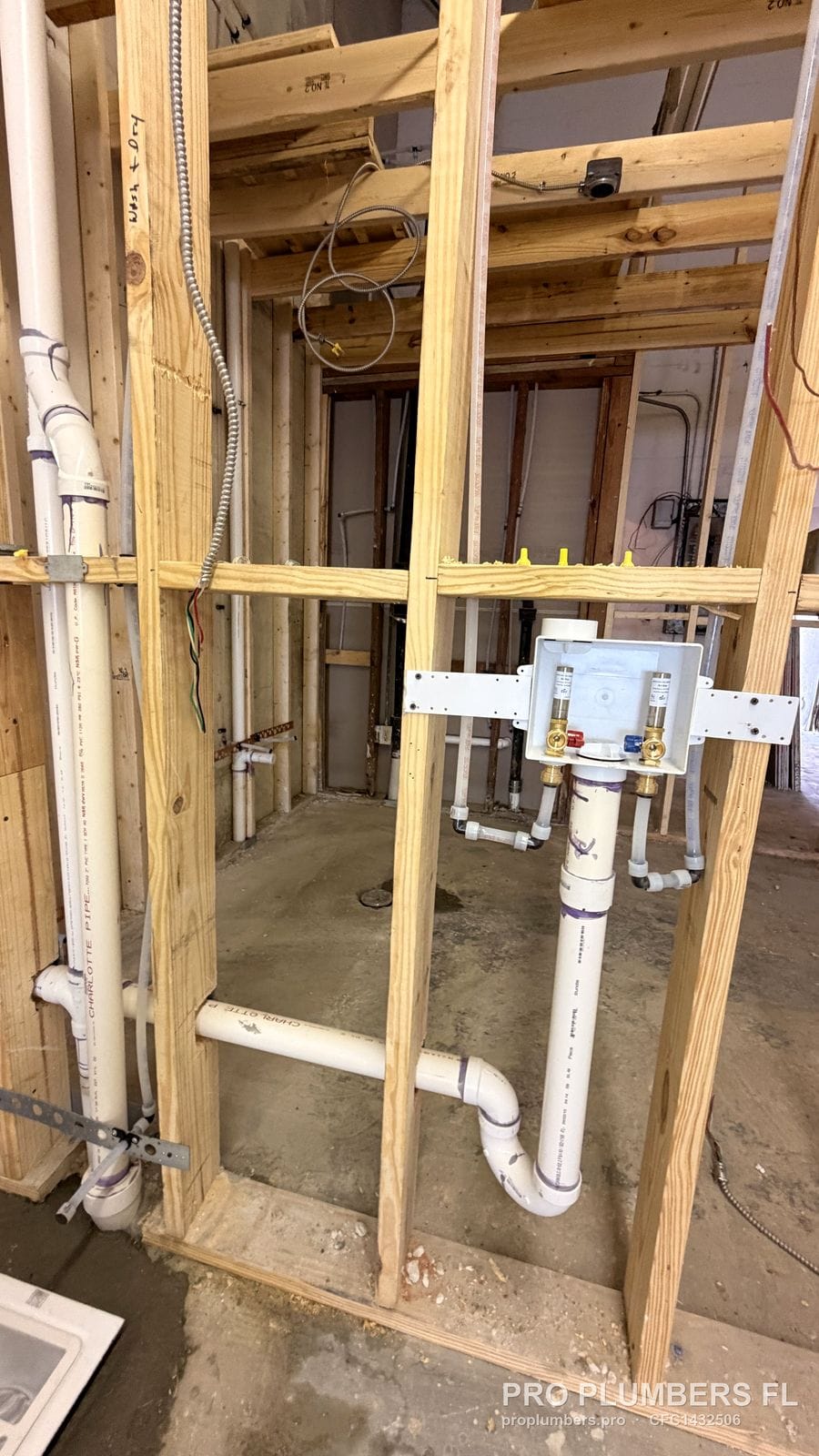

The photograph below is ours: a washer box set in new framing in Brooksville, with the PVC drain dropping to its trap and the trap arm running to the drain line.
Can I fix a washer drain myself, or do I need a plumber?
Some of it, yes. Setting the hose depth, taking off tape or anything that seals the hose into the pipe, fitting the hose form or elbow bracket, and securing the hose with a cable tie are all in the washer makers’ own instructions [7][8][9]. Call a plumber when:
- the standpipe is shorter than 18 inches or taller than 42 inches above its trap, or the top is below what your washer’s instructions ask [1][7][8]
- the standpipe or trap is smaller than 2 inches [2]
- there is no trap under the standpipe, or it is an S-trap [1][4]
- the standpipe overflows again after the hose and lint are sorted out
- other drains back up or gurgle when the washer pumps out
- there is water inside the wall or under the floor covering
What this means in Clearwater and across Tampa Bay
The Florida Building Code, Plumbing is a statewide code, so the 18-to-42-inch standpipe, the 2-inch trap and drain and the air-break rule apply the same way in Clearwater, Tampa and the rest of the state [1][2]. The sections quoted on this page are from the 8th edition (2023).

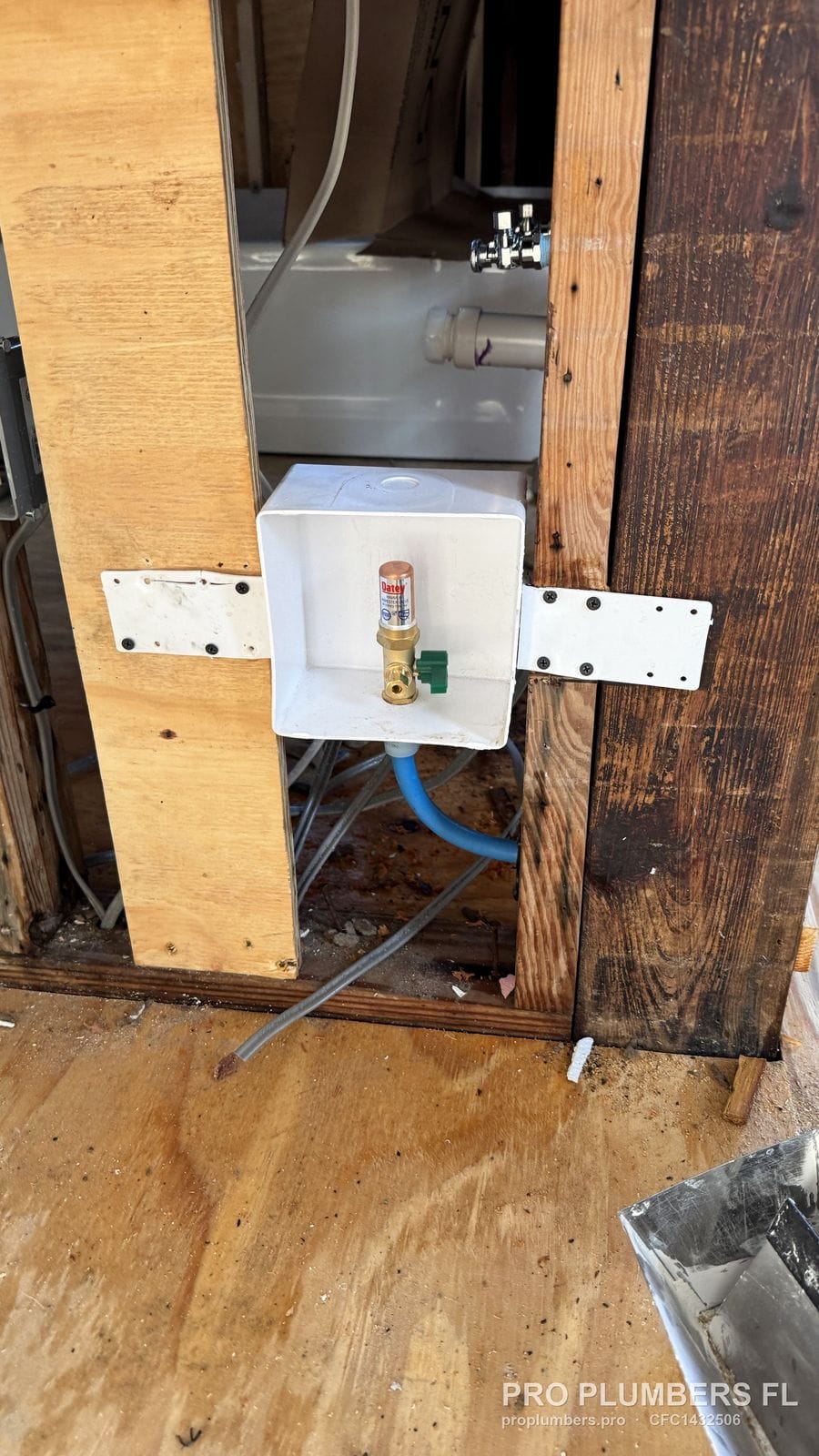

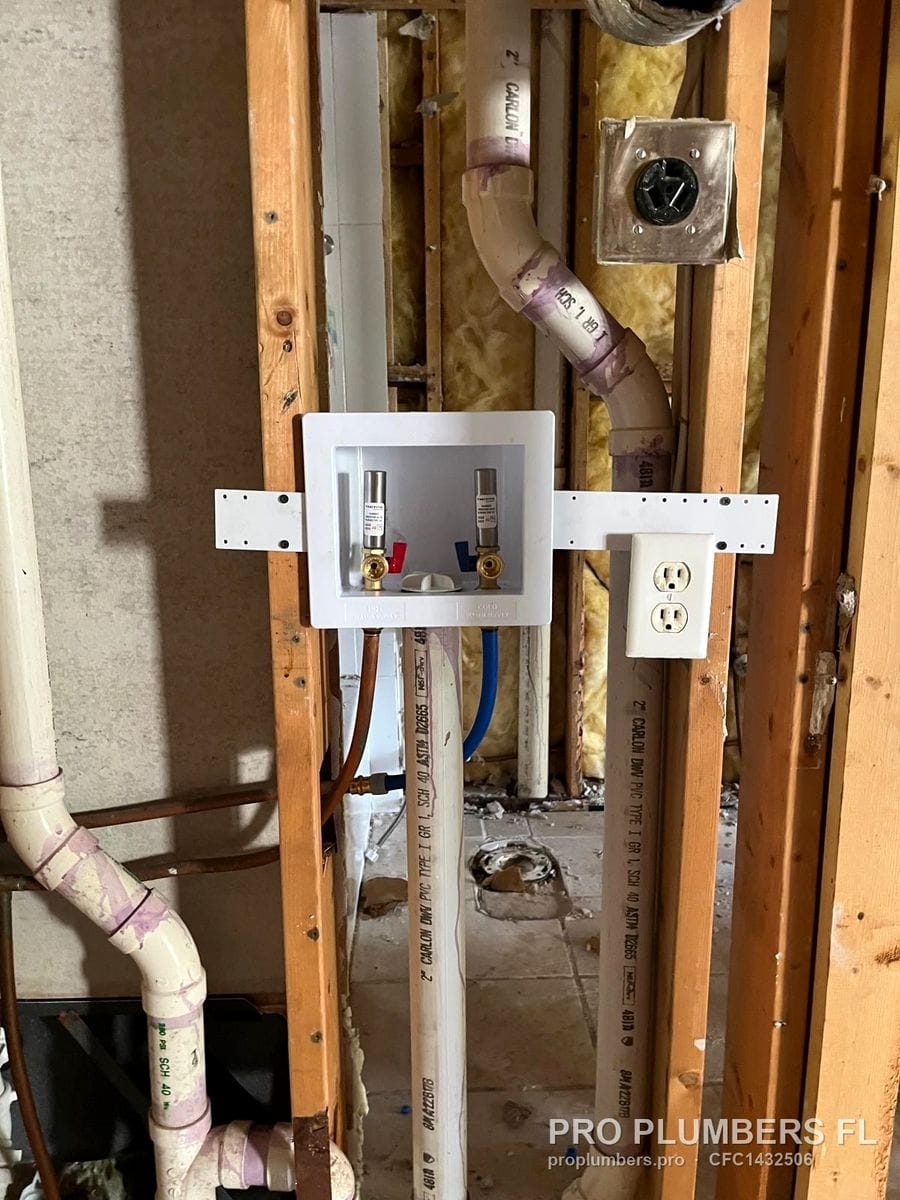

We set washer boxes, standpipes and traps when a laundry wall is open — the photographs on this page are ours, from Clearwater, Brooksville and South Pasadena. If your washer drain overflows, siphons or gurgles, call 727-470-7126 and tell us what it does and when.
Tell us what it does and when. Kate, our AI voice assistant, answers the phone 24/7 and takes the request; overnight requests are reviewed first thing in the morning, and site work is Monday to Friday, 8am to 6pm. We speak English and Russian.
Call 727-470-7126FAQ
Can a washer standpipe be too tall?
Yes. Florida’s code caps it at 42 inches above the trap weir [1], and Whirlpool and LG both say not to put the drain higher than 96 inches above the bottom of the washer [7][8]. Above that, Whirlpool says a sump pump is needed [7].
Can I use a 1½-inch drain for a washing machine?
Not under the current Florida code: the trap and fixture drain for a washer standpipe must be at least 2 inches, connecting to a 3-inch or larger branch or stack [2][3]. Whirlpool’s minimum is a 2-inch standpipe that carries away 17 gallons a minute [7].
Should the washer drain hose be sealed to the standpipe?
No. The code requires the washer to discharge through an air break [2], and LG says never to seal the hose to the drain with tape or anything else, because without the gap water can be siphoned out of the tub [8]. Secure the hose with a cable tie instead [7].
Why does my washer drain smell like sewer?
Often because the trap under the standpipe is losing its water — pulled out by a drain that is short of air, or siphoned. LG lists odors among the results of pushing the hose more than 8 inches into the standpipe [8]. If the smell comes with gurgling, the vent is the next suspect [5].
Why does my toilet gurgle when the washer drains?
Usually because the drain is short of air and the falling water is pulling it through the toilet’s trap. Florida’s code requires vents so that no trap seal sees more than 1 inch of water column of pressure difference [5]. A gurgle that comes with slow draining can also mean a partial blockage.
Can a washing machine drain into a laundry sink?
Yes — the code allows the washer to discharge into a laundry sink instead of a standpipe [2]. Whirlpool asks for a tub of at least 20 gallons with its top at least 30 inches above the floor [7], and LG says to hang the hose over the side [9].
Can a washing machine drain into a floor drain?
Florida’s code sends a washer’s waste to a standpipe or a laundry sink through an air break; only washers that drain by gravity may use a waste receptor or an approved trench drain [2]. Most home washers pump their water out. LG says not to use its drain hose with a floor drain [8]; Whirlpool sells a siphon-break kit for floor-drain set-ups, with the break at least 28 inches above the bottom of the washer [7] — check with your building department before relying on one.
Is an overflowing washer drain an emergency?
Water on the floor is. Stop the washer, do not start another load, keep clear of outlets and cords if the water has reached them, and call. Kate, our AI voice assistant, answers 24/7 and takes the request; site work is Monday to Friday, 8am to 6pm.
Sources
We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.
- [1]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 8, Indirect/Special Waste (§802.3, §802.3.2, §802.4, §802.4.1, §802.4.3, §802.4.3.1) — Florida Building Commission / International Code Council · 2023Law / code · §802.4.3: standpipes individually trapped, not less than 18 in and not greater than 42 in above the trap weir, access for rodding; §802.4.3.1: laundry tray into a washer standpipe — standpipe at least 30 in above its trap weir and above the tray rim, tray outlet within 30 in; §802.4: waste receptors not in concealed spaces, attics or crawl spaces, ready access; §802.4.1: receptor sized for the maximum discharge, installed to prevent splashing or flooding; §802.3.2 air break; read 2026-10-18
- [2]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 4, §406 Automatic Clothes Washers — Florida Building Commission / International Code Council · 2023Law / code · §406.2: washer waste discharges through an air break into a standpipe per §802.4.3 or into a laundry sink; trap and fixture drain not less than 2 in; fixture drain connects to a 3-in or larger branch or stack; gravity-discharge washers may drain to a waste receptor or approved trench drain; §406.1 supply backflow protection; read 2026-10-18
- [3]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 7, Table 709.1 Drainage Fixture Units — Florida Building Commission / International Code Council · 2023Law / code · automatic clothes washer, residential: 2 dfu, minimum trap 2 in (commercial 3 dfu, 2 in); kitchen sink, bathtub, laundry tray: 1½-in trap; footnote g points to §406.2 for washer standpipe drain sizing; read 2026-10-18
- [4]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 10, §1002 Trap Requirements — Florida Building Commission / International Code Council · 2023Law / code · §1002.1: each fixture separately trapped, no double trapping, height of a clothes washer standpipe above its trap per §802.4.3; §1002.3: S-traps, bell traps, drum traps and crown-vented traps prohibited; §1002.4: trap seal not less than 2 in and not more than 4 in; read 2026-10-18
- [5]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 9, Vents (§901.2, Table 909.1, §909.2) — Florida Building Commission / International Code Council · 2023Law / code · §901.2: vent piping must admit and emit air so no trap seal sees a pressure differential of more than 1 in of water column; Table 909.1: 2-in trap at most 8 ft from its vent at ¼ in per ft; §909.2: total fall of the fixture drain not more than its diameter; read 2026-10-18
- [6]2023 Florida Building Code, Plumbing, 8th Edition — Chapter 2, Definitions (Air break, Trap seal) — Florida Building Commission / International Code Council · 2023Law / code · air break: a drain discharging indirectly into a receptor below its flood level rim and above its trap seal; trap seal: the depth of liquid that would have to be removed from a full trap before air could pass through; read 2026-10-18
- [7]Washer Installation Instructions (front-load, W10631155A) — Whirlpool Corporation (document hosted by retailer AJ Madison) · 2013Manufacturer's manual · standpipe minimum 2 in diameter, minimum carry-away 17 gal per minute; top of standpipe at least 30 in high, no higher than 96 in from the bottom of the washer, sump pump above that; only 4.5 in of hose inside the standpipe to avoid siphoning, drain hose form must be used, secure with a cable tie, do not force excess hose in; laundry tub at least 20 gal, top at least 30 in above the floor; floor drain needs a siphon break kit, break at least 28 in from the bottom of the washer; 1-in standpipe adapter and a drain protector for a lint-clogged drain listed among alternate parts; read 2026-10-18
- [8]LG WM3997HWA Quick Install & Clearances (front-load washer) — LG Electronics (excerpt hosted by retailer The Home Depot) · 2017Manufacturer's manual · do not insert the hose more than 8 in into the standpipe — siphoning, odors or improper draining; hose end not lower than 29 in or higher than 96 in above the bottom of the washer, nor more than 60 in away; never create an airtight seal between hose and drain — without an air gap water can be siphoned out of the tub, giving poor wash/rinse performance or clothing damage; LG WM3997HWA Quick Install & Clearances page (dated 8/22/17); read 2026-10-18
- [9]Top Load Washer — How to Install the Drain Hose — LG Electronics USA · 2026Manufacturer's manual · do not install the end of the drain hose higher than 96 in above the bottom of the washer; fit the elbow bracket within 4 in of the hose end, or mold could spread into the washer; standpipe or laundry tub (hang the hose over the side); page dated 05/29/2026; read 2026-10-18
