What Is Under Your Shower Floor — and Why It Matters

Why the tile is not the waterproofing

Grout absorbs water. Tile joints move. A shower floor is a wet surface with hundreds of joints in it, and the honest way to build one is to assume water gets through and to plan where it goes.

So a traditional built-up shower has two layers that matter: the visible one you stand on, and the membrane underneath, sloped to the drain, that catches whatever passes through. The drain is designed for this too — a clamping-ring drain has weep holes at the liner level so water that reaches the membrane can leave [3].

What the code actually requires

This is one of the places where the code is specific, because failures here are expensive and invisible for years. In Florida, a floor under a shower that is not a prefabricated receptor must be lined and made watertight; PVC sheet must meet ASTM D4551 and be joined by solvent welding to the manufacturer's instructions, and chlorinated polyethylene sheet must meet ASTM D4068 [1].

The details it names are the ones that fail in practice: the liner turned up on all sides at least 2 inches above the finished threshold; never nailed or perforated less than 1 inch above that threshold; pitched a quarter inch per foot toward the drain; and fastened to the drain so the joint is watertight [1].

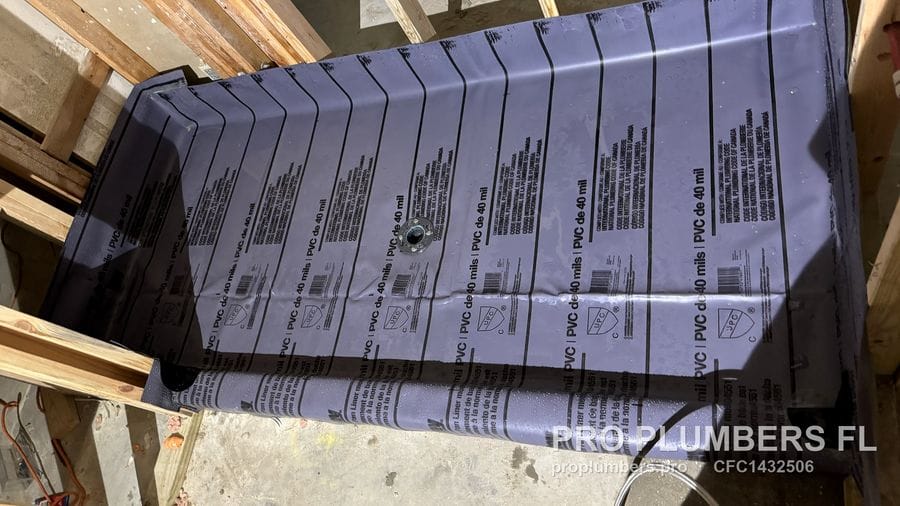

Liner makers ask for more than the minimum. One 40-mil PVC maker's instructions say to turn the sheet up the walls at least 6 inches above the finished floor, to fold corners rather than cut them, to fasten only half an inch from the top edge, and to bond the liner to the drain body as well as clamping it [2].

The corners are where showers leak

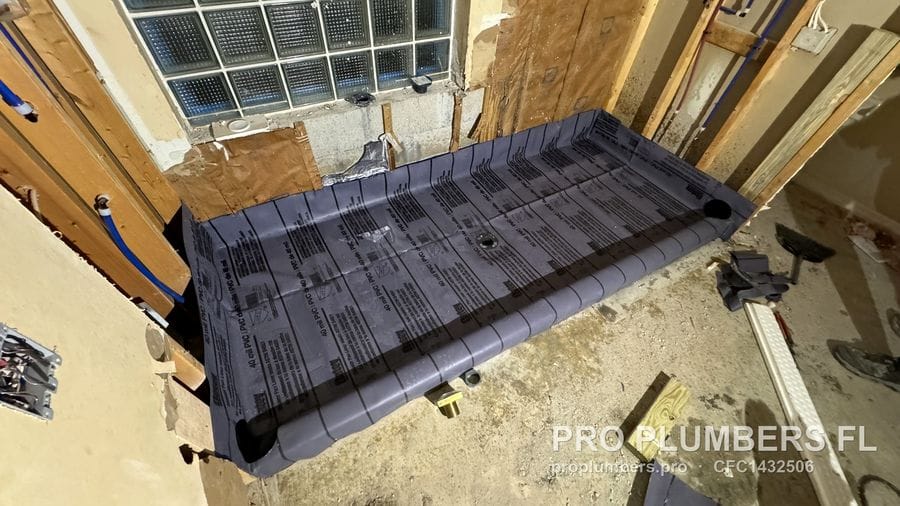

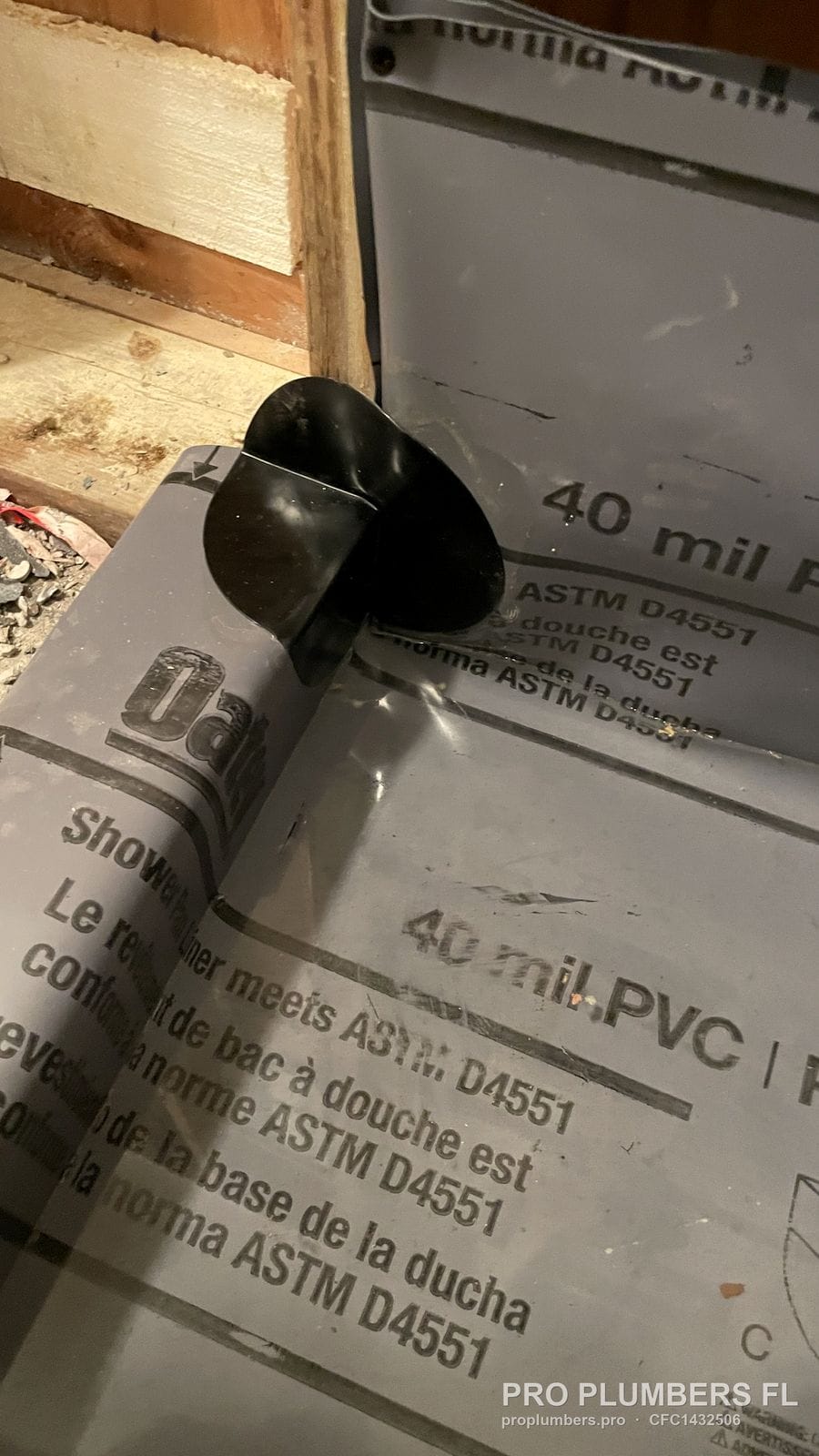

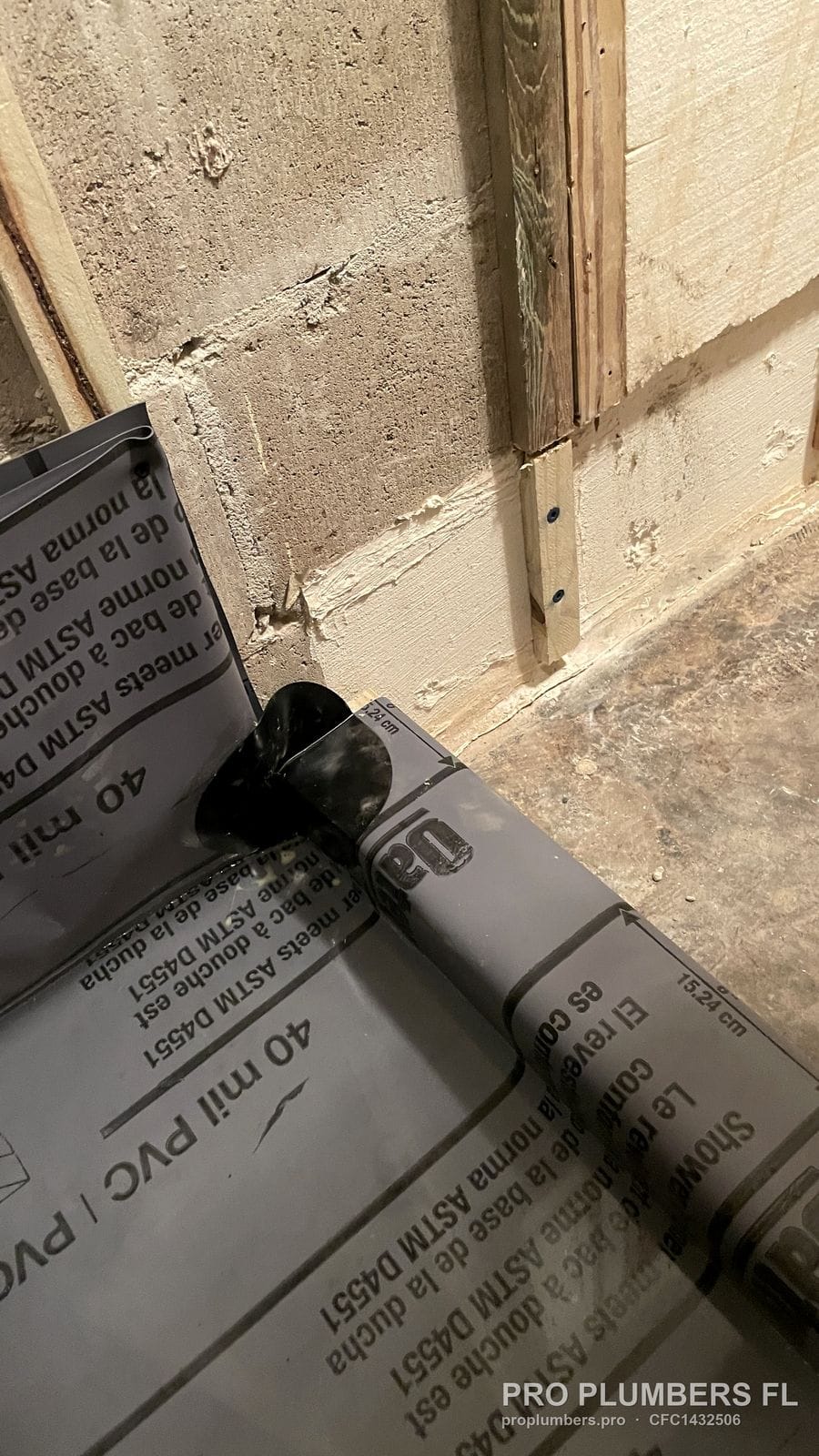

A flat sheet cannot turn a corner without being folded or joined, and every fold is a place to get it wrong. That is why our photographs show corners either preformed or carefully folded and welded, and why the liner is taken well up the wall rather than trimmed at the curb line.

The second place is the curb. Water runs along the top of a curb and down the outside; the liner has to go over it and be protected from every fastener that comes later. That is why the code forbids any nail or hole in the liner less than an inch above the threshold [1]: a nail there is a leak that appears a year after the bathroom is finished, in the room next door.

The drain is part of the waterproofing

A clamping-ring drain is two pieces: the lower body connected to the trap, and the ring that bolts down over the liner. The liner is cut only at the drain opening, laid over the body, bonded to it and clamped — the code asks for a watertight joint at that point, and the liner maker says how to make it [1][2].

The weep holes in that drain body are not optional and must not be grouted solid — the model plumbing code says in so many words that they must be protected from clogging [3]. They are the path for water that reaches the membrane; block them and the mortar bed stays saturated, which is how a shower starts smelling and how tiles start letting go.

What you can check before the tile goes on

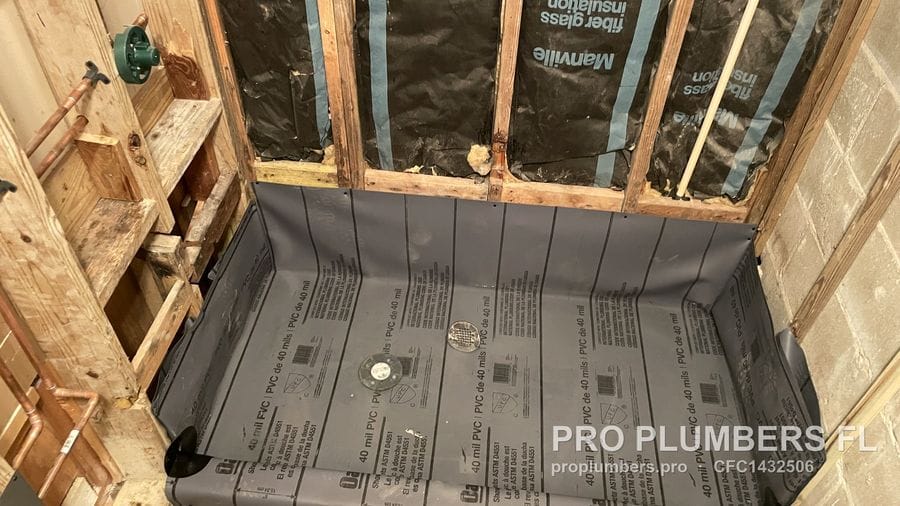

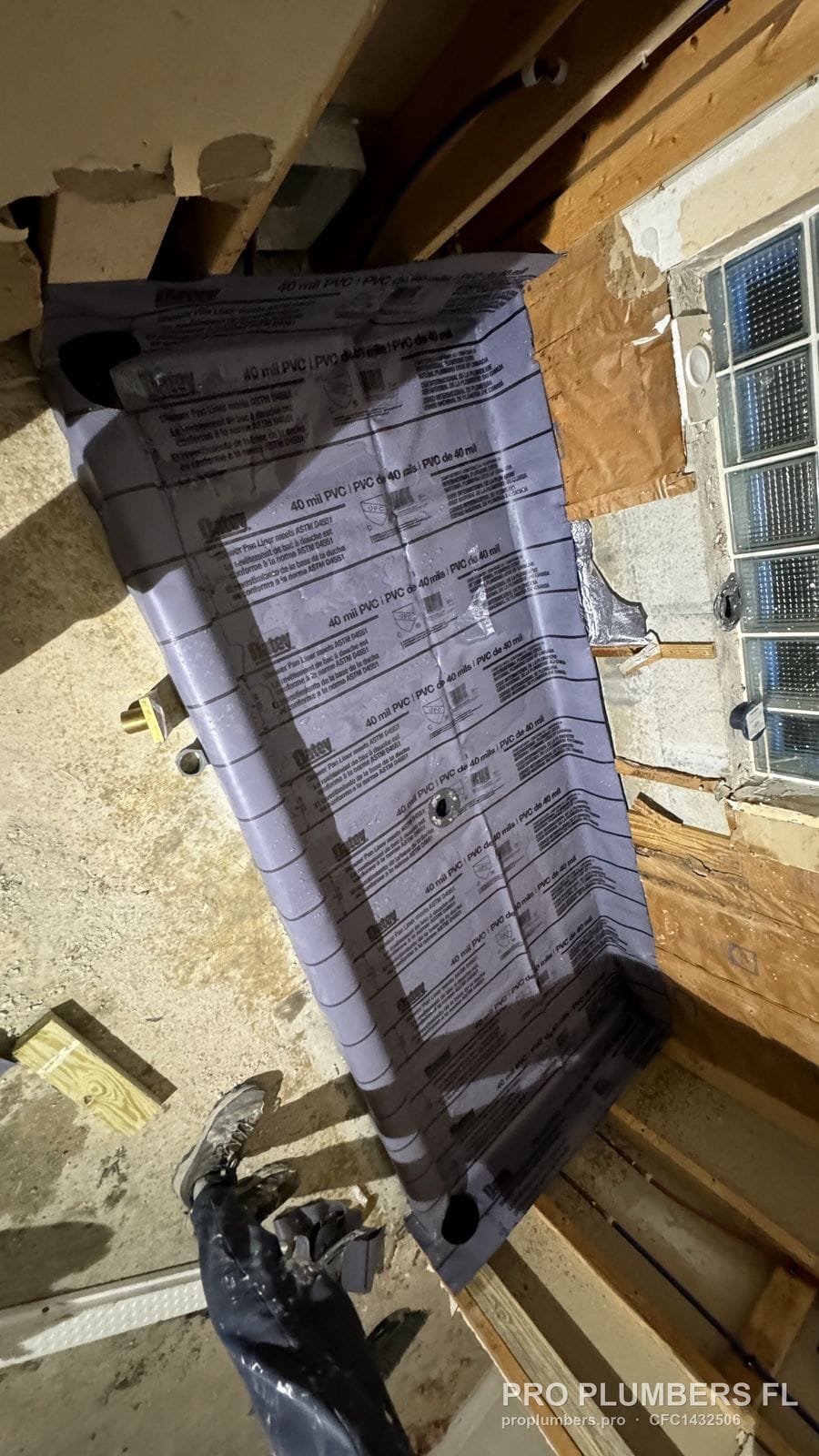

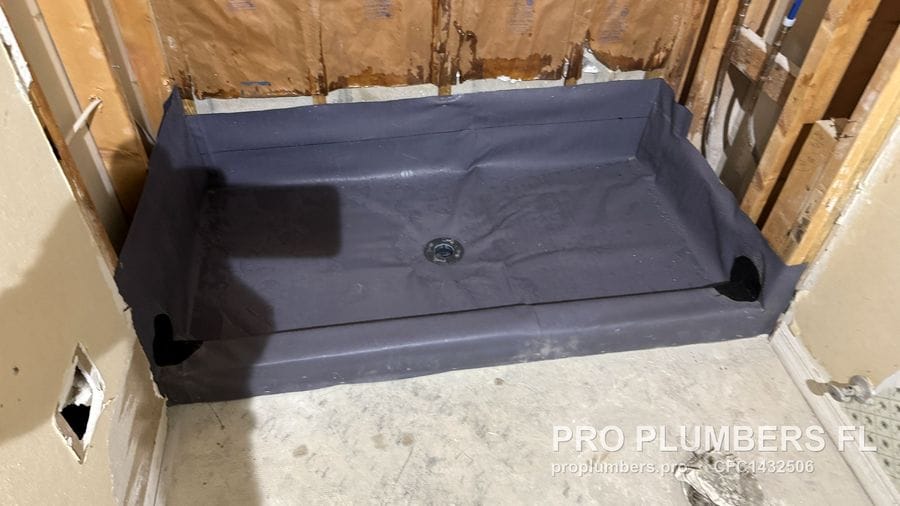

This is the one stage of a bathroom where a homeowner can see whether the job is right, because after tile nobody can. Ask for photographs of the liner before the mortar bed, and look for: liner turned up the walls well above the curb, corners folded and welded or preformed, no fasteners through the liner low down, the drain clamped down evenly, and a flood test.

The flood test is written into the code: the drain is plugged, the pan is filled with water at least 2 inches deep at the threshold, and it must hold for at least 15 minutes with no sign of leakage [1]. The liner maker we cite asks for at least 24 hours [2]. Our pans are flood-tested before they are covered.

What this means in Tampa Bay

Slab houses make shower leaks slow and expensive: water that gets past a liner soaks into the slab and the wall plates and shows up later as a musty smell or ruined baseboards in the next room.

We build pans and rough in the valve on the same job, so there is nobody to hand the blame to about the corner detail — and we photograph the liner before it disappears under mortar.
