Why a Floor-Mounted Tub Filler Needs a Rigid Rough-In

Why does a floor-mounted tub filler wobble or work loose?

Because everything that holds it up is at its foot. A wall-mounted faucet is held by the wall around it; a floor-mounted filler is a tall post with a spout on top, standing in open floor beside the tub, and the only thing holding it is the connection at its base.

That makes it a lever. A sideways push near the top — someone steadying themselves getting out of the tub, a hand-shower hose pulled hard, a knock with a mop — turns into a twisting load at the floor, larger the higher up the push lands. The base has to take that over and over without loosening, so if the trim or the plate under it is not fixed solidly, the filler starts to move. That is our own plain-physics reading, not a manufacturer's statement — and it is why the rest of this page is about what goes under the floor, not what stands on it.

What is a tub filler rough-in kit?

It is the part of a floor-mounted filler that goes under the floor: a mounting plate fixed to the structure, with the hot and cold supplies coming up through it and a guard over them while the floor is built around them [1][2]. The visible filler — the trim — goes on afterwards; Delta's instructions finish the rough-in first and only then move on to the trim kit [1].

On Delta's kit, four threaded studs stand up from the plate and can be adjusted up and down for height, and the cover is called a plaster guard [1]. California Faucets' kit has two supply nipples on its plate, each with a plug and a mudguard [2].

Before anything is covered, the supply connections are checked for leaks — Delta puts test plugs in its risers for this [1][2]. California Faucets calls for rigid copper pipe to its supply nipples [2]; Delta's supply stubs are soldered onto its risers [1].

How is a floor tub filler mounted on a wood-framed floor?

The plate is fixed to wood that is fastened to the floor joists. Delta's instructions for its floor-mount rough-in have the installer cut a stringer — Delta recommends a 2 × 10 or 2 × 12 — to fit between the joists under the hole, cut a matching hole in it, fix the plate to it, push it up against the floor and nail it to the joists while holding it level. If the finished floor and subfloor together are thicker than 1 1/4 inches, the plate goes on top of the stringer rather than under it. The hole through the floor is 2 by 2 5/8 inches, with the 2 5/8-inch side facing the tub [1].

California Faucets' rough-in does the same job with 2 × 4 wood cross supports attached to the floor joists; the plate is levelled in all directions and screwed to both supports [2]. Different hardware, same idea: the plate is tied into the framing.

How do you install a freestanding tub faucet on a concrete slab?

The rough-in plate is set in an open area of the slab, below the surface of the surrounding concrete; the supplies are connected and leak-tested; and the opening is then filled with concrete around the plate [1][2]. Delta's slab instructions put the top of the mounting plate 1 1/2 inches below the top of the concrete, allow a finished floor of at most 1 1/4 inches, set forms around the inlet tubes under the plate, plug the risers and check the supply connections for leaks, caulk the bottom edge of the plaster guard and set it over the rough-in, and then fill the open area with concrete [1].

California Faucets' slab method supports the plate on 2 × 4 wood below the top of the surrounding concrete, then pours concrete around the mudguards, encasing the plate and filling up to the surrounding slab [2]. In both, the plate ends up encased in concrete in the slab itself — which, in our reading, is what lets a post standing in open floor stay put.

Do I need to choose my tile before the tub filler rough-in?

Yes — the plate height is set from the finished floor, which does not exist yet when the rough-in goes in. California Faucets puts it on the installer to know the finished floor thickness before proceeding, prints minimum and maximum finished-floor marks on its mudguard, and says the finished floor covering must fall between them for proper installation of the filler [2]. Delta's instructions require between 1/2 inch and 1 inch of the threaded studs to remain above the finished floor once it is laid [1].

So the tile, its setting bed and any membrane under it have to be known before the plate is fixed. The same goes for where the filler stands: both instructions have the installer settle the location of the faucet — and, in California Faucets' case, of the tub — before the plate is fixed [1][2], because the spout has to reach over the rim of the tub.

What does Florida code require for a tub filler?

Four general rules apply to it, although the fixtures chapter of the Florida Building Code, Plumbing has no section written for floor-mounted fillers as such [3]. Supply lines and fittings for every plumbing fixture must be installed so as to prevent backflow, and fixtures must be set level and in proper alignment [3]. Most floor fillers carry a hand shower; a hand-held shower must provide backflow protection to ASME A112.18.1/CSA B125.1 or be protected by a device complying with ASME A112.18.3 [3].

And a tub filler is the valve that fills a bathtub. Florida requires bathtub valves to have, or be supplied by, a water-temperature-limiting device to ASSE 1070/ASME A112.1070/CSA B125.70, or a water heater complying with ASSE 1082 or ASSE 1084 — unless the valve is a combination tub/shower valve that meets the shower-valve section, §412.3. The limiting device must be able to limit its maximum setting to 120°F and, where adjustable, be set so the hot water does not exceed 120°F [3]. Whether a given filler meets this on its own or needs a limiting device ahead of it is a question to settle at rough-in, while the supply is still open.

What this means in Tampa Bay

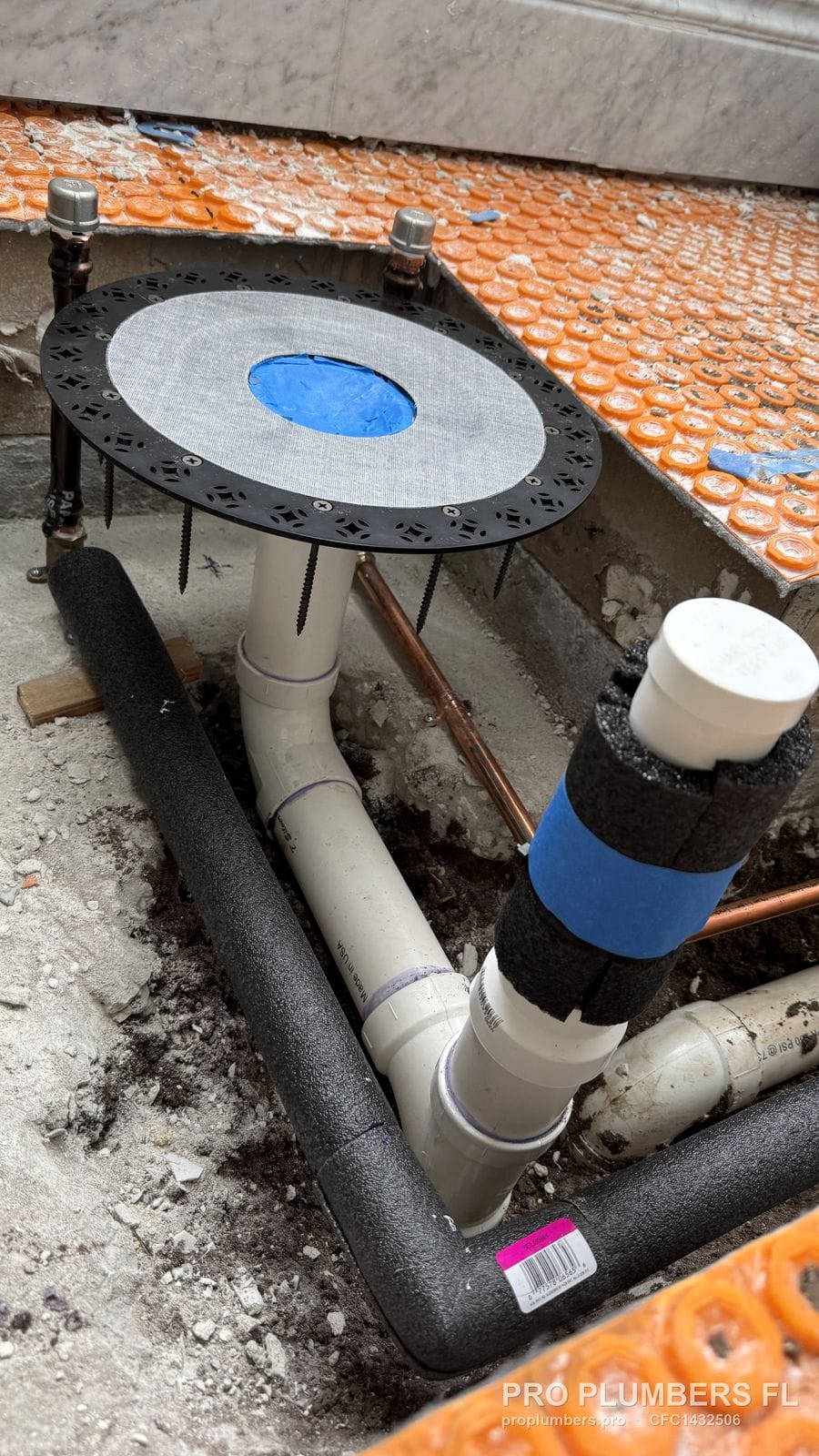

In a slab house, the filler's supplies and the tub's drain both come up through the slab, so the concrete is opened for them. Our East Lake photograph shows that stage — the round filler rough-in plate, copper supply lines in the trench, insulated lines and a capped PVC drain riser — before the slab was patched and tiled. The finished freestanding tubs with floor fillers on this page are from Westchase and Venice.

We ask for the tub's spec sheet and the tile build-up before we cut, because the plate height and the filler's position are both set to things that are not there yet at rough-in.
