Most homes in Pinellas County run on an electric tank water heater. When one fails, you need a new unit connected properly, not just set in place: shutoff valve, expansion tank, relief-valve discharge line, and a pan where the location needs one.
Updated July 2026 · Licensed CFC1432506
An old heater usually comes out with old connections attached: a stiff valve, corroded nipples, no expansion tank, a relief line that goes nowhere. We replace the unit and the parts around it that decide whether the next heater lasts.
Space is often the hard part. Tampa Bay closets were built around the heater that was there in the 1990s. We have fitted new units into narrow closets, onto raised platforms and into utility rooms shared with filtration equipment.
Heating water makes it expand. In a closed system — behind a check valve or backflow preventer — that extra volume has nowhere to go, and pressure climbs every time the heater runs. A thermal expansion tank on the cold inlet gives it somewhere to go. You can see one on almost every job on this page.

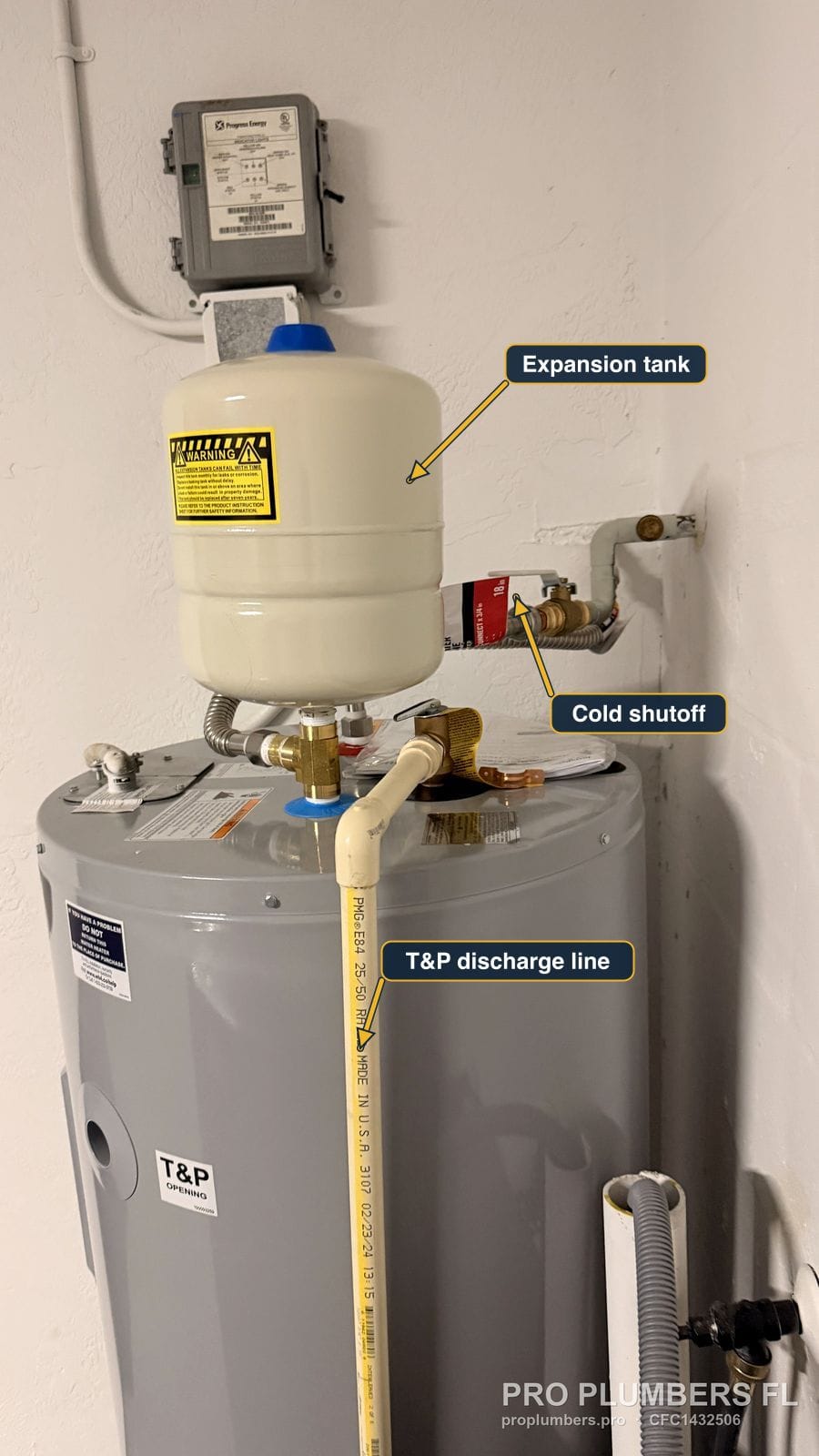

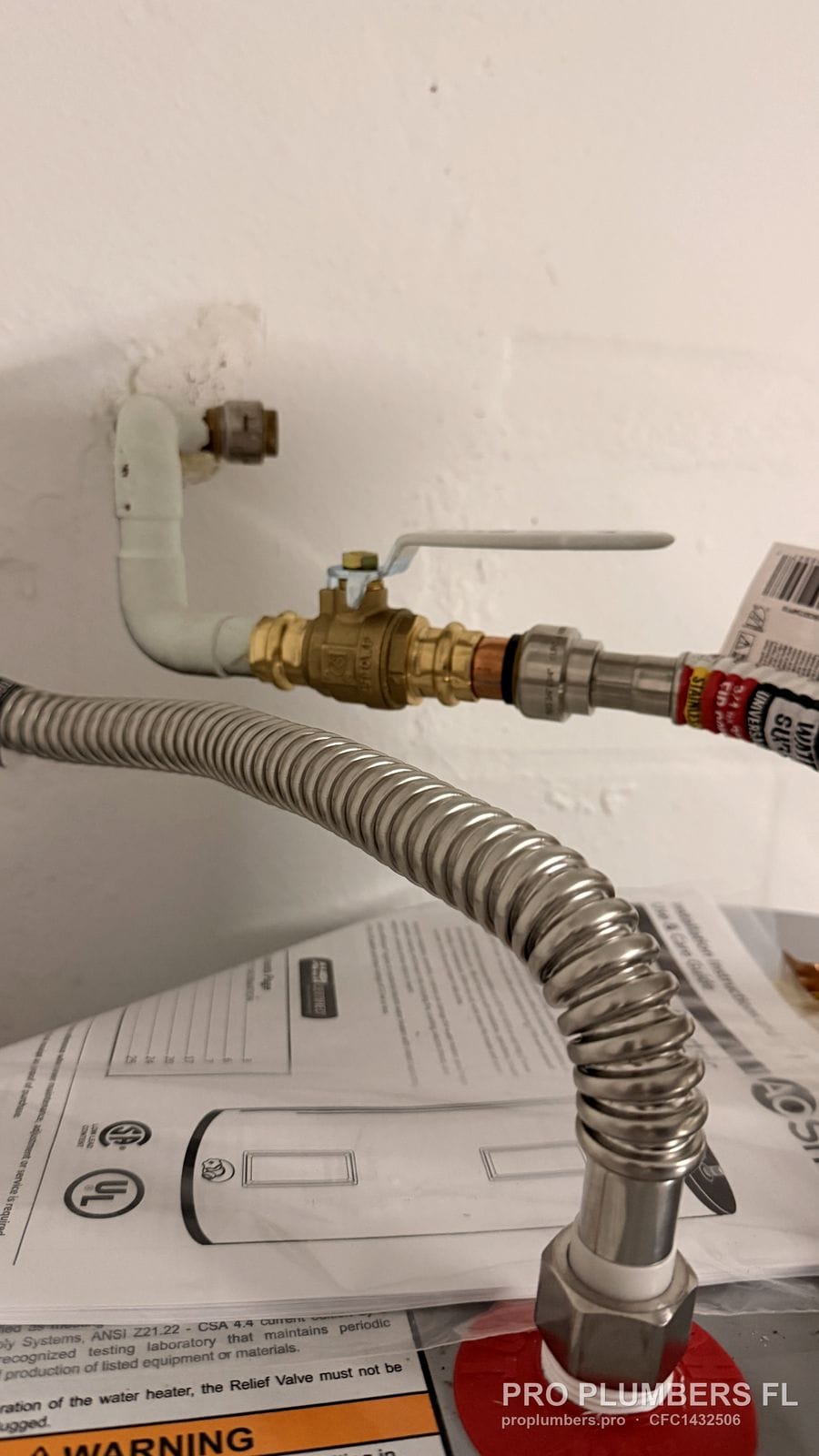

The temperature-and-pressure relief valve is the heater's last line of defence. Its discharge line has to be piped to a safe place, not left short or capped. And a ball valve on the cold inlet lets you shut the heater off without shutting the house off.

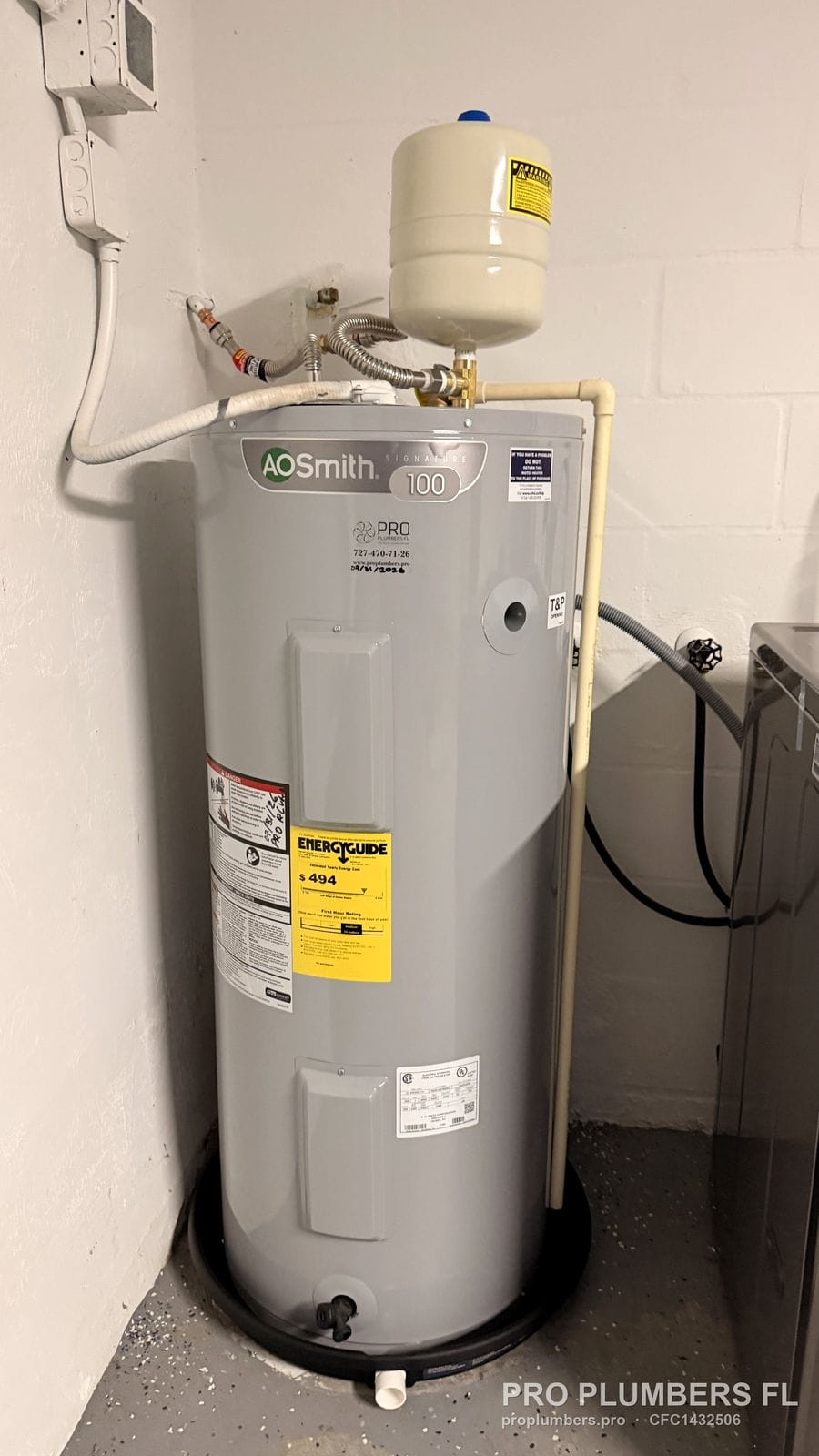

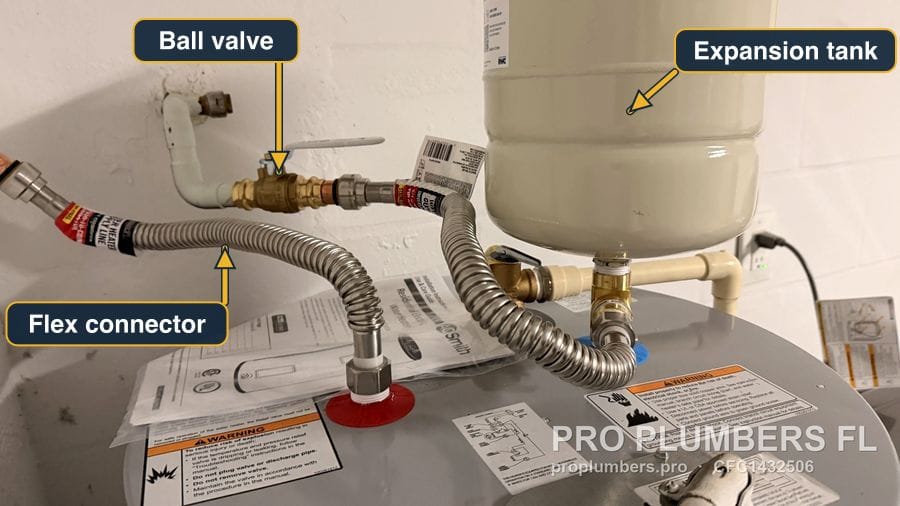

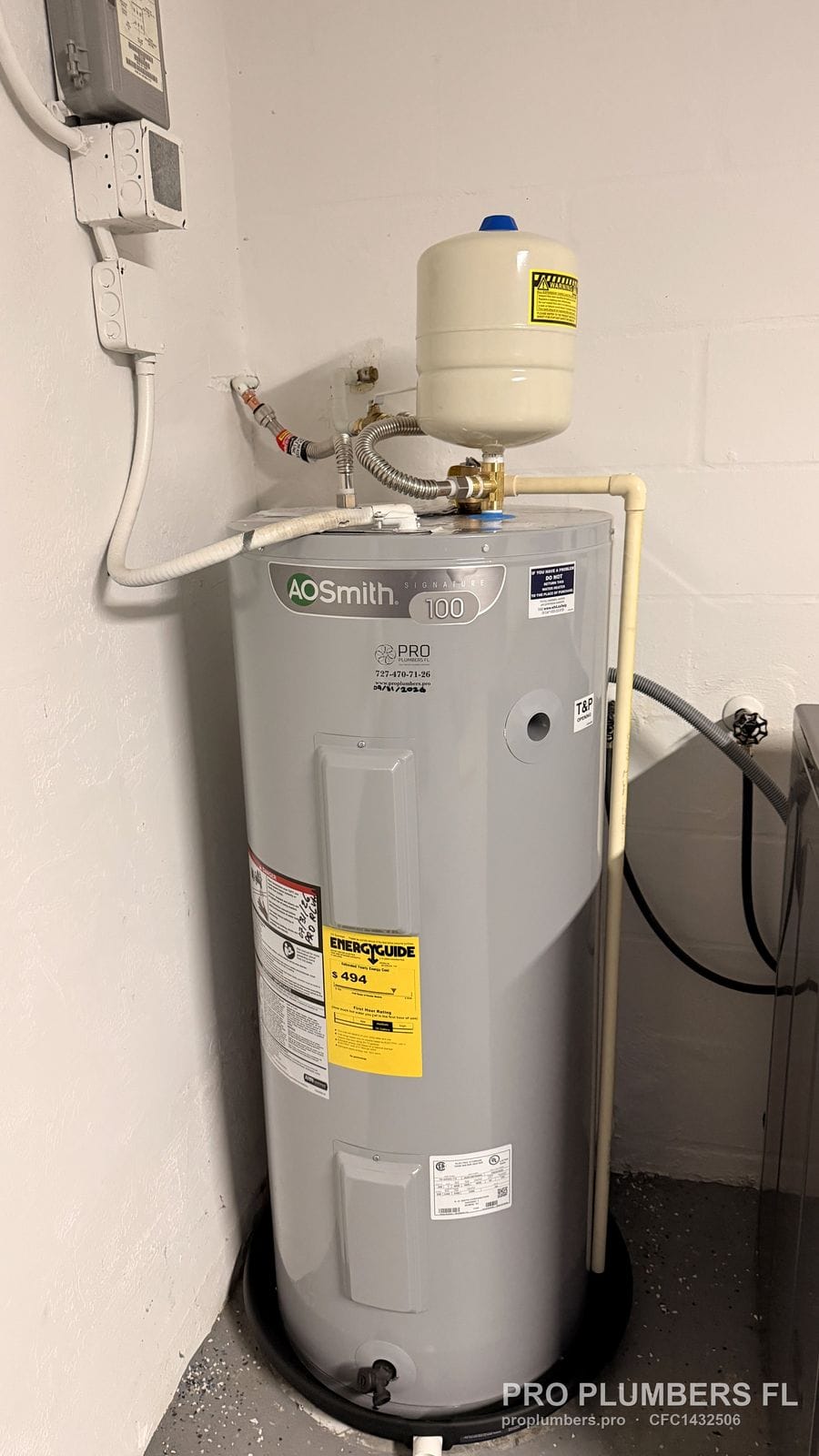

A new electric tank heater set in a drain pan, with a ball valve and flexible connectors on top, a thermal expansion tank on the cold inlet and a T&P discharge line. The label on this unit reads A.O. Smith.

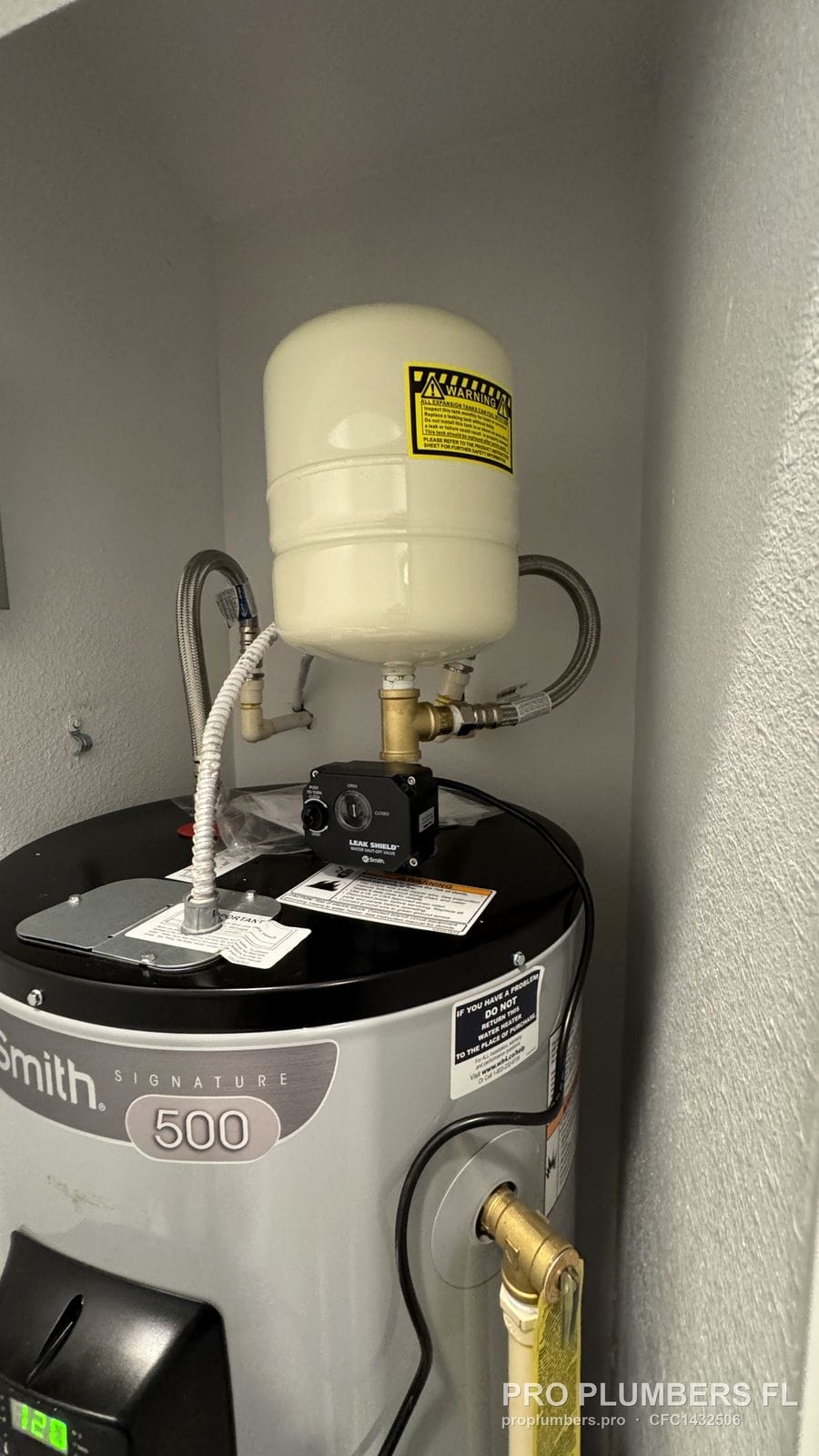

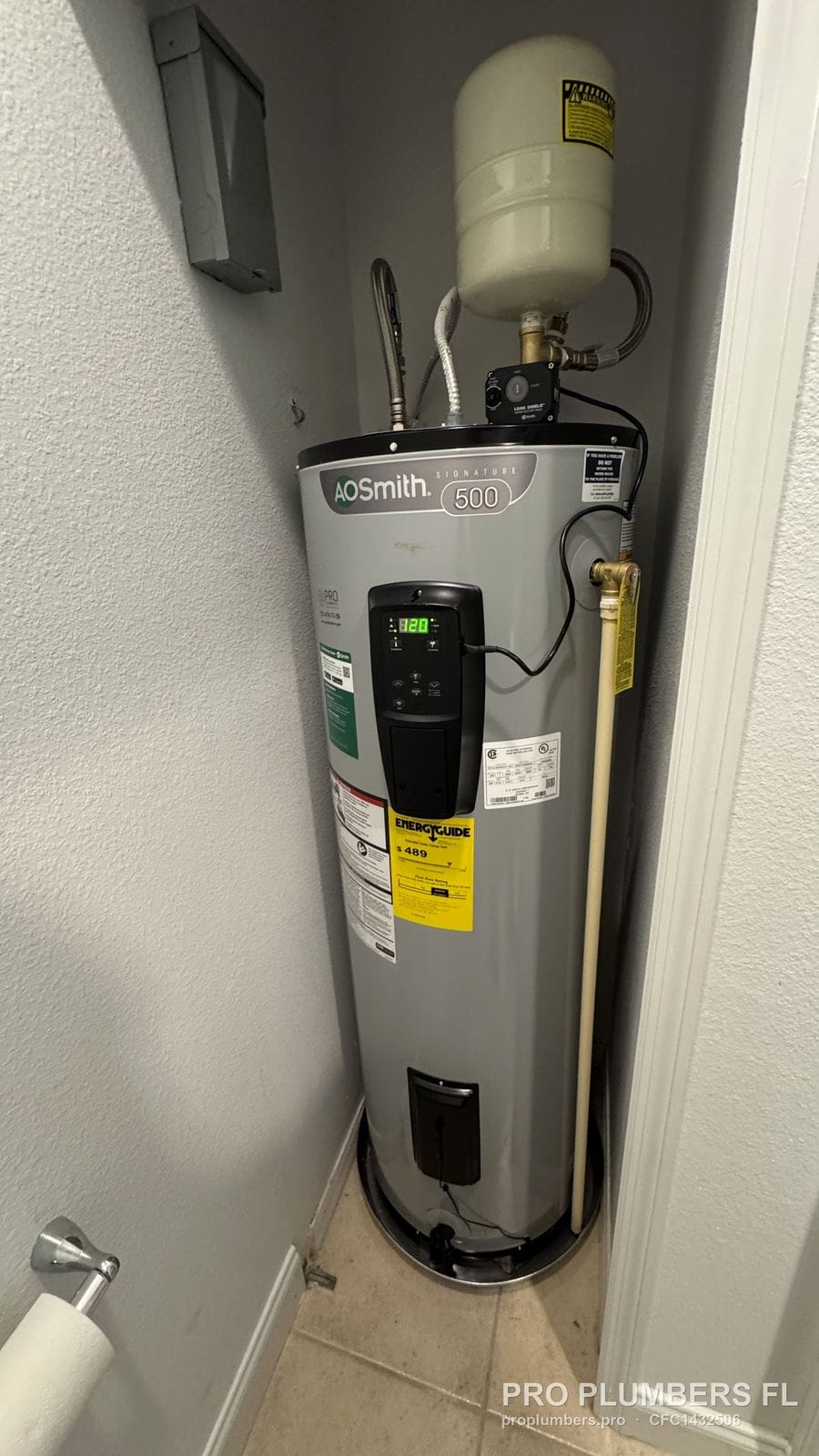

The closet left very little room around the tank. The new heater went in with its expansion tank mounted on the cold inlet above it, so everything stays reachable for service.

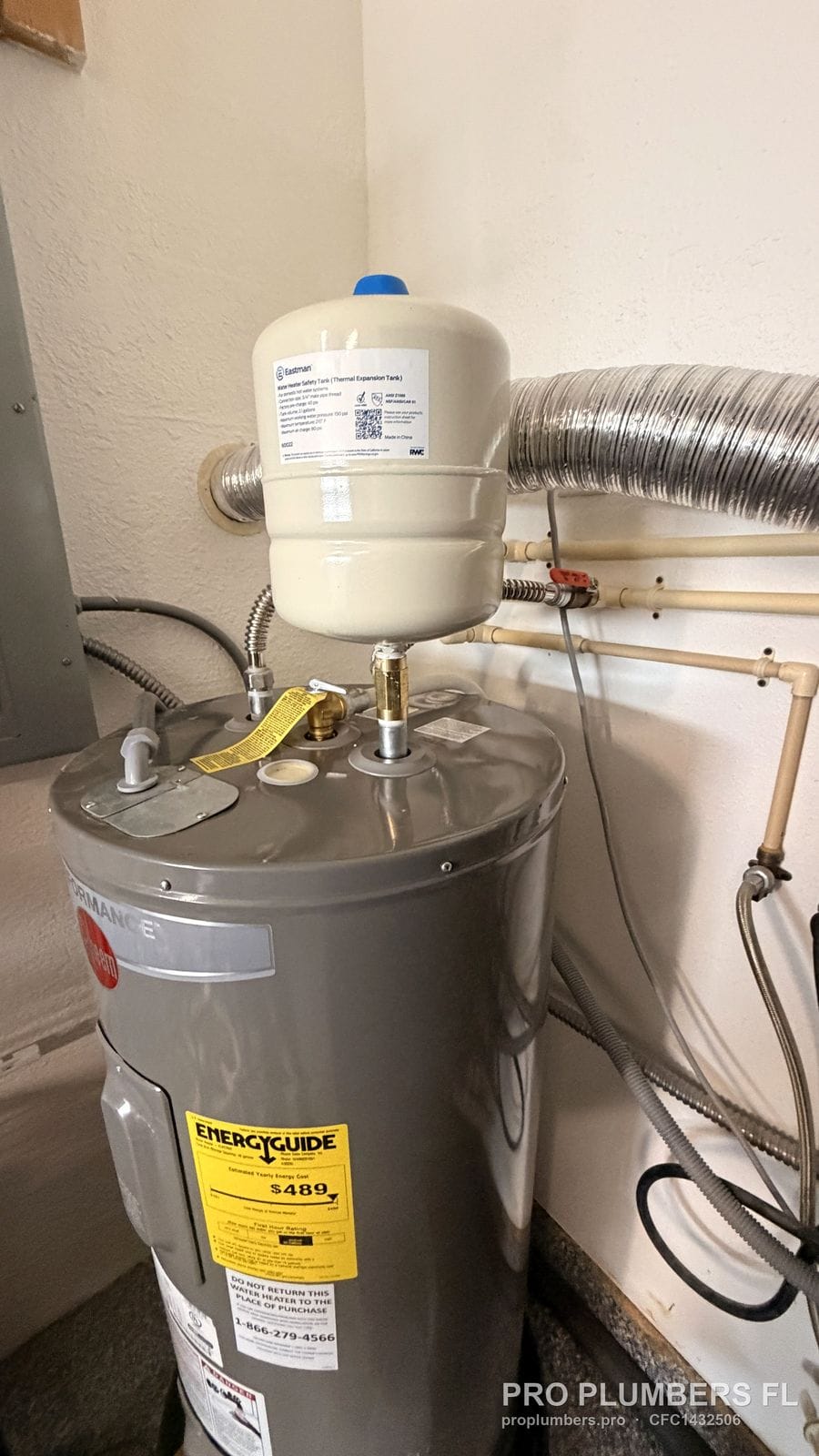

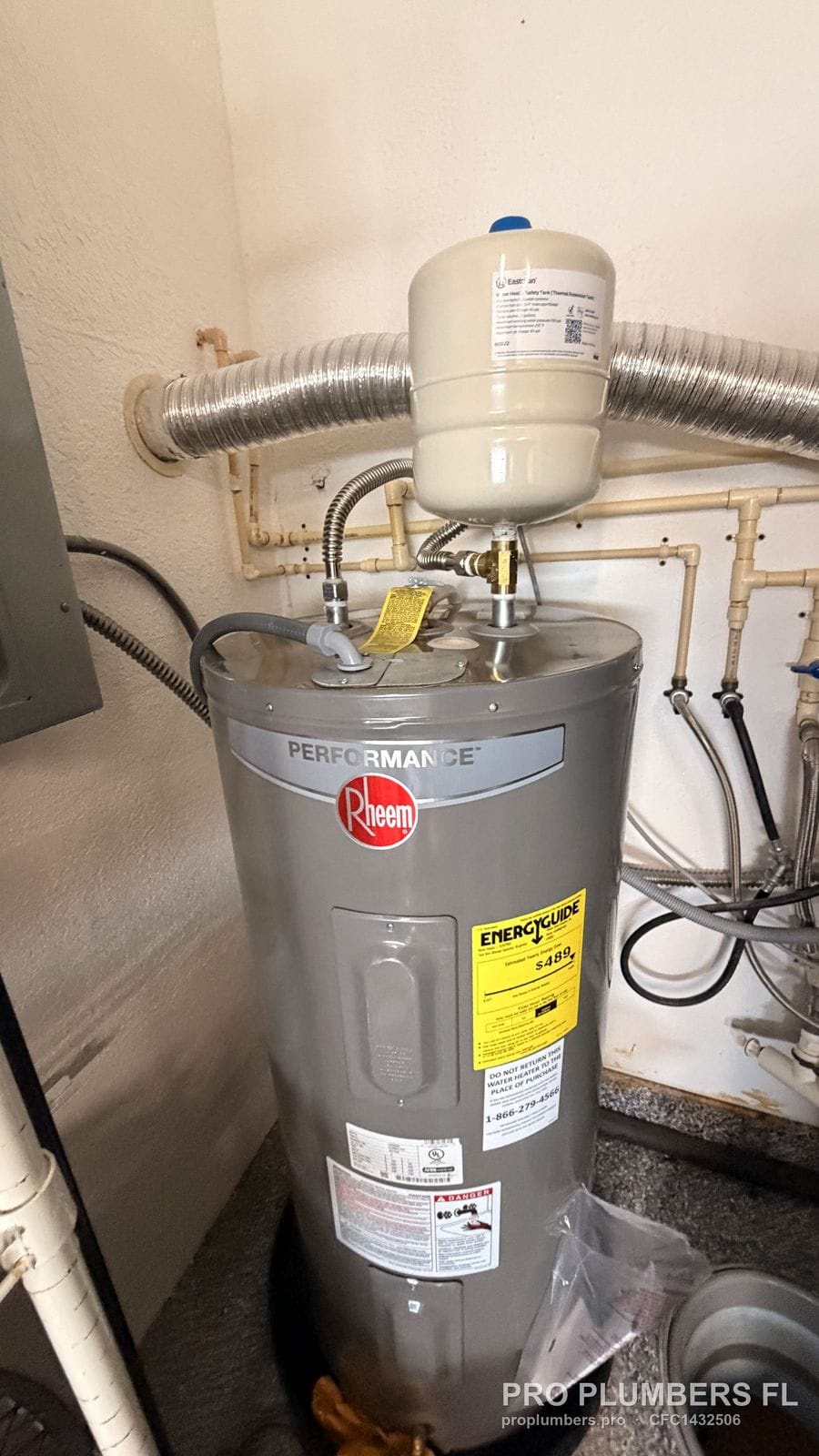

Electric tank heater replaced in a utility room, connected to the existing CPVC piping, with a thermal expansion tank added.

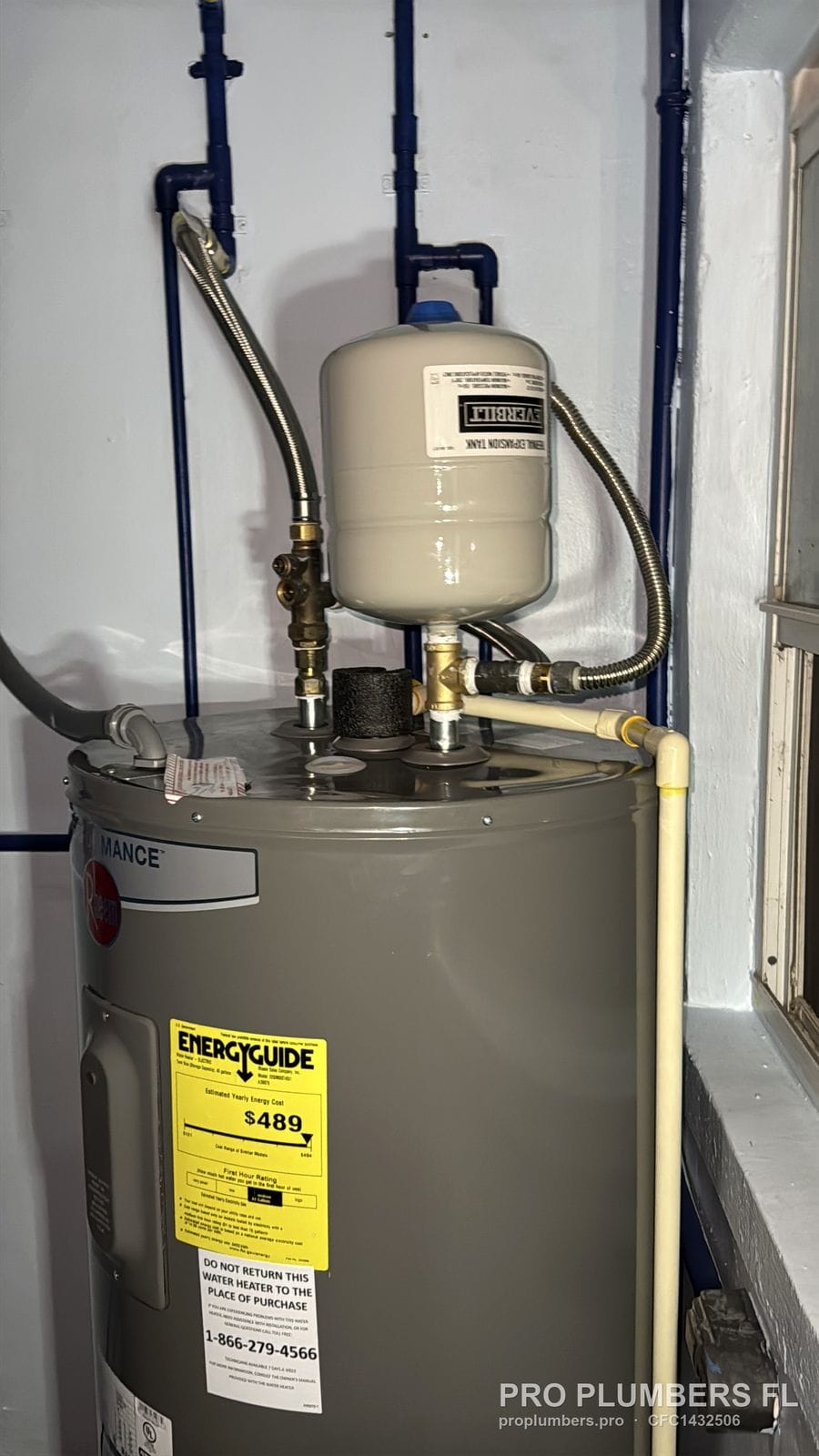

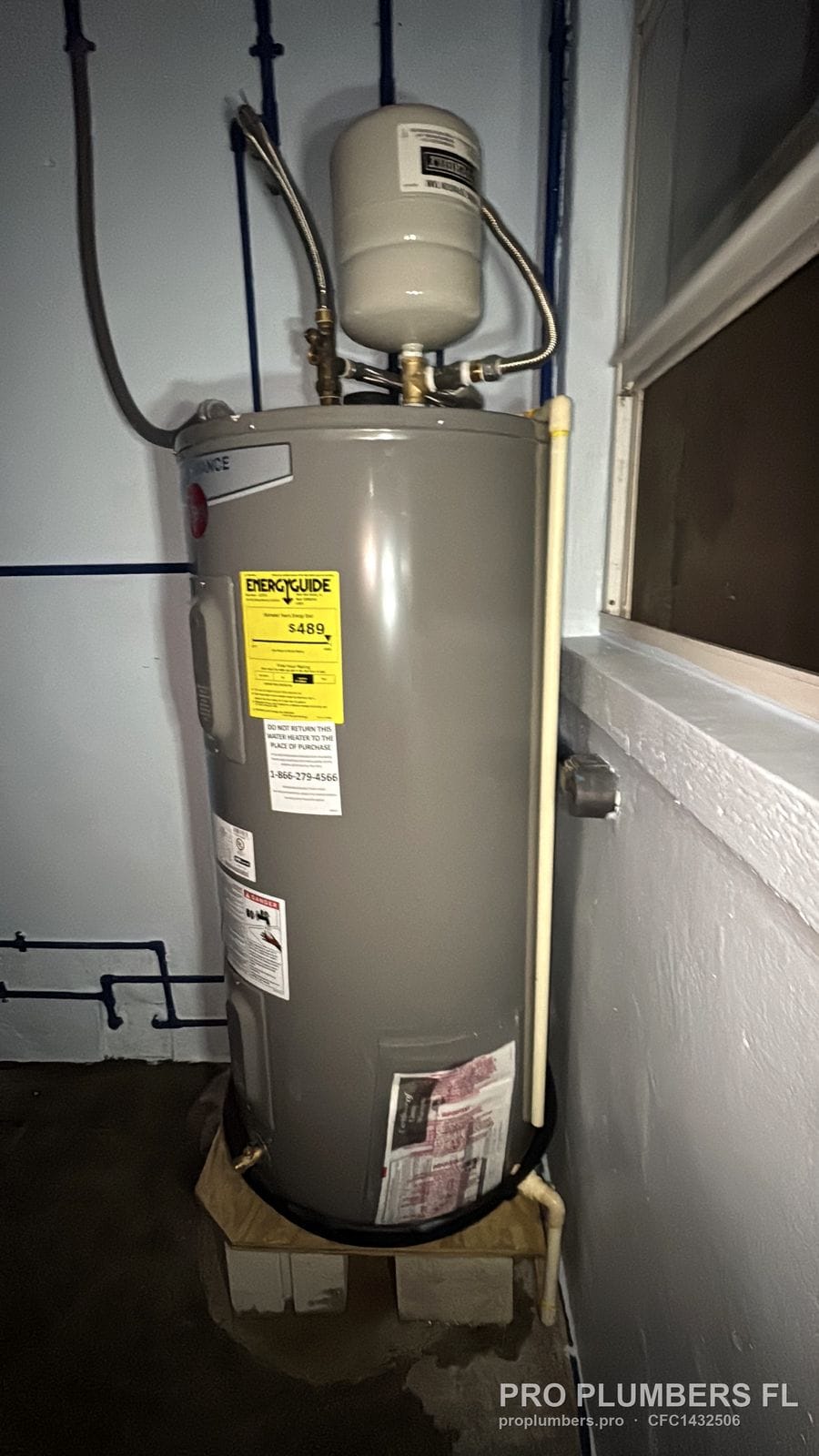

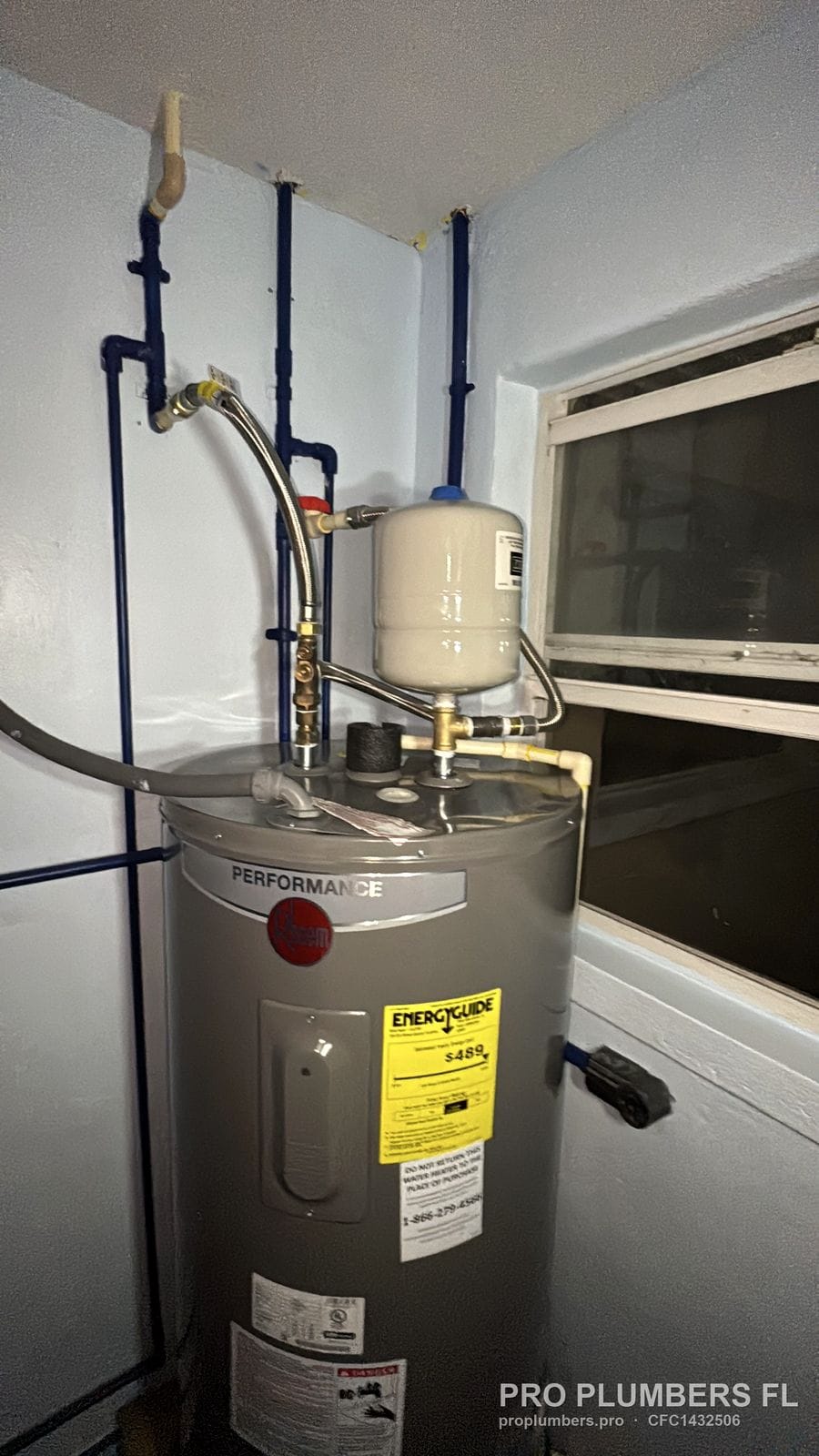

A heater set on a raised platform in a utility closet, piped in PEX, with an expansion tank on the cold side.

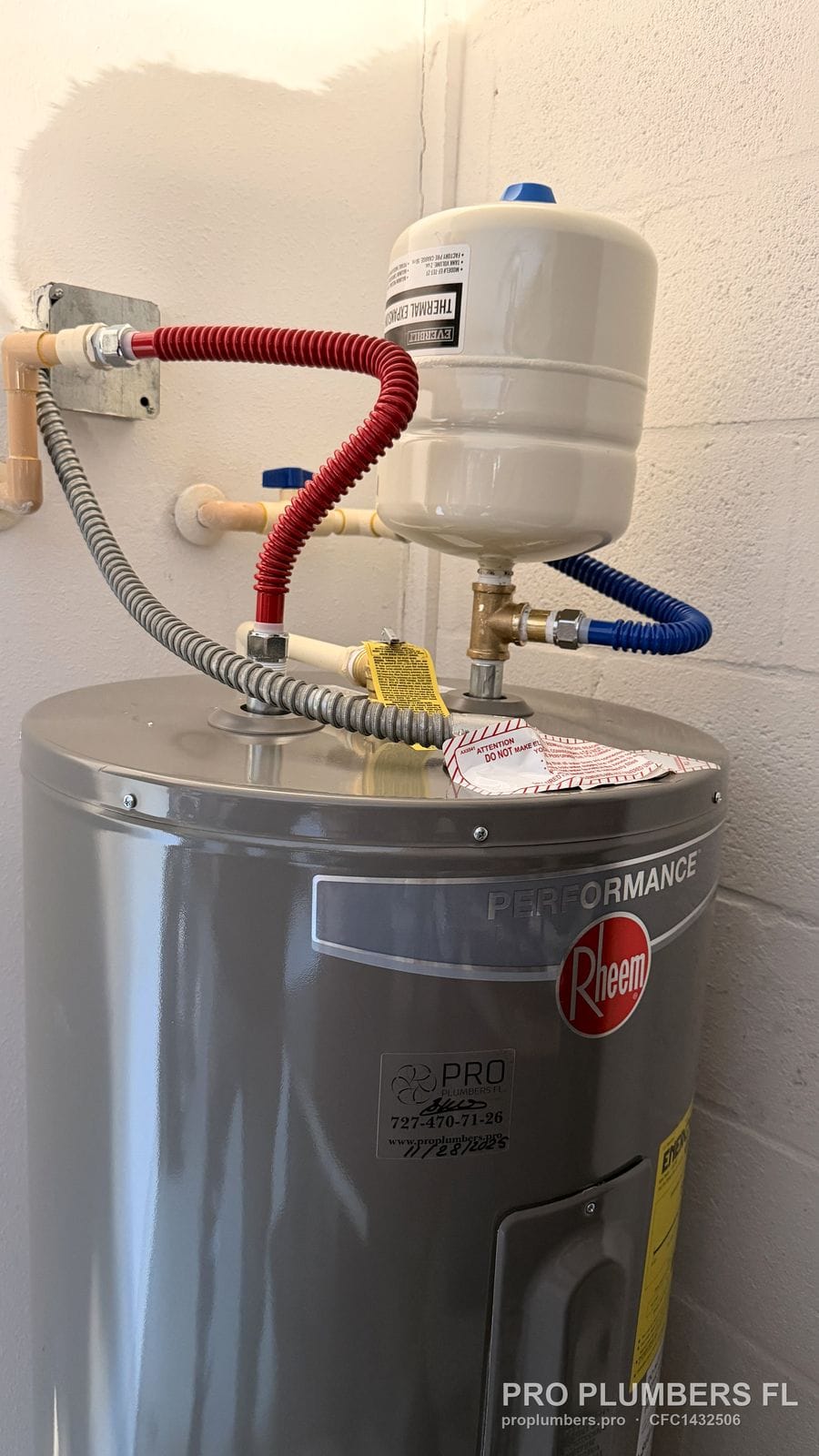

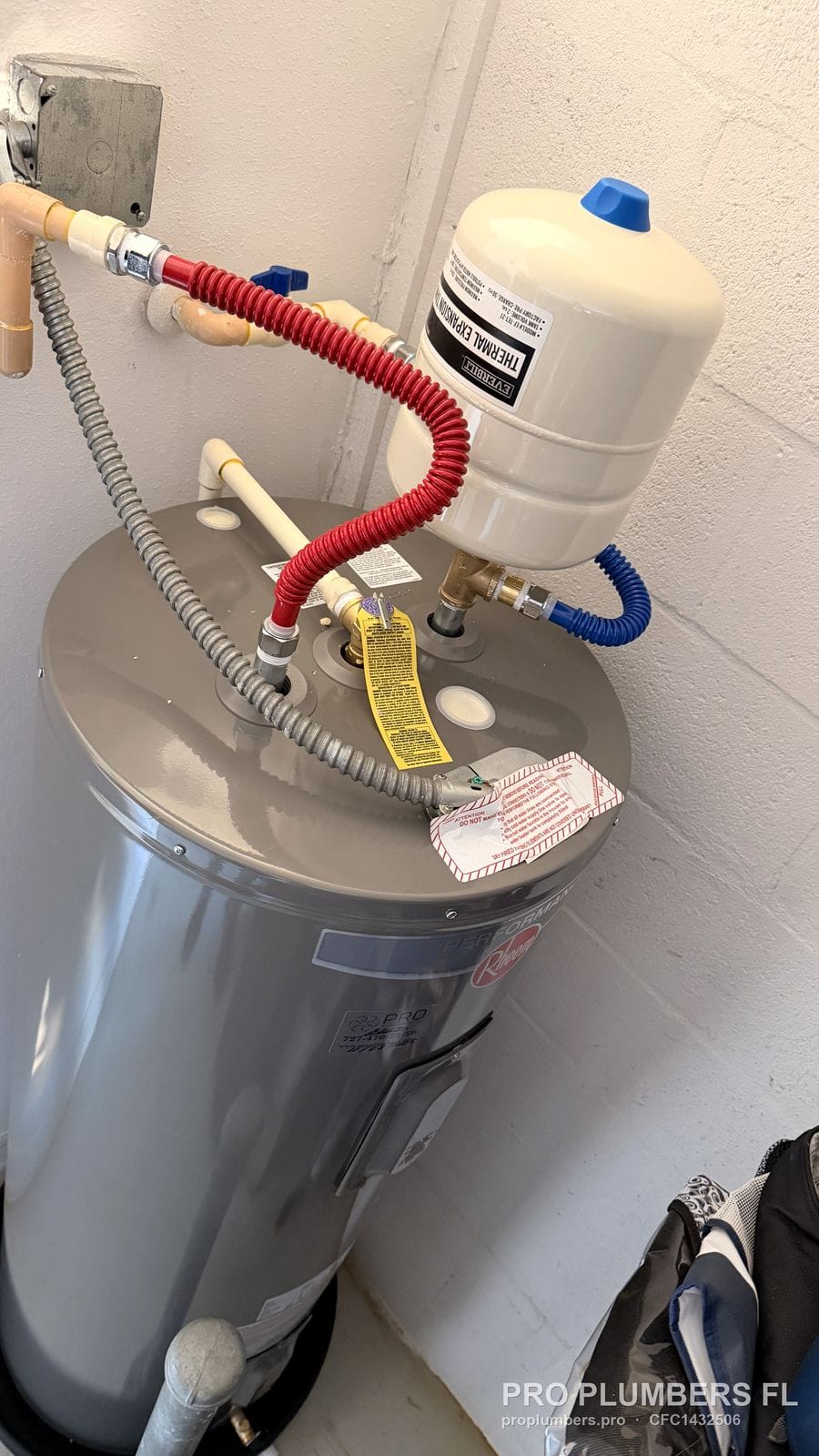

Electric tank heater with a thermal expansion tank and colour-coded flexible connectors in a block-wall utility room.

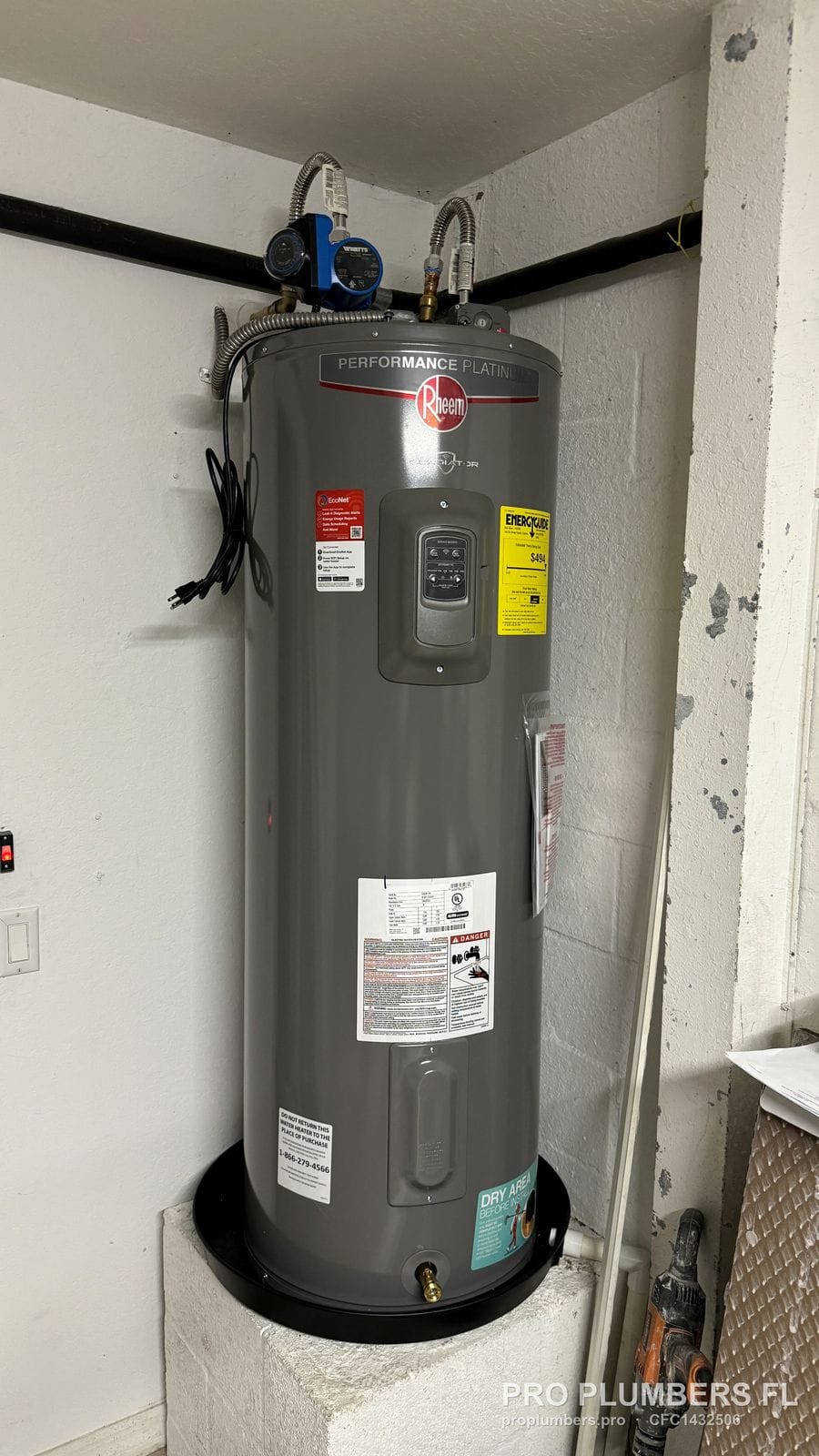

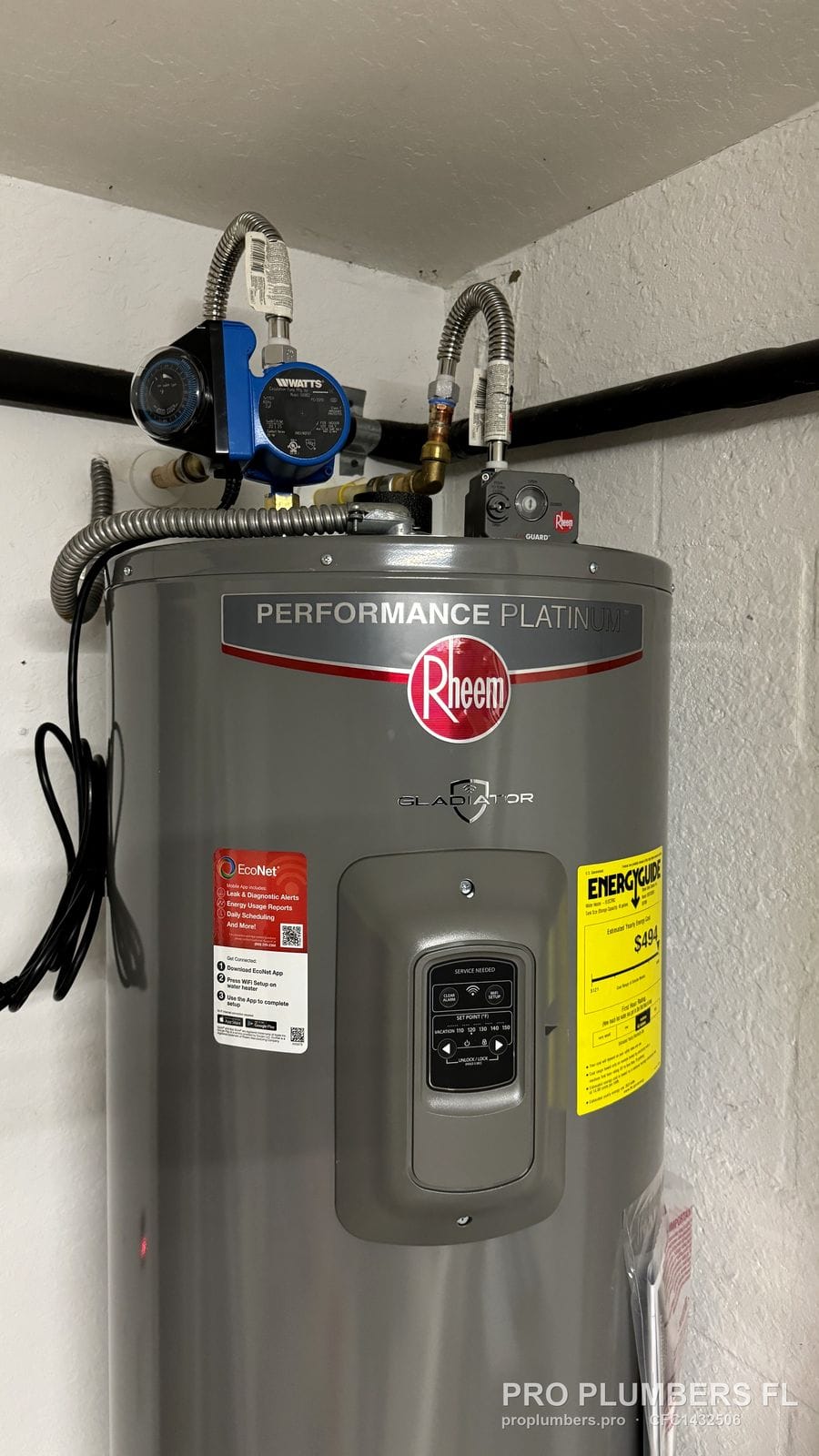

An electric tank heater set in a drain pan, with a circulator pump fitted on the hot outlet and braided connectors.
Capacity, voltage and what the connections look like tell us what the replacement needs.
Power off, water off, tank drained and taken away.
New valve, connectors, expansion tank and relief line, in a pan where the floor needs protecting.
The tank is filled and purged of air before the elements are energised — a dry element burns out in seconds.
Not always. A tripped breaker, a failed thermostat or a burned-out element can be repaired. A tank that leaks from the body cannot. We check which one it is before talking about a new heater.
Because many homes are now closed systems, behind a check valve or backflow preventer. Without somewhere for heated water to expand, pressure rises on every heating cycle and wears the heater, the relief valve and the fixtures.
Usually. Several jobs on this page were tight closets or raised platforms. If the new unit is larger than the old one, we measure first and tell you before the old one comes out.
Where the heater sits over a finished floor or in a living area, a pan with a proper drain limits the damage from a leak. We fit one where the location calls for it.
Workmanship warranty: 5 years on new construction, 1 year on repairs. Equipment carries the manufacturer's warranty.
Pro Plumbers FL is a family-run company. The licence CFC1432506 is held by Liubov Ivanova; Viktor Zarubitskii — in the plumbing trade since 1998 — plans the job, makes the technical decisions and works on site. Our own plumbers do the plumbing. Work outside plumbing, such as concrete cutting, we either do ourselves or bring in a contractor — either way it is written into your quote.
Source: Google
Send a photo of the heater label and the connections on top — we will tell you what the job involves.
