A Water Softener Outside: What It Needs in Florida

Can a water softener be installed outside in Florida?

Yes, if the equipment is rated or protected for it. Culligan notes that in warmer climates it is not uncommon to see a softener in someone’s front yard, and that systems have to be evaluated for outdoor use: outdoor models need different control valve components, and have to be waterproof and able to withstand ultraviolet light from the sun [9].

Read the manual of the valve you have before you decide where it goes. Pentair’s service manuals for the Fleck 5600SXT and the Fleck 5810/5812SXT list the installation location as for dry locations only [4][6]. The Fleck 7000SXT and 5810/5812SXT manuals add: do not place the unit in direct sunlight, because black units absorb radiant heat and their internal temperature rises [5][6]. Clack sells a weather cover for its WS1 valve, which it rates IP54 on its own and IP55 with the cover [7].

Whatever the brand, the list of needs is the same outside as in a garage — the manuals and the plumbing code just make some of them harder to meet in a yard. The drawing below puts them in one place.

Can a water softener sit in direct sun?

Not according to the valve manuals that address it. Pentair’s Fleck 7000SXT and 5810/5812SXT manuals say not to place the unit in direct sunlight, because a black unit absorbs radiant heat and its internal temperature climbs [5][6].

Those manuals also give a ceiling: do not install the unit where the temperature may rise above 52 °C — given as 125 °F in the 7000SXT manual [5][6]. Clack lists 40–110 °F as the operating temperatures for its WS1 valve [7]. A black tank and control head on a sunny wall in a Florida summer is exactly the situation those warnings describe.

The pipe matters too. Many softener loops here are plumbed in CPVC, and Wavin’s installation guide for FlowGuard Gold CPVC says prolonged exposure to sunlight is not advised and that CPVC installed out of doors should be painted with latex paint [10].

So a shaded wall — north or east if there is a choice — or a cover or enclosure that keeps the sun off the valve and tanks is the first thing an outdoor softener needs. Culligan’s outdoor models answer the same problem from the other end, with tanks built to resist UV [9].

Can a water softener get rained on?

The control valve should not. Culligan lists protection from dampness like rain as a requirement when a softener is installed outdoors [9], and Pentair’s 5600SXT and 5810/5812SXT manuals limit those valves to dry locations [4][6].

The control valve is the electronic part: a circuit board, a display, a motor and a power adapter. The tanks themselves hold water all day. That is why the protection that manufacturers offer is for the valve — Clack’s weather cover takes its WS1 valve from IP54 to IP55 [7] — and why an outdoor softener should sit where rain runs away from it rather than collects around it.

A cover also has to come off. Clack asks for one foot of clearance to service the valve [8], and the brine tank needs salt added through its lid. A box or a cover that is a struggle to remove is one that does not get put back.

Clack’s warranty for its control valves requires the weather cover on outdoor installations that are not under cover [8].

What should an outdoor water softener sit on?

Something level and firm. Pentair’s Fleck manuals tell the installer to make sure the softener tank is level and on a firm base, and that the floor under the salt tank is clean and the brine tank level [4].

Indoors the floor does that work. Outside it has to be built: a level pad, as on the Sarasota installation at the top of this page, or a levelled, compacted bed. Culligan lists flat ground among the basic needs [9]. A tank that leans on soft mulch or settles into wet sand after a few storms is no longer level, and the brine tank’s float and the valve’s fittings take the strain.

Leave room around it. Clack asks for one foot of clearance to service the valve [8], and somebody has to be able to lift bags of salt into the brine tank.

Does an outdoor water softener need a bypass valve?

Yes. Pentair’s manuals say to always provide for the installation of a bypass valve if the unit does not come with one [4][5][6].

A bypass lets the house keep running on unsoftened water while the softener is isolated. Clack describes its own bypass as the way to isolate the control valve from the plumbing system’s water pressure for repairs or maintenance, with positions for normal service, bypass, diagnostics and shut-off [8]. Pentair’s start-up procedure uses it too: the unit goes in bypass while the lines are flushed, then is slowly returned to service [4].

Outside, the same job is often done with three separate valves on the pipe: one on the inlet, one on the outlet, and one on the leg between them. Close the inlet and outlet and open the middle one, and the house gets water while the softener is out of the line. It is also the way to take an outdoor unit out of service if its valve is damaged in a storm.

Where does an outdoor water softener drain?

Into the drainage system, through an air gap. The Florida plumbing code names softeners among the equipment that treats potable water and says their waste discharge pipes terminate through an air gap [1]; its section on water treatment units says discharge from reverse osmosis or other types of water treatment units must enter the drainage system through an air gap or an equivalent backflow-prevention device [1].

The air gap is a real, open space between the end of the drain line and the rim of whatever receives it. Pentair’s manuals call for an air gap of twice the drain-line diameter, and never less than 1 inch [4]; the code’s chapter on indirect waste sets the gap at not less than twice the effective opening of the pipe, and requires the receptor to be trapped, vented, connected to the building drainage system and easy to reach [2].

Outside, that is usually the hard part: the house drain is inside and the softener is not. Distance and size go together — Pentair and Clack both ask for a drain line of at least ½ inch, and ¾ inch where the line runs longer than 20 feet or the backwash flow is above 7 gallons per minute [4][8]. Each regeneration sends about 50 gallons to the drain, and on a septic system that is extra load, according to University of Nebraska Extension [11]. Where an outdoor softener’s drain may connect on your property is a question for your building department before the line is run.

Does a water softener need an electrical outlet outside?

Yes, and one that stays on. Pentair’s manuals call for an uninterrupted AC supply and say the power adapter must not be on a switched outlet [4]; Clack says the same — be certain the outlet is uninterrupted — and both say electrical connections must follow local codes [4][8].

Culligan lists a nearby electrical outlet with the drain connection and protection from rain among the basics [9]. Outdoors, that means an outlet rated for the weather, close enough for the adapter’s cord. If there is none, adding one is electrical work; we plumb the softener, and the outlet goes in under the electrical code.

Can an outdoor water softener freeze in Florida?

Not often here, but the manuals do not allow for it. Pentair’s manuals say the unit cannot be subjected to freezing conditions, and the 7000SXT and 5810/5812SXT manuals say not to install it where the temperature may drop below 32 °F [4][5][6].

The Florida plumbing code says water pipes may not be installed outside a building, or anywhere else subject to freezing temperatures, unless they are protected from freezing by insulation, heat or both [3]. Clack says a valve exposed to freezing should warm to room temperature before water runs through it [8]; Pentair says to warm the valve to room temperature before operating it [4].

Of the outdoor warnings in these manuals, the ones about heat and direct sun are the ones a Florida yard tests most often; for frost, the code’s answer for exposed pipe is insulation, heat or both [3].

What this means in Clearwater and across Tampa Bay

Most softeners we see around Tampa Bay are in a garage or outside against a wall, and outside is where the manuals’ warnings bite: direct sun on a black tank, rain on an electronic valve, and a drain that has to reach the house’s drainage system through an air gap [1][4][5][9].

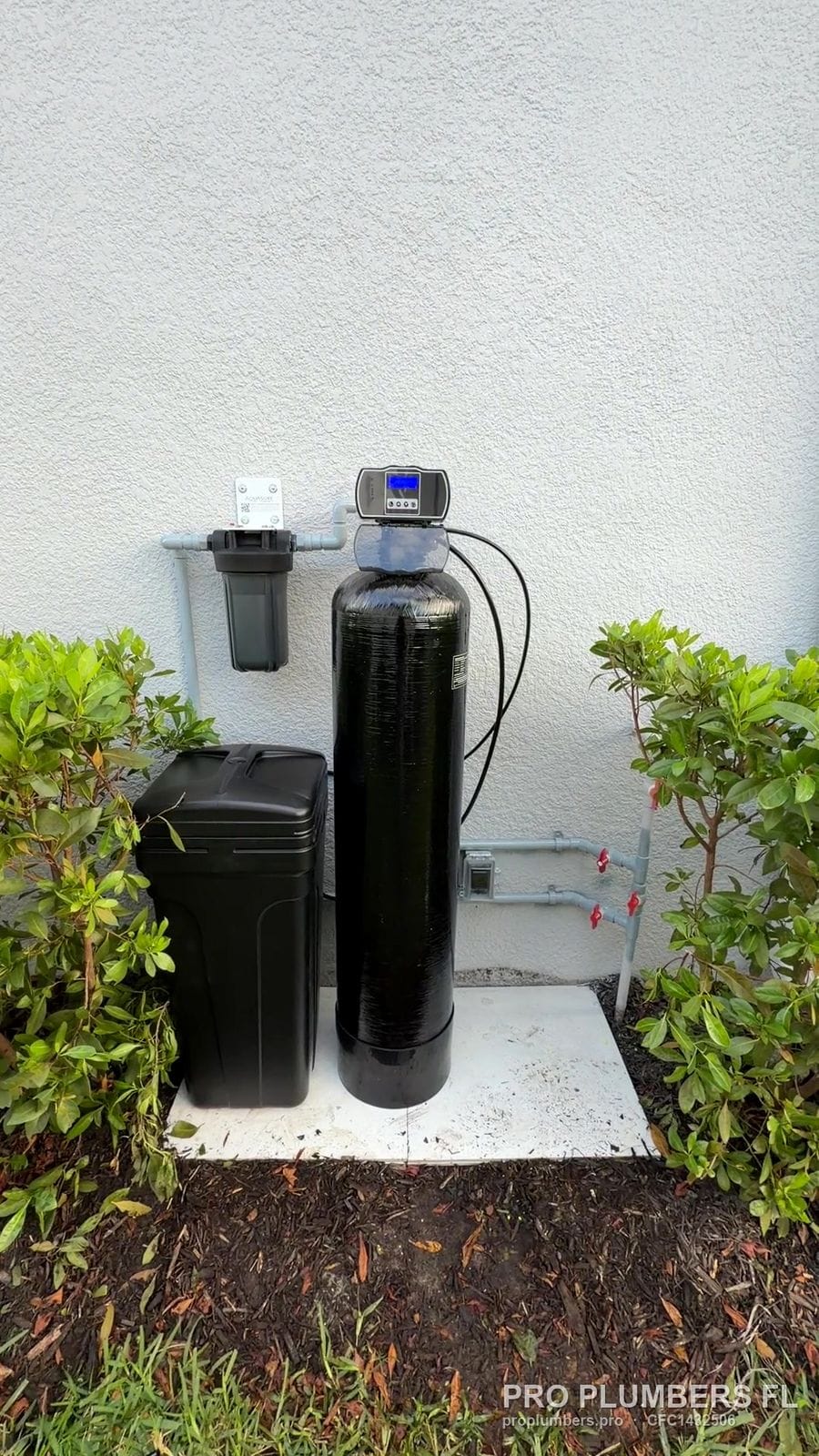

The photograph at the top of this page is our own outdoor installation in Sarasota. We install softeners and control valves across Tampa Bay, including units you bought yourself. How often the resin should regenerate, and why a softener needs a prefilter, are covered in our separate articles.

FAQ

Sources

We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.

1. [1]Florida Building Code, Plumbing, 8th Edition (2023) — Chapter 6, Water Supply and Distribution — Florida Building Commission / International Code Council · 2023Law / code · §608.4 water pumps, filters, softeners and other devices that treat potable water located to prevent contamination; overflow, relief valve and waste discharge pipes from them terminate through an air gap; §608.13 such devices protected against contamination; §611.4 waste or discharge from reverse osmosis or other types of water treatment units must enter the drainage system through an air gap or an equivalent backflow-prevention device; read 2026-10-18 in the Browser pane (plain fetch returns 403)
2. [2]Florida Building Code, Plumbing, 8th Edition (2023) — Chapter 8, Indirect/Special Waste — Florida Building Commission / International Code Council · 2023Law / code · §802.3 indirect waste piping discharges through an air gap or air break into a waste receptor; receptors trapped, vented and connected to the building drainage system; §802.3.1 air gap not less than twice the effective opening of the indirect waste pipe; §802.4 receptors not in concealed spaces, ready access; the chapter does not name softeners; read 2026-10-18 in the Browser pane
3. [3]Florida Building Code, Plumbing, 8th Edition (2023) — Chapter 3, General Regulations — Florida Building Commission / International Code Council · 2023Law / code · §305.4 water, soil and waste pipes not installed outside a building or in any place subjected to freezing temperatures unless protected from freezing by insulation or heat or both; read 2026-10-18 in the Browser pane
4. [4]Fleck 5600SXT Downflow Service Manual — PentairManufacturer's manual · Installation: uninterrupted AC supply, adapter not on a switched outlet; air gap on the drain line, 2× drain-line diameter, minimum 1 inch; installation locations: for dry locations only; always provide a bypass valve; unit cannot be subjected to freezing; tank level and on a firm base; floor clean and brine tank level; drain line ½ inch minimum, ¾ inch over 7 gpm or 20 ft; warm a cold valve to room temperature; start-up in bypass, then slowly to service; read 2026-10-18
5. [5]Fleck 7000SXT Service Manual — PentairManufacturer's manual · Do not install where temperatures may drop below 32 °F (0 °C) or above 125 °F (52 °C); do not place the unit in direct sunlight, black units absorb radiant heat increasing internal temperatures; install in compliance with state and municipal plumbing and electrical codes; always provide a bypass valve; cannot be subjected to freezing; read 2026-10-18
6. [6]Fleck 5810 & 5812 SXT Upflow/Downflow Service Manual — PentairManufacturer's manual · Do not install where temperatures may drop below 32 °F (0 °C) or above 52 °C (printed as 120 °F); do not place in direct sunlight, black units absorb radiant heat; air gap 2× drain-line diameter, minimum 1 inch; for dry locations only; always provide a bypass valve; cannot be subjected to freezing; read 2026-10-18
7. [7]WS1 Water Specialist Valve — specifications — Clack CorporationManufacturer's manual · manufacturer’s product page: IP54, IP55 with weather cover; operating temperatures 40–110 °F; options include bypass and weather cover; read 2026-10-18
8. [8]WS1 & WS1.25 Drawings and Service Manual (V3115-99) — Clack Corporation · 2025Manufacturer's manual · Allow one foot of clearance to service the valve; if the valve has been exposed to freezing let it warm to room temperature before running water through it; outlet must be uninterrupted, electrical connections to local codes; drain line ½ inch minimum, ¾ inch over 7 gpm or 20 ft; bypass isolates the control valve from system pressure for repairs or maintenance, four positions (normal, bypass, diagnostic, shut-off); read 2026-10-18
9. [9]Where to install water softener systems — Culligan · 2026Manufacturer's manual · manufacturer’s own guidance (published 2025-02-10, updated 2026-03-10): in warmer climates softeners are commonly outdoors; must be protected from extreme conditions, especially freezing; outdoor systems need evaluation, different control valve components, must be waterproof and withstand UV; needs a drain connection, a nearby electrical outlet, protection from dampness like rain if outdoors, and flat ground; read 2026-10-18
10. [10]FlowGuard Gold CPVC Installation Guide — Hot and Cold Water Plumbing Systems — WavinManufacturer's manual · cover CPVC with non-transparent material when stored outdoors, prolonged exposure to sunlight not advised; if CPVC is installed out of doors, apply latex paint to it; read 2026-10-18
11. [11]Drinking Water Treatment: Water Softening (Ion Exchange), G1491 — Sharon O. Skipton, Bruce I. Dvorak · University of Nebraska–Lincoln Extension · 2014University extension · about 50 gallons of water to regenerate a softener; regeneration places additional load on a septic system; hardness flushed out with wastewater; softeners must be correctly installed and monitored; read 2026-10-18
