Prefilter, Carbon, Softener, Post-Filter: Why the Order Matters
A softener needs a prefilter because grit is what wrecks its control valve: the manufacturer’s troubleshooting table traces plugged inlets, a drain that never stops running and internal leaks to foreign material in the valve [4]. It needs a post-filter because a clear housing shows you what the system is delivering and stops resin or carbon from reaching your fixtures if something inside a tank fails [3]. On city water in Clearwater, Tampa and across Tampa Bay the order is sediment prefilter → carbon → softener → post-filter, with carbon ahead of the softener because free chlorine shortens resin life [3] — all on a bypass, so the house keeps its water during service [4].
In what order do a sediment filter, carbon tank and softener go?
Sediment filter first, then activated carbon, then the softener, then a post-filter. Each stage protects the one after it, and getting the order wrong makes the most expensive part do the cheapest part’s job.
The University of Nebraska–Lincoln Extension says it plainly for carbon: a sediment filter installed ahead of it prolongs its life, because sediment quickly clogs the carbon’s pores [1]. The same extension service says sediment also reduces a softener’s effectiveness, and that water should be tested and proper pre-softening equipment installed where it is needed [2].
Do I need a sediment prefilter before my water softener?
Yes, on almost any supply. Sediment reduces a softener’s effectiveness [2], and foreign material in the control valve is behind several of the faults in the manufacturer’s own troubleshooting table [4]. A prefilter is the cheapest part of the system and it guards the most expensive one.
The tanks are the visible part of a softener. The part that actually fails is on top: the control valve. Inside it a piston moves through a stack of seals and spacers every time the softener regenerates, switching the water between service, backwash, brine draw and rinse. Those seals are made to slide against clean water.
Read the troubleshooting table in the service manual for one of the most common residential valves, the Fleck 5600SXT, and foreign material comes up again and again. A loss of pressure can be the inlet of the control plugged with material broken loose from the pipes. A drain that runs continuously can be foreign material in the control. A brine tank that overfills can be foreign material in the brine valve. And the repair for an internal leak is new seals, spacers and piston [4].
That is the whole case for a prefilter in one table. Sand, rust flakes, scale and the debris that comes loose after any work on the city main are exactly the particles that score a seal. A scored seal leaks, a leaking valve wastes water to the drain or lets hard water through, and the owner is told the softener has failed.
- Foreign material plugging the control inlet → loss of pressure [4]
- Foreign material in the control → drain runs continuously [4]
- Foreign material in the brine valve → excess water in the brine tank [4]
- Internal leak → seals, spacers and piston replaced [4]
Why do some water softeners fail after only a few years?
One cause we see often is simple: the softener had no prefilter in front of it, so everything the pipes carried went straight into the valve and the resin. Some installers leave the prefilter out to keep the job small. It is the cheapest part of the system, and it is the part that protects the most expensive one.
We do not install a softener on city water without a sediment stage ahead of it, and we put the housing where the owner can see and reach it, with bypass valves so the house keeps its water while a cartridge is changed.
Should the carbon filter go before or after the softener?
Before. Carbon removes the chlorine that would otherwise reach the softener resin, and chlorine is what shortens resin life [1][3].
City water reaches the house carrying a disinfectant on purpose — that is what keeps it safe in the mains. Activated carbon removes chlorine and chloramine [1]; a softener does not remove either, and it does not remove microbial contaminants either [2]. Pinellas County Utilities uses chloramine, and its own FAQ notes that granular activated carbon can remove it only with enough contact time [6] — so on that water the carbon is sized for the flow of the house.
The reason carbon goes first is the resin. DuPont’s manual for its softening resins explains that an oxidizing environment shortens resin life by attacking the polymer crosslinks that hold each bead together, that free chlorine is one of the most common oxidants in water treatment, and that the damage is additive: more chlorine, shorter life. Its own example is a standard resin with a ten-year life at the recommended chlorine level falling to about six years if the chlorine is five times higher [3].
The same table sets the recommended maximum free chlorine lower as the water gets warmer — for a standard resin, below 0.1 ppm in the warmest band it lists, 70–85°F [3]. Tap water in Florida is warm much of the year, so a softener here meets chlorine in the conditions the resin tolerates least. Put the carbon first and the resin never has to.
What is a post-filter after a water softener for?
Two things: it lets you see what the system is delivering, and it is the last barrier if resin or carbon escapes from a tank.
The last housing in the chain does two jobs, and the first one is simply being able to see. In a clear housing you can look at the cartridge and know what the system upstream is doing — whether the water arriving at it is clean, or whether something is getting through that should not be.
The second job is the one nobody thinks about until it matters. A softener is a tank of resin beads and a carbon tank is a tank of granules, held in by a distributor and a control valve. The resin manufacturer’s own troubleshooting advice for a sudden loss of resin is to check the vessel and the distribution system for leaks [3], and a cracked distributor tube is one of the faults in the Fleck manual [4]. When that happens, media leaves the tank. With a post-filter it stops in a housing you can open and clean. Without one, it goes into the aerators, the shower valves and the water heater.
That is our practice, not a requirement of any standard, and we say so. But for the price of a housing and a cartridge it turns a failure inside a tank from a whole-house problem into a cartridge change.
Why does a treatment system need a bypass, and can it shut the water off by itself?
A bypass lets the house keep its water while any part of the system is serviced or repaired. And yes — an automatic actuator on the main ball valve can close the water to the whole house when a leak probe gets wet [7].

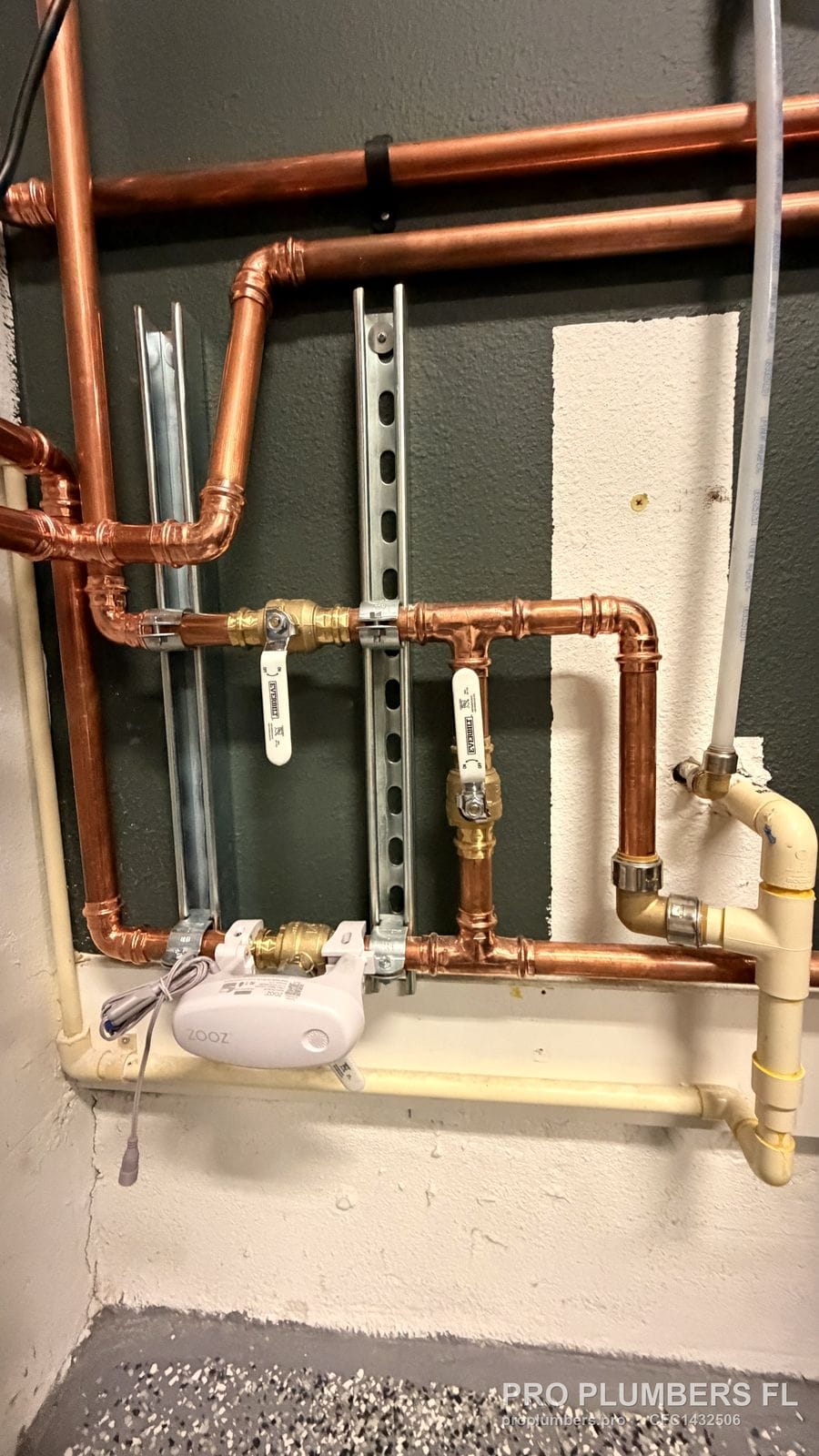

Every system we install sits on a bypass: a set of valves that lets the water go around the treatment instead of through it. Close the valves into and out of the system, open the bypass, and the house stays in water while a cartridge is changed, a tank is serviced or a control valve is repaired. The Fleck manual relies on the bypass the same way — the softener is started up from it — and lists an open bypass as the first thing to check when hard water shows up at the taps [4].
Without one, every service visit means shutting off the whole house, and a failure inside the softener leaves the family without water until it is fixed. With one, it is a matter of turning the handles. We build ours from press-fit copper with quarter-turn ball valves, fixed to strut on the wall where the owner can reach them — the frame below is this Dunedin system.
The same spot is the natural place for an automatic shutoff. On this job the main ball valve carries a motorised actuator — a Zooz Titan, readable in the photograph. Its manual describes it as an automatic shut-off for the main water valve: the leak probe that comes with it closes the valve whenever it detects water, without needing a smart-home hub, and leak sensors on a Z-Wave hub can trigger it as well. It fits ball valves only, not gate valves, and plugs into an ordinary 120 V outlet, so it needs power nearby [7].
We can add one to an existing main ball valve or build it into a new system, and we put the probe where a leak would show first — beside the treatment equipment or the water heater. It does not replace a shutoff you can turn by hand; it is there for the leak that starts when nobody is home.
Does a filter and softener system make tap water safe to drink?
Not by itself, and we will not claim it does. It makes water clear, takes out the chlorine taste and smell and stops scale; drinking-water health contaminants need a test and a stage certified for them [5].
A sediment, carbon and softener train gives you water that is clear, without the chlorine taste and smell at every tap and shower, and without the scale that builds up in a water heater and on glass [1][2]. It protects the equipment in the house, and it protects itself.
The CDC’s advice is to test the water and choose treatment for the specific contaminants you are concerned about, and it notes that a whole-house filter that removes chlorine can let more germs grow in the plumbing after it [5]. So for drinking and cooking water we start from your utility’s report or a test, and where a health contaminant is the concern we add a point-of-use unit certified for it at the kitchen tap. And a house with whole-house carbon should keep its water moving — an unused guest bathroom is worth running now and then.
What this means in Clearwater, Tampa and across Tampa Bay
Most homes we work on in Clearwater, Dunedin, Largo, Tampa and the rest of Tampa Bay are on utility water that carries chlorine or chloramine and is hard — which is exactly the case where all four stages earn their place. Pipes here are often old galvanized, cast iron or copper that sheds scale, and every repair on a street main stirs up more. That material ends up in whatever is first in line.

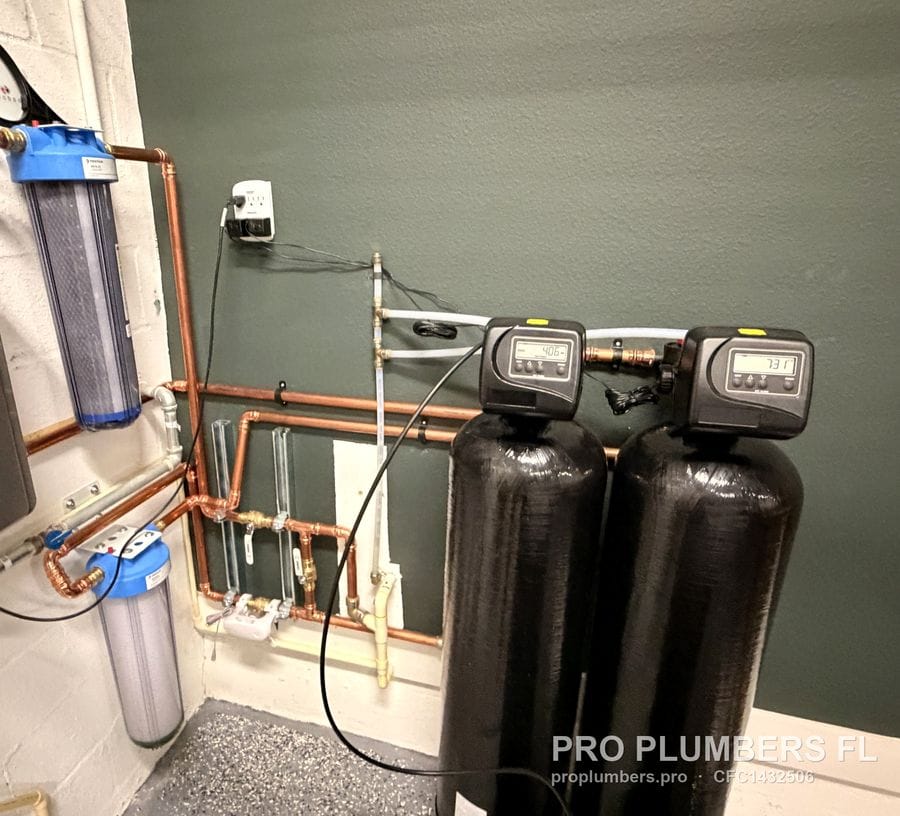

The system in these photographs, in Dunedin, is built the way we build them: a 20-inch sediment housing first, then a carbon tank, then the softener, then a second 20-inch housing as the post-filter, all on press-fit copper with a bypass so the house never loses water during service. If you already have a softener without a prefilter, adding one in front of it is usually the most useful single change you can make.
We look at what is installed, test what matters, and add the stage that protects the rest — in Clearwater, Tampa and across Tampa Bay.
Call 727-470-7126FAQ
Does a water softener need a prefilter?
On almost any water supply, yes. Sediment reduces a softener’s effectiveness, and foreign material in the control valve is behind several of the faults in the manufacturer’s troubleshooting table, from a plugged inlet to internal leaks that need new seals and a new piston [2][4].
Should the carbon filter go before or after the softener?
Before. Carbon removes chlorine [1], and free chlorine shortens softener resin life by attacking the crosslinks in the beads; the resin manufacturer’s own example is a ten-year resin life falling to about six years at five times the chlorine [3].
What is a post-filter after a softener for?
Two things. A clear housing lets you see what the system is delivering, and it catches resin or carbon media if a part inside a tank fails, so it ends up in a cartridge rather than in your fixtures and water heater. That is our practice rather than a code requirement.
Why are there small yellow or amber beads in my faucet aerator?
That is usually softener resin that has left the tank — most often through a failed distributor or a crack inside. The resin manufacturer’s advice for a sudden loss of resin is to check the vessel and distribution system for leaks [3]. The softener needs repair, and a post-filter after it keeps beads out of aerators and the water heater next time.
What micron sediment filter should go before a softener?
There is no single right number. Coarse ratings (20–50 micron) suit water with visible grit and clog less often; finer ratings (5–10 micron) catch silt and rust but cost more pressure and need changing sooner. Our article on micron ratings explains nominal versus absolute ratings.
Does this system make my water safe to drink?
It makes water clear, removes the chlorine taste and smell and stops scale, but it is not a health-effect treatment by itself. The CDC advises testing and choosing treatment for the specific contaminant you are concerned about [5]; for drinking water we add a certified point-of-use unit where a test shows the need.
Why did my softener fail after only a few years?
There are several possible causes, but one we see often is a system installed with no prefilter, so sediment went straight into the control valve. Scored seals leak, and the valve either wastes water to the drain or lets hard water through [4].
Why does a water treatment system need a bypass?
So the house keeps its water while a cartridge is changed or a tank or control valve is serviced, and so a failure inside the system does not leave the house dry. The softener manual uses the bypass for start-up and names an open bypass as the first check when hard water appears [4]. We can also fit an automatic actuator on the main ball valve that closes the water when its leak probe gets wet [7].
Sources
We review and cite. We do not reproduce a paper or a manual — follow the links for the originals.
- [1]Drinking Water Treatment: Activated Carbon Filtration (G1489) — Bruce I. Dvorak, Sharon O. Skipton · University of Nebraska–Lincoln Extension · revised 2013University extension · carbon removes chlorine, chloramines and some byproducts; does not remove hardness or microbes; a sediment filter ahead of carbon prolongs its life; saturation can occur before any pressure change; read 2026-10-11
- [2]Drinking Water Treatment: Water Softening (Ion Exchange) (G1491) — Sharon O. Skipton, Bruce I. Dvorak · University of Nebraska–Lincoln Extension · revised 2014University extension · softening does not remove bacteria; hardness forms scale in water heaters; sediment reduces softener effectiveness; test and install pre-softening equipment where needed; read 2026-10-11
- [3]AmberLite Ion Exchange Resins — Water Conditioning Manual (Form No. 45-D01951-en, Rev. 2) — DuPont Water Solutions · 2025Manufacturer's manual · §10.6.2 Oxidation: free chlorine attacks crosslinks; Table 18 recommended maximum free chlorine by temperature (standard gel < 0.1 ppm at 70–85°F); effect additive, 10-year life → about 6 years at 5× chlorine; §4.5 supply the softener with clean water; read 2026-10-11
- [4]Fleck 5600SXT Downflow Service Manual — PentairManufacturer's manual · troubleshooting table: control inlet plugged by foreign material from the pipes; foreign material in control and brine valve; internal leaks repaired with seals, spacers and piston; cracked distributor tube; read 2026-10-11
- [5]About Choosing Home Water Filters — US Centers for Disease Control and Prevention · 2024Government or standards body · test first and choose treatment for the specific contaminant; a whole-home filter that removes chlorine may let more germs grow in the plumbing; read 2026-10-11
- [6]Frequently Asked Questions About Chloramines — Pinellas County UtilitiesGovernment or standards body · chloramine in use; GAC may remove it with enough contact time; read for PG-040 on 2026-10-01
- [7]Titan Water Valve Actuator ZAC36 LR — User Manual — Zooz · 2025Manufacturer's manual · automatic shut-off actuator for the main water valve; included leak probe closes the valve when a leak is detected, hub optional; ball valves only, not gate valves; 12 V DC adapter into a 120 V receptacle; read 2026-10-11
